2N1893

2N1893 Overview

Product belongs to the 2N1893 series. Bulk is the packaging method for this product The BK is listed as a Part-Aliase. Through Hole Mounting-Style TO-39 Configuration Single Power-off control: 0.8 W Maximum operating temperature of + 150 C Minimum operating temperature: - 65 C Rated VCEO up to 80 V The transistor polarity is NPN. Saturation voltage between collector and emitter is 1.2 V The 120 V voltage rating is 40 V. 7 V rating of 5 V Max DC collector current: 0.5 A Gain-Bandwidth-Product: 50 MHz This product is capable of handling a 0.45 A continuous collector current. Minimum hfe for DC collector-base gain is 20.

2N1893 Image

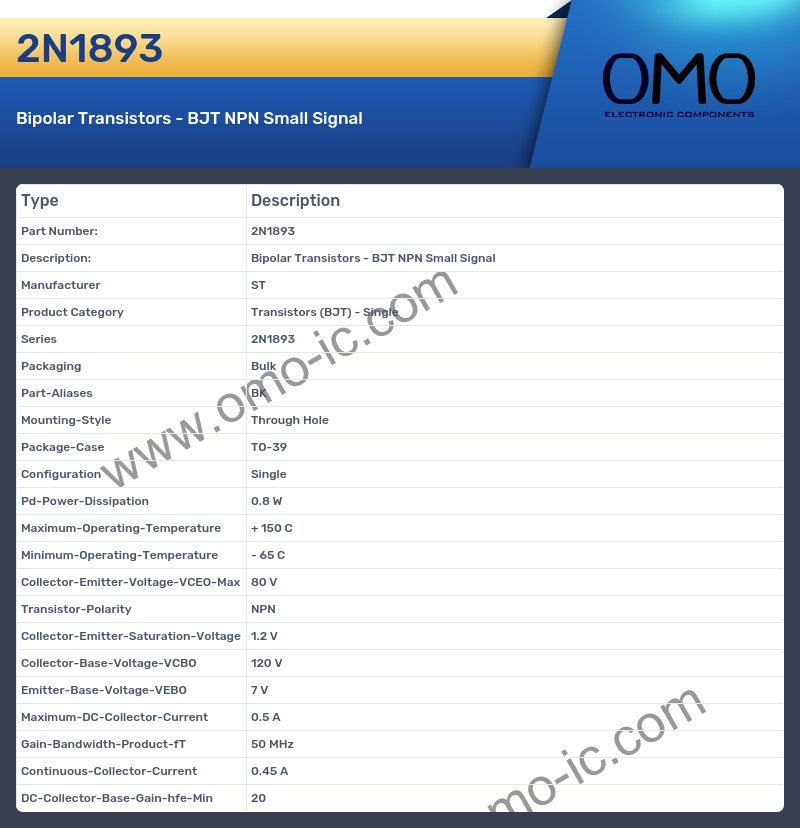

2N1893 Specifications

• Manufacturer ST
• Product Category Transistors (BJT) - Single
• Series 2N1893
• Packaging Bulk
• Part-Aliases BK
• Mounting-Style Through Hole
• Package-Case TO-39
• Configuration Single
• Pd-Power-Dissipation 0.8 W
• Maximum-Operating-Temperature + 150 C
• Minimum-Operating-Temperature - 65 C
• Collector-Emitter-Voltage-VCEO-Max 80 V
• Transistor-Polarity NPN
• Collector-Emitter-Saturation-Voltage 1.2 V
• Collector-Base-Voltage-VCBO 120 V
• Emitter-Base-Voltage-VEBO 7 V
• Maximum-DC-Collector-Current 0.5 A
• Gain-Bandwidth-Product-fT 50 MHz
• Continuous-Collector-Current 0.45 A
• DC-Collector-Base-Gain-hfe-Min 20
