74ACT11074DBR

74ACT11074DBR Overview

Product belongs to the 74ACT series. Type: D-Type Digi-ReelR Alternate Packaging is the packaging method for this product Weight of 0.004296 oz SMD/SMT Mounting-Style SSOP-14 The TTL for this product is CMOS/TTL. Operational temperature range: -40°C ~ 85°C (TA) Surface Mount mounting type Output-Type: Differential Product function is Set(Preset) and Reset. Voltage Supply Range: 4.5 V ~ 5.5 V 2 is 8. 125MHz is 26GHz. 2 element D-Type Flip-Flop logic type 1 bits per element Positive Edge trigger type Maximum operating temperature of + 85 C Minimum operating temperature: - 40 C Polarity: Inverting/Non-Inverting Maximum supply voltage of 5.5 V Minimum supply voltage is 4.5 V ACT logic type 8.5 ns is 23 microseconds. High-Level-Output-Current of - 24 mA 24 mA low-level output current Number-of-Input-Lines: 1 Number-of-Output-Lines: 1

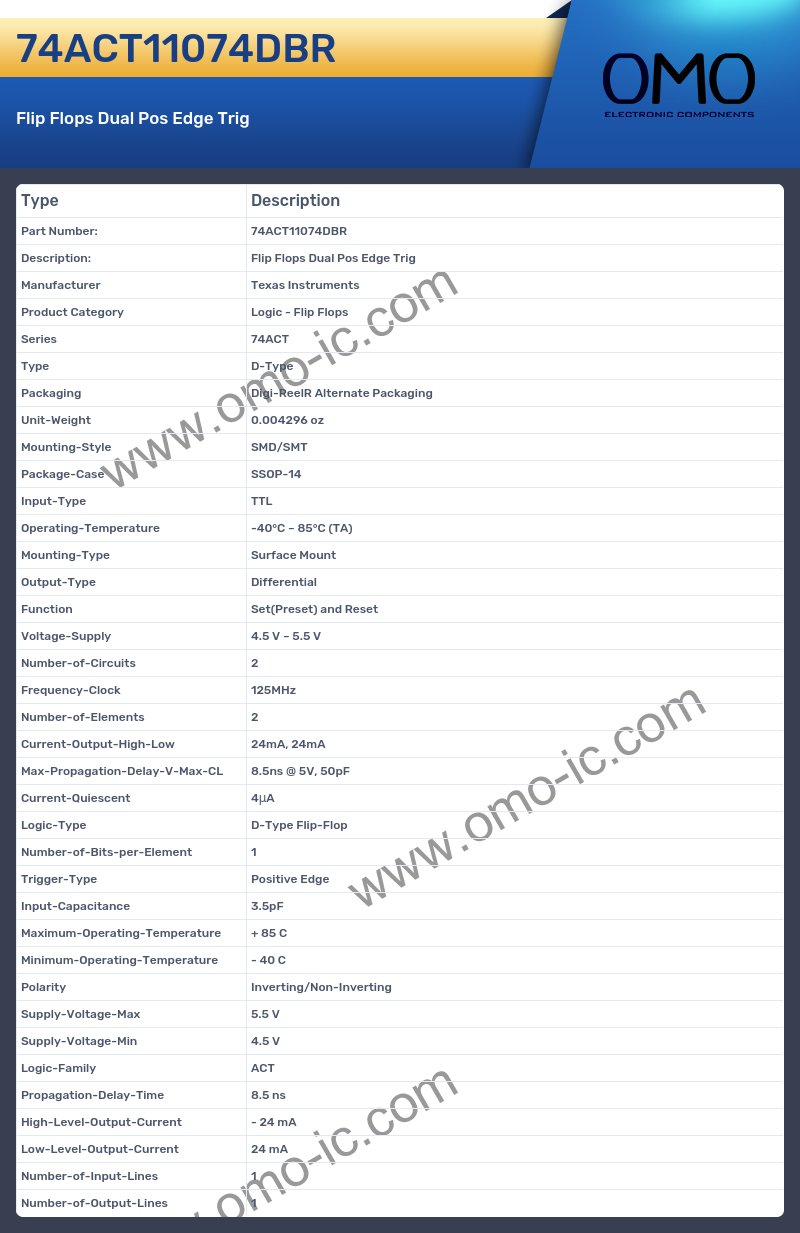

74ACT11074DBR Image

74ACT11074DBR Specifications

• Manufacturer Texas Instruments
• Product Category Logic - Flip Flops
• Series 74ACT
• Type D-Type
• Packaging Digi-ReelR Alternate Packaging
• Unit-Weight 0.004296 oz
• Mounting-Style SMD/SMT
• Package-Case SSOP-14
• Input-Type TTL
• Operating-Temperature -40°C ~ 85°C (TA)
• Mounting-Type Surface Mount
• Output-Type Differential
• Function Set(Preset) and Reset
• Voltage-Supply 4.5 V ~ 5.5 V
• Number-of-Circuits 2
• Frequency-Clock 125MHz
• Number-of-Elements 2
• Current-Output-High-Low 24mA, 24mA
• Max-Propagation-Delay-V-Max-CL 8.5ns @ 5V, 50pF
• Current-Quiescent 4μA
• Logic-Type D-Type Flip-Flop
• Number-of-Bits-per-Element 1
• Trigger-Type Positive Edge
• Input-Capacitance 3.5pF
• Maximum-Operating-Temperature + 85 C
• Minimum-Operating-Temperature - 40 C
• Polarity Inverting/Non-Inverting
• Supply-Voltage-Max 5.5 V
• Supply-Voltage-Min 4.5 V
• Logic-Family ACT
• Propagation-Delay-Time 8.5 ns
• High-Level-Output-Current - 24 mA
• Low-Level-Output-Current 24 mA
• Number-of-Input-Lines 1
• Number-of-Output-Lines 1
