| Mfr. #: | 74LCX125MTR |
|---|---|
| Manufacturer: | STMicroelectronics |
| Description: | IC BUFFER NON-INVERT 3.6V 14SO |
| Lifecycle: | New from this manufacturer. |
| Datasheet: | 74LCX125MTR Datasheet |
Product belongs to the 74LCX series. Digi-ReelR Alternate Packaging is the packaging method for this product Weight of 0.008501 oz SMD/SMT Mounting-Style SOP-14 Operational temperature range: -40°C ~ 85°C Surface Mount mounting type Output-Type: 3-State Number of channels: 4 Voltage Supply Range: 2 V ~ 3.6 V Supplier device package: 14-SO 4 element Buffer/Line Driver, Non-Inverting logic type 1 bits per element Maximum operating temperature of + 85 C Minimum operating temperature: - 40 C Polarity: Non-Inverting Maximum supply voltage of 3.6 V Minimum supply voltage is 2 V LCX logic type 6 ns at 2.7 V 5.2 ns at 3 V to 3.6 V is 23 microseconds. High-Level-Output-Current of - 24 mA 24 mA low-level output current Number-of-Input-Lines: 4 Input Number-of-Output-Lines: 3 Output
Image shown is a representation only. Exact specifications should be obtained from the product data sheet.

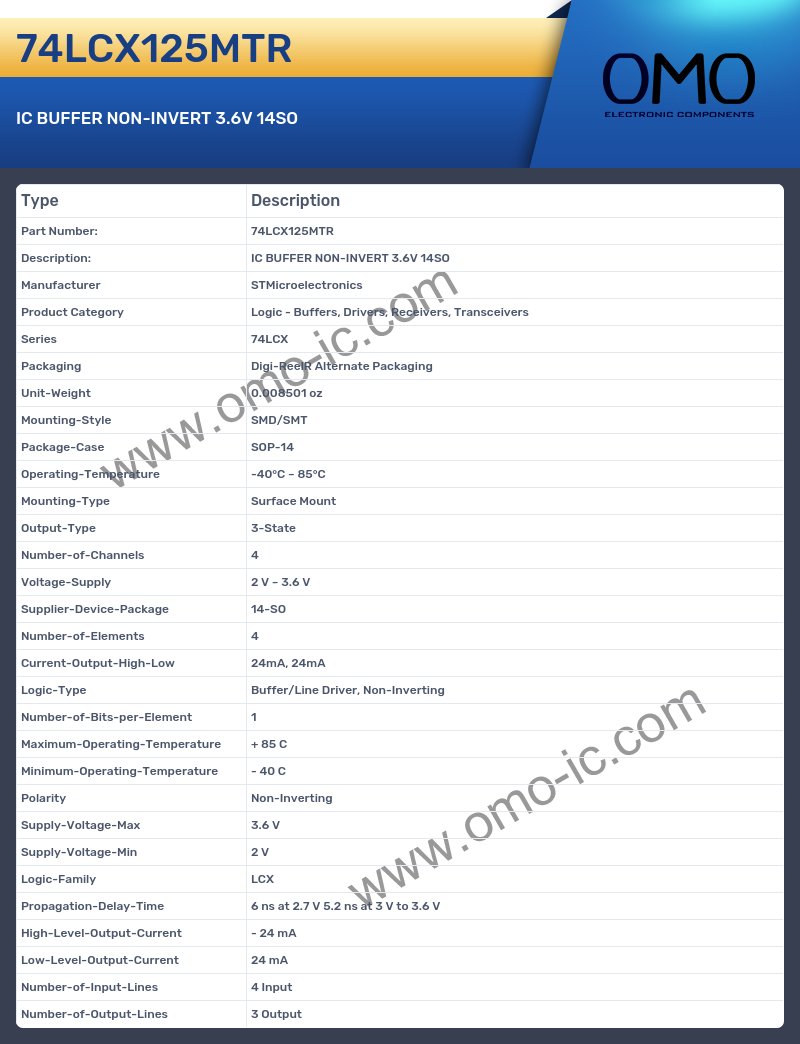

74LCX125MTR Specifications
