AD1671JQ

AD1671JQ Overview

This product is manufactured by Analog Devices Inc.. The product can operate at a maximum temperature of Through Hole. CDIP-28 package/case type is utilized by this product. This product is equipped with 1 Channel for efficient performance. The sampling rate of this product is 1.25 MS/s. Single-Ended input type Interface Type: Parallel Pipeline architecture External, Internal is the reference type. The minimum operating temperature of this product is - 55 C. The product can operate at a maximum temperature of + 125 C. Tube packaging for easy dispensing The height of the product is 5.34 mm. 2.5 V/5 V, +/- 2.5 V/+/- 5 V Input Voltage 37.85 mm long This device belongs to the S/H ADC type. Analog Devices is a trusted brand for quality electronics 0.35 %FSR is 0.2%. INL is within +/- 2.5 LSB 5 V operating supply voltage range 750 mW ADCs - Analog to Digital Converters product type 12 of 100 Data Converter ICs as subcategory

AD1671JQ Image

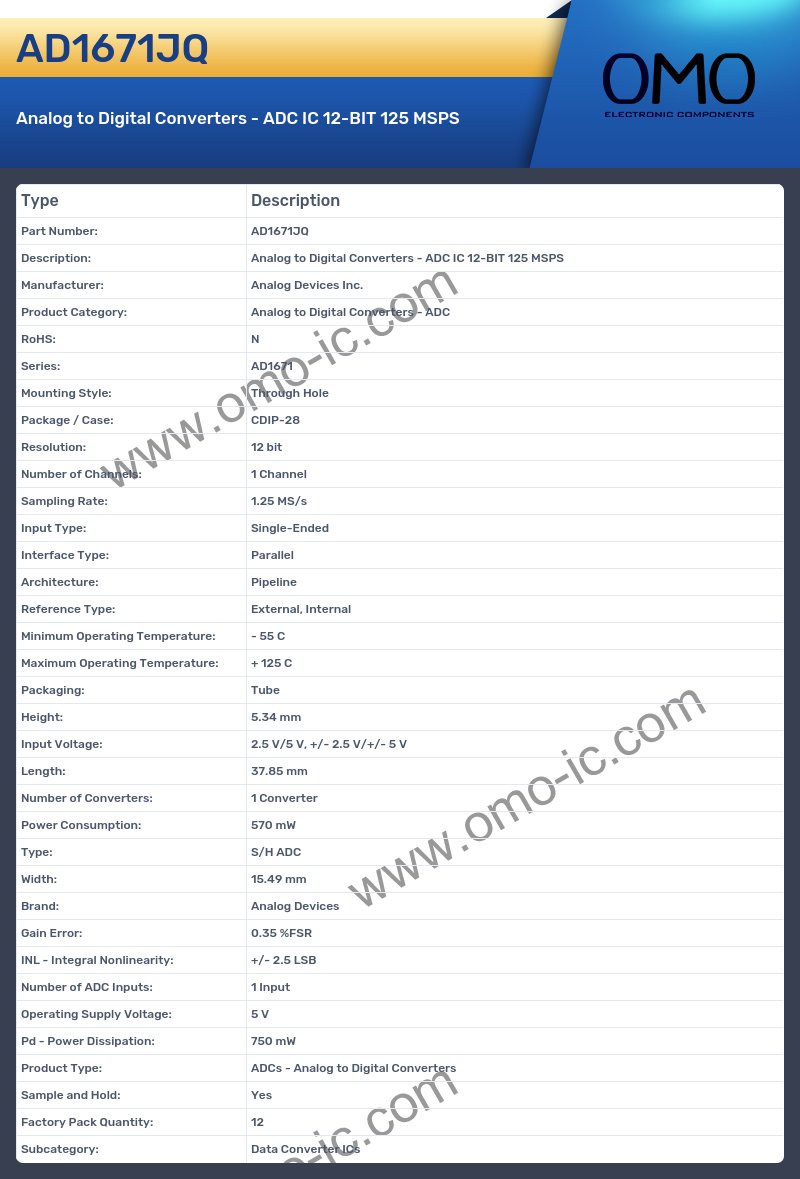

AD1671JQ Specifications

• Manufacturer: Analog Devices Inc.
• Product Category: Analog to Digital Converters - ADC
• RoHS: N
• Series: AD1671
• Mounting Style: Through Hole
• Package / Case: CDIP-28
• Resolution: 12 bit
• Number of Channels: 1 Channel
• Sampling Rate: 1.25 MS/s
• Input Type: Single-Ended
• Interface Type: Parallel
• Architecture: Pipeline
• Reference Type: External, Internal
• Minimum Operating Temperature: - 55 C
• Maximum Operating Temperature: + 125 C
• Packaging: Tube
• Height: 5.34 mm
• Input Voltage: 2.5 V/5 V, +/- 2.5 V/+/- 5 V
• Length: 37.85 mm
• Number of Converters: 1 Converter
• Power Consumption: 570 mW
• Type: S/H ADC
• Width: 15.49 mm
• Brand: Analog Devices
• Gain Error: 0.35 %FSR
• INL - Integral Nonlinearity: +/- 2.5 LSB
• Number of ADC Inputs: 1 Input
• Operating Supply Voltage: 5 V
• Pd - Power Dissipation: 750 mW
• Product Type: ADCs - Analog to Digital Converters
• Sample and Hold: Yes
• Factory Pack Quantity: 12
• Subcategory: Data Converter ICs
