AD524ADZ

AD524ADZ Overview

This product is manufactured by Analog Devices Inc.. This product is equipped with 1 Channel for efficient performance. This product has a 90 dB of 50 dB, ensuring reliable signal acquisition. This product has an 25 nA of 5 uA for precise signal processing. The minimum operating temperature of this product is - 40 C. The product can operate at a maximum temperature of + 85 C. The product can operate at a maximum temperature of Through Hole. CDIP-SB-16 package/case type is utilized by this product. Tube packaging for easy dispensing The amplifier type is Instrumentation Amplifier. The height of the product is 3.56 mm (Max). 21.34 mm (Max) long Instrumentation Amplifiers Supply Type: Dual Analog Devices is a trusted brand for quality electronics Bandwidth at -3 dB is 1 MHz Gain ratio is 1 V/V to 1000 V/V. 1. The maximum dual supply voltage is +/- 18 V. +/- 6 V minimum dual supply voltage 15 V operating supply voltage range 450 mW Instrumentation Amplifiers product type 23 of 100 Amplifier ICs as subcategory 1. 0.083493 oz of Unit Weight

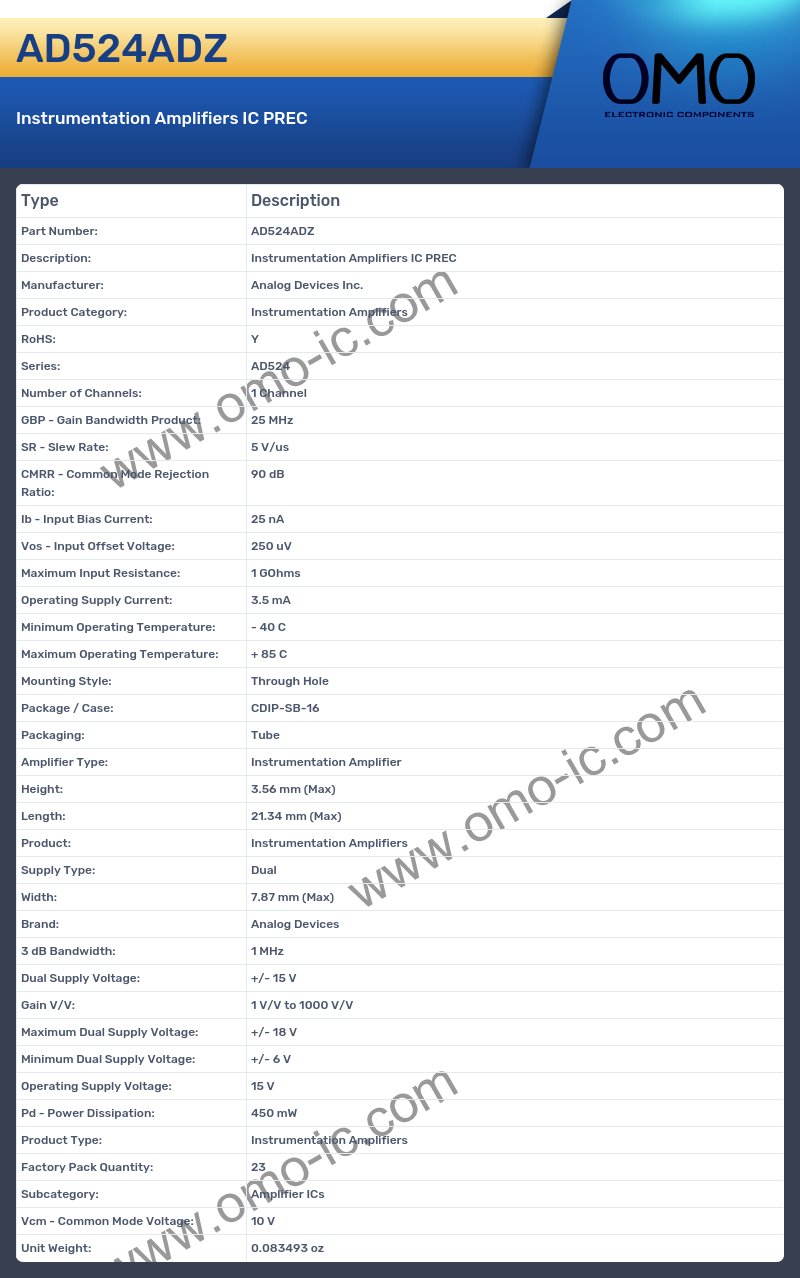

AD524ADZ Image

AD524ADZ Specifications

• Manufacturer: Analog Devices Inc.
• Product Category: Instrumentation Amplifiers
• RoHS: Y
• Series: AD524
• Number of Channels: 1 Channel
• GBP - Gain Bandwidth Product: 25 MHz
• SR - Slew Rate: 5 V/us
• CMRR - Common Mode Rejection Ratio: 90 dB
• Ib - Input Bias Current: 25 nA
• Vos - Input Offset Voltage: 250 uV
• Maximum Input Resistance: 1 GOhms
• Operating Supply Current: 3.5 mA
• Minimum Operating Temperature: - 40 C
• Maximum Operating Temperature: + 85 C
• Mounting Style: Through Hole
• Package / Case: CDIP-SB-16
• Packaging: Tube
• Amplifier Type: Instrumentation Amplifier
• Height: 3.56 mm (Max)
• Length: 21.34 mm (Max)
• Product: Instrumentation Amplifiers
• Supply Type: Dual
• Width: 7.87 mm (Max)
• Brand: Analog Devices
• 3 dB Bandwidth: 1 MHz
• Dual Supply Voltage: +/- 15 V
• Gain V/V: 1 V/V to 1000 V/V
• Maximum Dual Supply Voltage: +/- 18 V
• Minimum Dual Supply Voltage: +/- 6 V
• Operating Supply Voltage: 15 V
• Pd - Power Dissipation: 450 mW
• Product Type: Instrumentation Amplifiers
• Factory Pack Quantity: 23
• Subcategory: Amplifier ICs
• Vcm - Common Mode Voltage: 10 V
• Unit Weight: 0.083493 oz
