AD548KNZ

AD548KNZ Overview

This product is manufactured by Analog Devices Inc.. The product can operate at a maximum temperature of Through Hole. PDIP-8 package/case type is utilized by this product. Supply Voltage - Max: 18 V This product is equipped with 1 Channel for efficient performance. This product has a 90 dB of 50 dB, ensuring reliable signal acquisition. This product has an 10 pA of 5 uA for precise signal processing. Supply Voltage - Min: 4.5 V The minimum operating temperature of this product is 0 C. The product can operate at a maximum temperature of + 70 C. This product does not have a No Shutdown feature, ensuring continuous operation. Tube packaging for easy dispensing The amplifier type is Voltage Feedback Amplifier. The height of the product is 3.43 mm. 9.27 mm long Operational Amplifiers Supply Type: Single This device belongs to the General Purpose Amplifier type. Analog Devices is a trusted brand for quality electronics The 0.0018 pA/sqrt Hz is 0.7 pA/rtHz. 1. The maximum dual supply voltage is +/- 18 V. +/- 4.5 V minimum dual supply voltage 500 mW (1/2 W) Op Amps - Operational Amplifiers product type This product has a 80 dB of 50 dB, providing reliable power supply noise rejection. 50 of 100 Amplifier ICs as subcategory 1. 0.032805 oz of Unit Weight

AD548KNZ Image

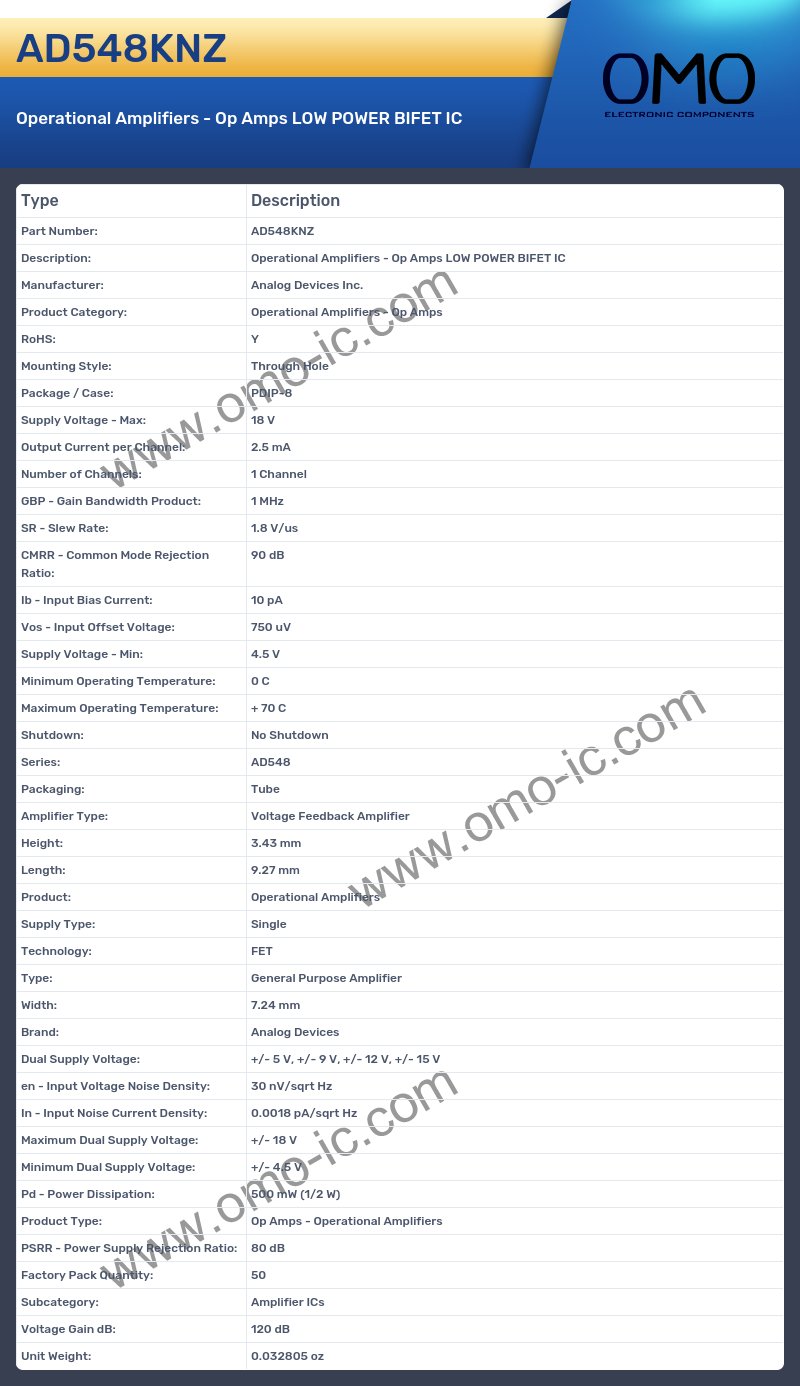

AD548KNZ Specifications

• Manufacturer: Analog Devices Inc.
• Product Category: Operational Amplifiers - Op Amps
• RoHS: Y
• Mounting Style: Through Hole
• Package / Case: PDIP-8
• Supply Voltage - Max: 18 V
• Output Current per Channel: 2.5 mA
• Number of Channels: 1 Channel
• GBP - Gain Bandwidth Product: 1 MHz
• SR - Slew Rate: 1.8 V/us
• CMRR - Common Mode Rejection Ratio: 90 dB
• Ib - Input Bias Current: 10 pA
• Vos - Input Offset Voltage: 750 uV
• Supply Voltage - Min: 4.5 V
• Minimum Operating Temperature: 0 C
• Maximum Operating Temperature: + 70 C
• Shutdown: No Shutdown
• Series: AD548
• Packaging: Tube
• Amplifier Type: Voltage Feedback Amplifier
• Height: 3.43 mm
• Length: 9.27 mm
• Product: Operational Amplifiers
• Supply Type: Single
• Technology: FET
• Type: General Purpose Amplifier
• Width: 7.24 mm
• Brand: Analog Devices
• Dual Supply Voltage: +/- 5 V, +/- 9 V, +/- 12 V, +/- 15 V
• en - Input Voltage Noise Density: 30 nV/sqrt Hz
• In - Input Noise Current Density: 0.0018 pA/sqrt Hz
• Maximum Dual Supply Voltage: +/- 18 V
• Minimum Dual Supply Voltage: +/- 4.5 V
• Pd - Power Dissipation: 500 mW (1/2 W)
• Product Type: Op Amps - Operational Amplifiers
• PSRR - Power Supply Rejection Ratio: 80 dB
• Factory Pack Quantity: 50
• Subcategory: Amplifier ICs
• Voltage Gain dB: 120 dB
• Unit Weight: 0.032805 oz
