AD7091R-5BCPZ

AD7091R-5BCPZ Overview

This product is manufactured by Analog Devices Inc.. The product can operate at a maximum temperature of SMD/SMT. LFCSP-20 package/case type is utilized by this product. This product is equipped with 4 Channel for efficient performance. The sampling rate of this product is 22.2 kS/s. Single-Ended input type Interface Type: 3-Wire, QSPI, SPI SAR architecture External, Internal is the reference type. This product requires an 2.7 V to 5.25 V for proper operation. The minimum operating temperature of this product is - 40 C. The product can operate at a maximum temperature of + 125 C. Tray packaging for easy dispensing The height of the product is 0.75 mm. 4 mm long This device belongs to the ADC type. Analog Devices is a trusted brand for quality electronics This product does not have a No Shutdown feature, ensuring continuous operation. The 0.3 LSB, ensuring accurate and precise analog-to-digital conversion. 0 % is 0.2%. INL is within +/- 0.8 LSB Yes regarding Moisture Sensitivity 130 uW ADCs - Analog to Digital Converters product type 490 of 100 Data Converter ICs as subcategory THD is as low as - 80 dB.

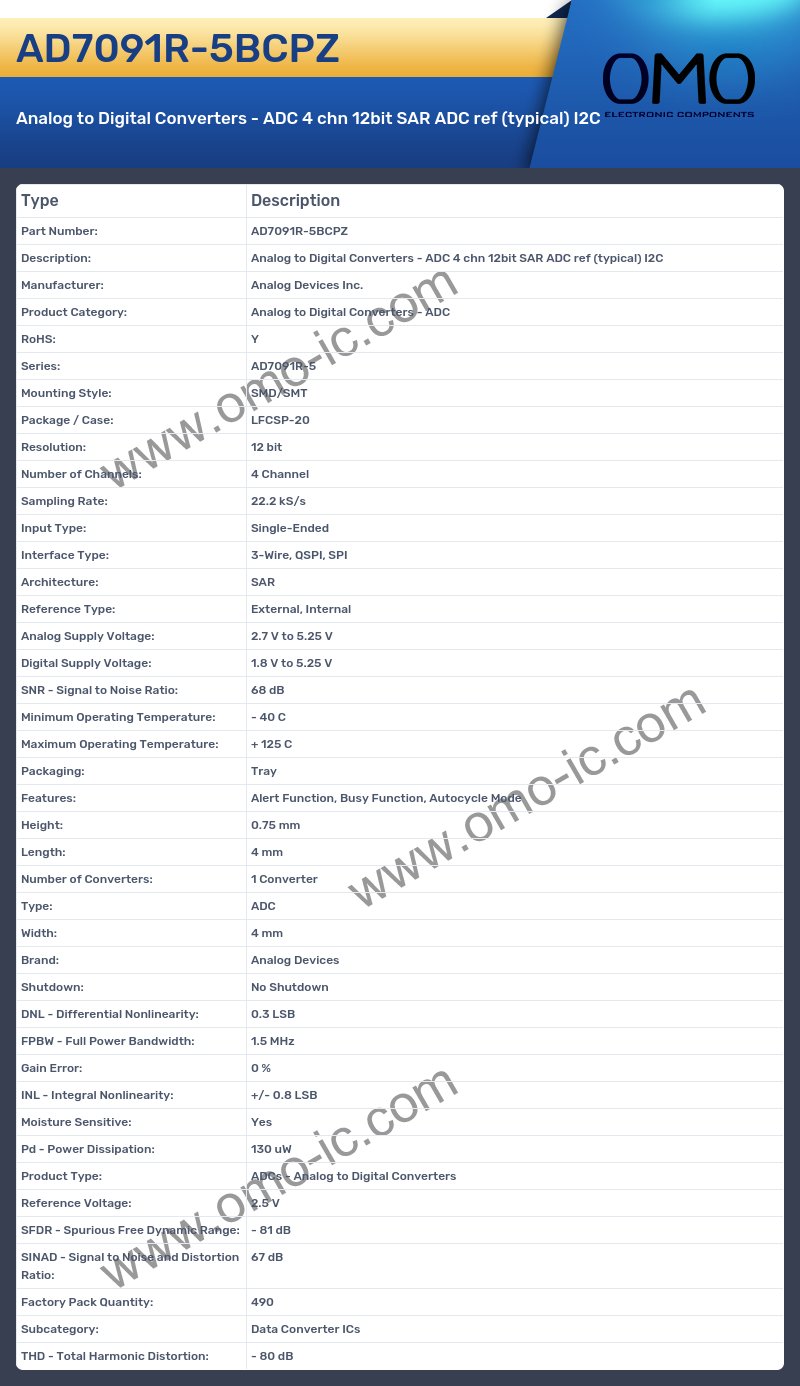

AD7091R-5BCPZ Image

AD7091R-5BCPZ Specifications

• Manufacturer: Analog Devices Inc.
• Product Category: Analog to Digital Converters - ADC
• RoHS: Y
• Series: AD7091R-5
• Mounting Style: SMD/SMT
• Package / Case: LFCSP-20
• Resolution: 12 bit
• Number of Channels: 4 Channel
• Sampling Rate: 22.2 kS/s
• Input Type: Single-Ended
• Interface Type: 3-Wire, QSPI, SPI
• Architecture: SAR
• Reference Type: External, Internal
• Analog Supply Voltage: 2.7 V to 5.25 V
• Digital Supply Voltage: 1.8 V to 5.25 V
• SNR - Signal to Noise Ratio: 68 dB
• Minimum Operating Temperature: - 40 C
• Maximum Operating Temperature: + 125 C
• Packaging: Tray
• Features: Alert Function, Busy Function, Autocycle Mode
• Height: 0.75 mm
• Length: 4 mm
• Number of Converters: 1 Converter
• Type: ADC
• Width: 4 mm
• Brand: Analog Devices
• Shutdown: No Shutdown
• DNL - Differential Nonlinearity: 0.3 LSB
• FPBW - Full Power Bandwidth: 1.5 MHz
• Gain Error: 0 %
• INL - Integral Nonlinearity: +/- 0.8 LSB
• Moisture Sensitive: Yes
• Pd - Power Dissipation: 130 uW
• Product Type: ADCs - Analog to Digital Converters
• Reference Voltage: 2.5 V
• SFDR - Spurious Free Dynamic Range: - 81 dB
• SINAD - Signal to Noise and Distortion Ratio: 67 dB
• Factory Pack Quantity: 490
• Subcategory: Data Converter ICs
• THD - Total Harmonic Distortion: - 80 dB
