AD7291BCPZ Overview

This product is manufactured by Analog Devices Inc.. The product can operate at a maximum temperature of SMD/SMT. LFCSP-20 package/case type is utilized by this product. This product is equipped with 9 Channel for efficient performance. The sampling rate of this product is 22.2 kS/s. Single-Ended input type Interface Type: I2C SAR architecture External, Internal is the reference type. This product requires an 2.8 V to 3.6 V for proper operation. The minimum operating temperature of this product is - 40 C. The product can operate at a maximum temperature of + 125 C. Tray packaging for easy dispensing The height of the product is 0.73 mm. 2.5 V Input Voltage 4 mm long This device belongs to the S/H ADC type. Analog Devices is a trusted brand for quality electronics EVAL-AD7291SDZ is a versatile development platform for hardware and software The +/- 0.99 LSB, ensuring accurate and precise analog-to-digital conversion. +/- 4 LSB is 0.2%. INL is within +/- 1 LSB Yes regarding Moisture Sensitivity 3.3 V operating supply voltage range 12.6 mW ADCs - Analog to Digital Converters product type 490 of 100 Data Converter ICs as subcategory 1. 1.411699 oz of Unit Weight

AD7291BCPZ Image

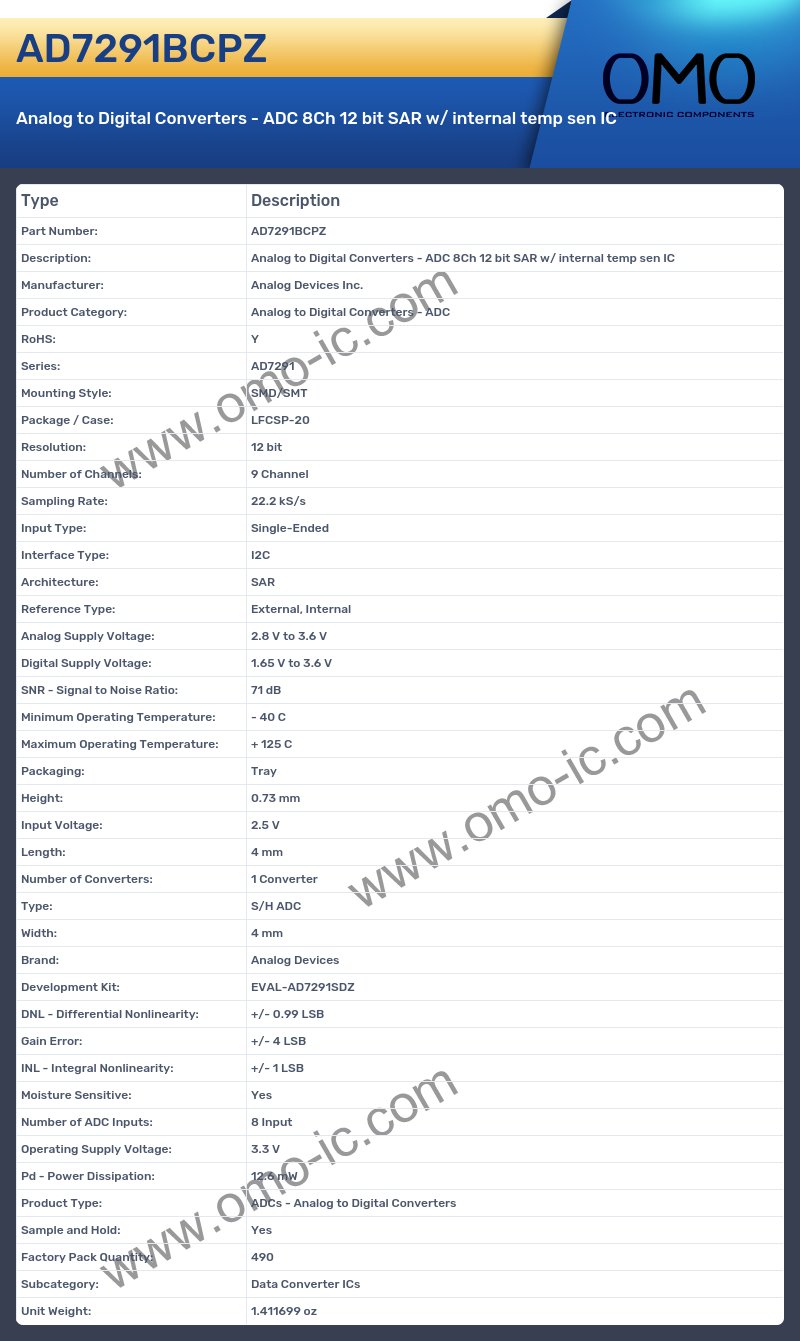

AD7291BCPZ Specifications

• Manufacturer: Analog Devices Inc.
• Product Category: Analog to Digital Converters - ADC
• RoHS: Y
• Series: AD7291
• Mounting Style: SMD/SMT
• Package / Case: LFCSP-20
• Resolution: 12 bit
• Number of Channels: 9 Channel
• Sampling Rate: 22.2 kS/s
• Input Type: Single-Ended
• Interface Type: I2C
• Architecture: SAR
• Reference Type: External, Internal
• Analog Supply Voltage: 2.8 V to 3.6 V
• Digital Supply Voltage: 1.65 V to 3.6 V
• SNR - Signal to Noise Ratio: 71 dB
• Minimum Operating Temperature: - 40 C
• Maximum Operating Temperature: + 125 C
• Packaging: Tray
• Height: 0.73 mm
• Input Voltage: 2.5 V
• Length: 4 mm
• Number of Converters: 1 Converter
• Type: S/H ADC
• Width: 4 mm
• Brand: Analog Devices
• Development Kit: EVAL-AD7291SDZ
• DNL - Differential Nonlinearity: +/- 0.99 LSB
• Gain Error: +/- 4 LSB
• INL - Integral Nonlinearity: +/- 1 LSB
• Moisture Sensitive: Yes
• Number of ADC Inputs: 8 Input
• Operating Supply Voltage: 3.3 V
• Pd - Power Dissipation: 12.6 mW
• Product Type: ADCs - Analog to Digital Converters
• Sample and Hold: Yes
• Factory Pack Quantity: 490
• Subcategory: Data Converter ICs
• Unit Weight: 1.411699 oz
