AD7306AN

AD7306AN Overview

This product is manufactured by Analog Devices Inc.. The product can operate at a maximum temperature of Through Hole. PDIP-24 package/case type is utilized by this product. t's a Transceiver The 100 kb/s data rate; 2 Receiver receivers Supply Voltage - Max: 5.25 V Supply Voltage - Min: 4.75 V The minimum operating temperature of this product is - 40 C. The product can operate at a maximum temperature of + 85 C. Tube packaging for easy dispensing The height of the product is 3.3 mm. 31.75 mm long The output type is Single-Ended, Differential. RS-232 Transceivers Supply Type: Single Supply Analog Devices is a trusted brand for quality electronics This product does not have a Without Shutdown feature, ensuring continuous operation. This product includes 1 Transceiver for efficient data transmission. 5 V operating supply voltage range RS-232 Interface IC product type RS-232, RS-422 protocol supported Single-Ended, Differential signal type for the receiver 15 of 100 Interface ICs as subcategory 1. 0.131925 oz of Unit Weight

AD7306AN Image

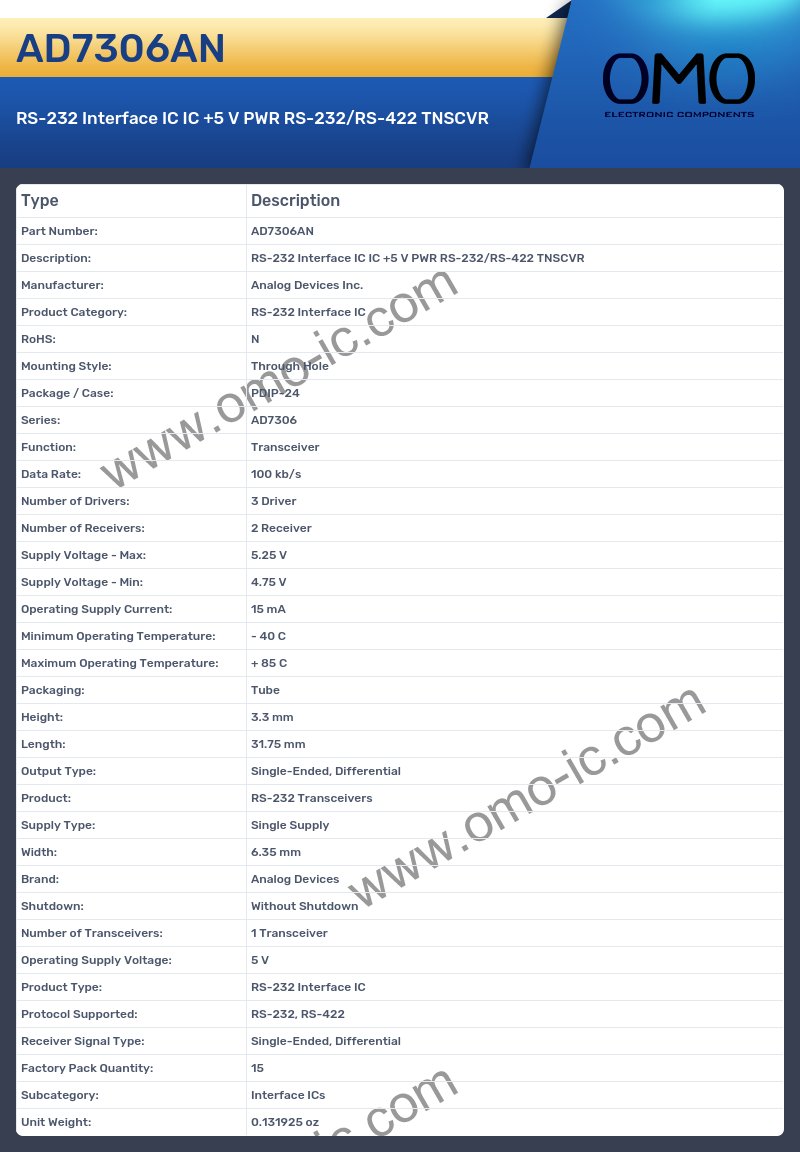

AD7306AN Specifications

• Manufacturer: Analog Devices Inc.
• Product Category: RS-232 Interface IC
• RoHS: N
• Mounting Style: Through Hole
• Package / Case: PDIP-24
• Series: AD7306
• Function: Transceiver
• Data Rate: 100 kb/s
• Number of Drivers: 3 Driver
• Number of Receivers: 2 Receiver
• Supply Voltage - Max: 5.25 V
• Supply Voltage - Min: 4.75 V
• Operating Supply Current: 15 mA
• Minimum Operating Temperature: - 40 C
• Maximum Operating Temperature: + 85 C
• Packaging: Tube
• Height: 3.3 mm
• Length: 31.75 mm
• Output Type: Single-Ended, Differential
• Product: RS-232 Transceivers
• Supply Type: Single Supply
• Width: 6.35 mm
• Brand: Analog Devices
• Shutdown: Without Shutdown
• Number of Transceivers: 1 Transceiver
• Operating Supply Voltage: 5 V
• Product Type: RS-232 Interface IC
• Protocol Supported: RS-232, RS-422
• Receiver Signal Type: Single-Ended, Differential
• Factory Pack Quantity: 15
• Subcategory: Interface ICs
• Unit Weight: 0.131925 oz
