| Mfr. #: | AD7543JN |
|---|---|
| Manufacturer: | Analog Devices Inc. |
| Description: | Digital to Analog Converters - DAC 12B Multiplying I-out SERIAL |
| Lifecycle: | New from this manufacturer. |
| Datasheet: | AD7543JN Datasheet |
This product is manufactured by Analog Devices Inc.. This product is equipped with 1 Channel for efficient performance. 2 us settling time Interface Type: Serial Supply Voltage - Max: 5.25 V Supply Voltage - Min: 4.75 V The minimum operating temperature of this product is - 40 C. The product can operate at a maximum temperature of + 85 C. The product can operate at a maximum temperature of Through Hole. PDIP-16 package/case type is utilized by this product. Tube packaging for easy dispensing The height of the product is 3.56 mm. 19.18 mm long The output type is Current. This device belongs to the General Purpose type. R-2R architecture Analog Devices is a trusted brand for quality electronics The +/- 2 LSB, ensuring accurate and precise analog-to-digital conversion. INL is within +/- 1 LSB 4.75 V to 5.25 V operating supply voltage range 670 mW DACs - Digital to Analog Converters product type 25 of 100 Data Converter ICs as subcategory 1. 0.057419 oz of Unit Weight
Image shown is a representation only. Exact specifications should be obtained from the product data sheet.

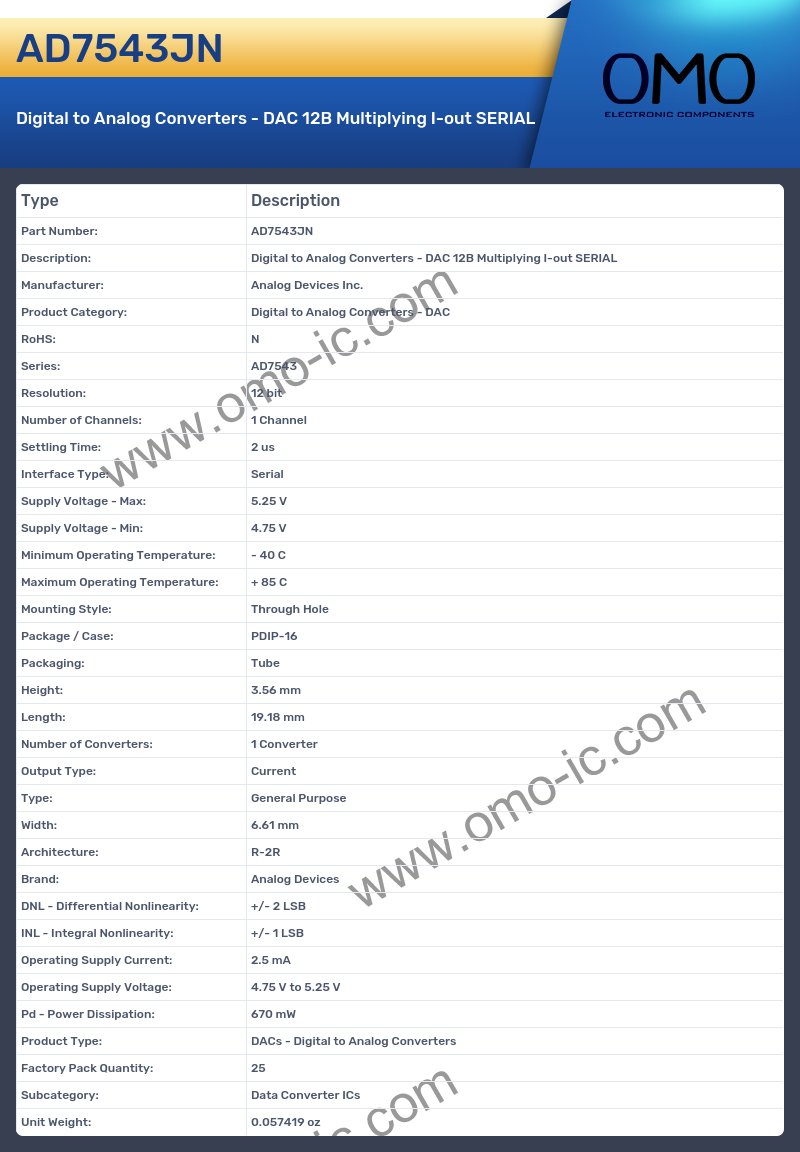

AD7543JN Specifications
A: What is the Manufacturer of the product?
Q: The Manufacturer of the product is Analog Devices Inc..
A: Is the cutoff frequency of the product Number of Channels?
Q: Yes, the product's Number of Channels is indeed 1 Channel
A: At what frequency does the Settling Time?
Q: The product Settling Time is 2 us.
A: What is the Interface Type of the product?
Q: The Interface Type of the product is Serial.
A: At what frequency does the Supply Voltage - Max?
Q: The product Supply Voltage - Max is 5.25 V.
A: What is the Supply Voltage - Min of the product?
Q: The Supply Voltage - Min of the product is 4.75 V.
A: At what frequency does the Minimum Operating Temperature?
Q: The product Minimum Operating Temperature is - 40 C.
A: Is the cutoff frequency of the product Maximum Operating Temperature?
Q: Yes, the product's Maximum Operating Temperature is indeed + 85 C
A: At what frequency does the Mounting Style?
Q: The product Mounting Style is Through Hole.
A: What is the Package / Case of the product?
Q: The Package / Case of the product is PDIP-16.
A: Is the cutoff frequency of the product Packaging?
Q: Yes, the product's Packaging is indeed Tube
A: At what frequency does the Height?
Q: The product Height is 3.56 mm.
A: Is the cutoff frequency of the product Length?
Q: Yes, the product's Length is indeed 19.18 mm
A: What is the Output Type of the product?
Q: The Output Type of the product is Current.
A: What is the Type of the product?
Q: The Type of the product is General Purpose.
A: At what frequency does the Architecture?
Q: The product Architecture is R-2R.
A: At what frequency does the Brand?
Q: The product Brand is Analog Devices.
A: Is the cutoff frequency of the product DNL - Differential Nonlinearity?
Q: Yes, the product's DNL - Differential Nonlinearity is indeed +/- 2 LSB
A: What is the INL - Integral Nonlinearity of the product?
Q: The INL - Integral Nonlinearity of the product is +/- 1 LSB.
A: Is the cutoff frequency of the product Operating Supply Voltage?
Q: Yes, the product's Operating Supply Voltage is indeed 4.75 V to 5.25 V
A: What is the Pd - Power Dissipation of the product?
Q: The Pd - Power Dissipation of the product is 670 mW.
A: Is the cutoff frequency of the product Product Type?
Q: Yes, the product's Product Type is indeed DACs - Digital to Analog Converters
A: Is the cutoff frequency of the product Factory Pack Quantity?
Q: Yes, the product's Factory Pack Quantity is indeed 25
A: What is the Subcategory of the product?
Q: The Subcategory of the product is Data Converter ICs.
A: Is the cutoff frequency of the product Unit Weight?
Q: Yes, the product's Unit Weight is indeed 0.057419 oz
