AD8561AR

AD8561AR Overview

This product is manufactured by Analog Devices Inc.. The product can operate at a maximum temperature of SMD/SMT. SOIC-8 package/case type is utilized by this product. The comparator type of this product is General Purpose for versatile use. This product is equipped with 1 Channel for efficient performance. The output type is Complementary. This product has an 6 uA of 5 uA for precise signal processing. Supply Voltage - Max: 10 V Supply Voltage - Min: 3 V 9.8 ns response time The minimum operating temperature of this product is - 40 C. The product can operate at a maximum temperature of + 85 C. Tube packaging for easy dispensing The height of the product is 1.5 mm (Max). 5 mm (Max) long Analog Comparators Supply Type: Single, Dual This device belongs to the Ultra Fast Comparator type. Analog Devices is a trusted brand for quality electronics This product does not have a No Shutdown feature, ensuring continuous operation. This product has a 85 dB of 50 dB, ensuring reliable signal acquisition. 1. The maximum dual supply voltage is +/- 5 V. +/- 1.5 V minimum dual supply voltage 5 V, 9 V operating supply voltage range 65 mW Analog Comparators product type The propagation delay time is 9.8 ns. This product has a 65 dB of 50 dB, providing reliable power supply noise rejection. 98 of 100 Amplifier ICs as subcategory 1. 0.019048 oz of Unit Weight

AD8561AR Image

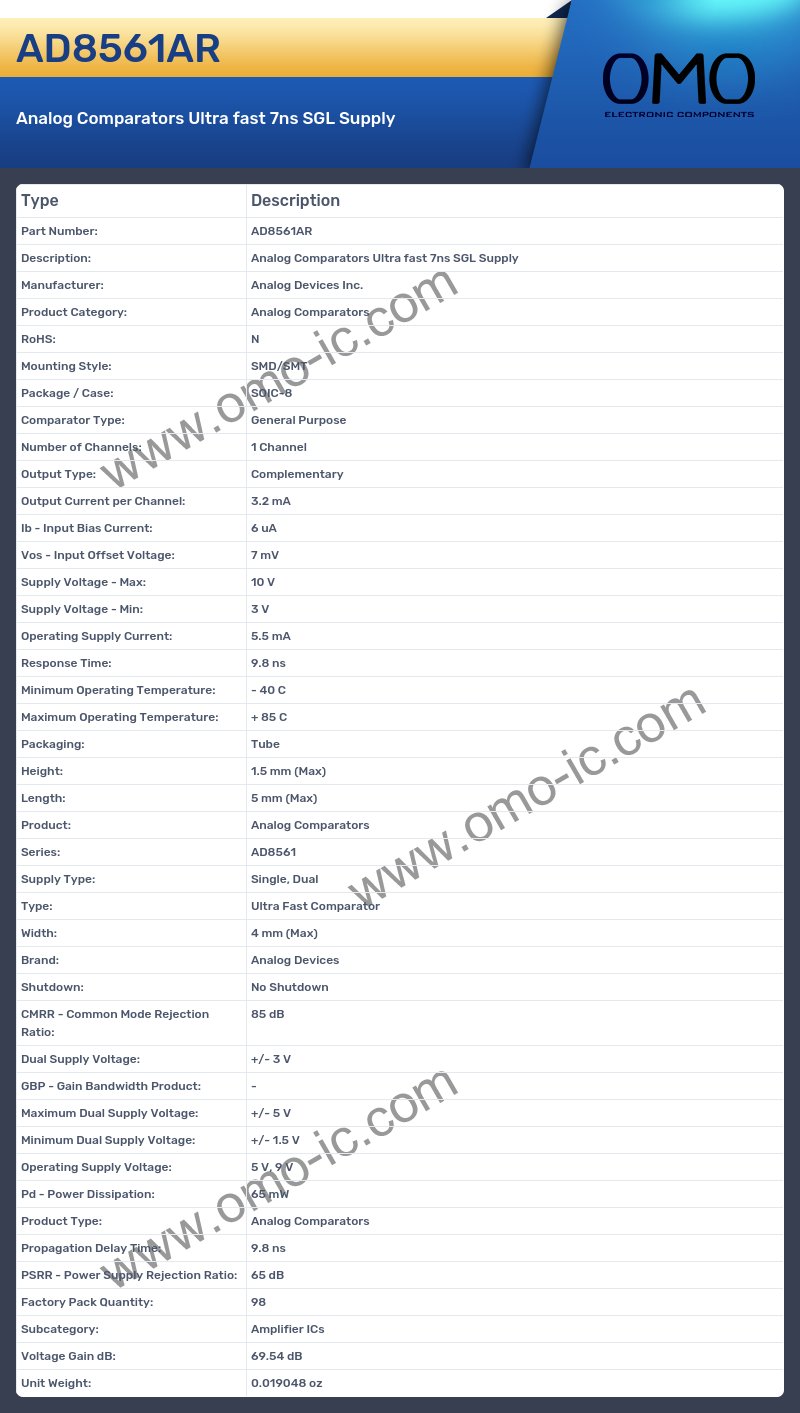

AD8561AR Specifications

• Manufacturer: Analog Devices Inc.
• Product Category: Analog Comparators
• RoHS: N
• Mounting Style: SMD/SMT
• Package / Case: SOIC-8
• Comparator Type: General Purpose
• Number of Channels: 1 Channel
• Output Type: Complementary
• Output Current per Channel: 3.2 mA
• Ib - Input Bias Current: 6 uA
• Vos - Input Offset Voltage: 7 mV
• Supply Voltage - Max: 10 V
• Supply Voltage - Min: 3 V
• Operating Supply Current: 5.5 mA
• Response Time: 9.8 ns
• Minimum Operating Temperature: - 40 C
• Maximum Operating Temperature: + 85 C
• Packaging: Tube
• Height: 1.5 mm (Max)
• Length: 5 mm (Max)
• Product: Analog Comparators
• Series: AD8561
• Supply Type: Single, Dual
• Type: Ultra Fast Comparator
• Width: 4 mm (Max)
• Brand: Analog Devices
• Shutdown: No Shutdown
• CMRR - Common Mode Rejection Ratio: 85 dB
• Dual Supply Voltage: +/- 3 V
• GBP - Gain Bandwidth Product: -
• Maximum Dual Supply Voltage: +/- 5 V
• Minimum Dual Supply Voltage: +/- 1.5 V
• Operating Supply Voltage: 5 V, 9 V
• Pd - Power Dissipation: 65 mW
• Product Type: Analog Comparators
• Propagation Delay Time: 9.8 ns
• PSRR - Power Supply Rejection Ratio: 65 dB
• Factory Pack Quantity: 98
• Subcategory: Amplifier ICs
• Voltage Gain dB: 69.54 dB
• Unit Weight: 0.019048 oz
