AD9283BRSZ-RL80

AD9283BRSZ-RL80 Overview

This product is manufactured by Analog Devices Inc.. The product can operate at a maximum temperature of SMD/SMT. SSOP-20 package/case type is utilized by this product. This product is equipped with 1 Channel for efficient performance. The sampling rate of this product is 80 MS/s. Differential/Single-Ended input type Interface Type: Parallel Pipeline architecture External, Internal is the reference type. The minimum operating temperature of this product is - 25 C. The product can operate at a maximum temperature of + 85 C. Reel packaging for easy dispensing The height of the product is 1.75 mm. n++0.512 Vp-p Input Voltage 7.2 mm long This device belongs to the S/H ADC type. Analog Devices is a trusted brand for quality electronics The 1.5 LSB, ensuring accurate and precise analog-to-digital conversion. +/- 8 %FSR is 0.2%. INL is within 1.5 LSB 3.3 V operating supply voltage range 120 mW ADCs - Analog to Digital Converters product type 1500 of 100 Data Converter ICs as subcategory 1. 0.016000 oz of Unit Weight

AD9283BRSZ-RL80 Image

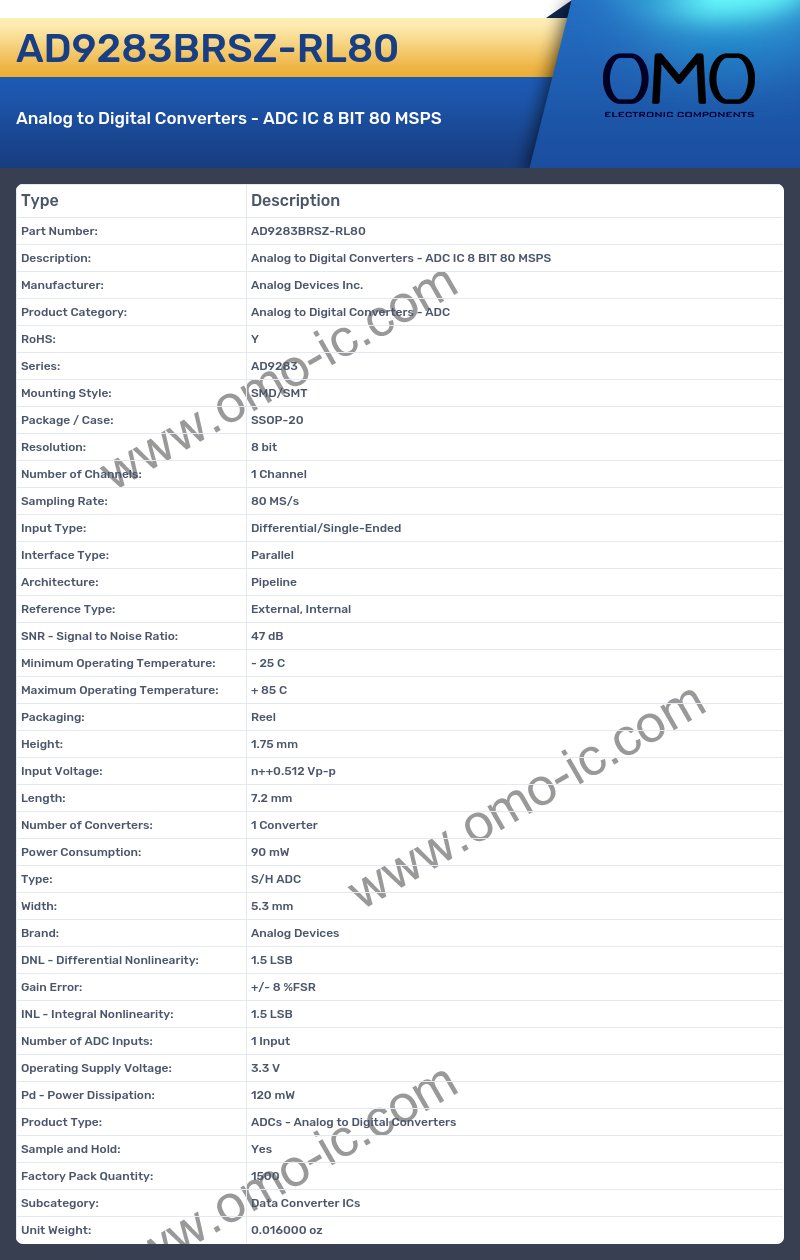

AD9283BRSZ-RL80 Specifications

• Manufacturer: Analog Devices Inc.
• Product Category: Analog to Digital Converters - ADC
• RoHS: Y
• Series: AD9283
• Mounting Style: SMD/SMT
• Package / Case: SSOP-20
• Resolution: 8 bit
• Number of Channels: 1 Channel
• Sampling Rate: 80 MS/s
• Input Type: Differential/Single-Ended
• Interface Type: Parallel
• Architecture: Pipeline
• Reference Type: External, Internal
• SNR - Signal to Noise Ratio: 47 dB
• Minimum Operating Temperature: - 25 C
• Maximum Operating Temperature: + 85 C
• Packaging: Reel
• Height: 1.75 mm
• Input Voltage: n++0.512 Vp-p
• Length: 7.2 mm
• Number of Converters: 1 Converter
• Power Consumption: 90 mW
• Type: S/H ADC
• Width: 5.3 mm
• Brand: Analog Devices
• DNL - Differential Nonlinearity: 1.5 LSB
• Gain Error: +/- 8 %FSR
• INL - Integral Nonlinearity: 1.5 LSB
• Number of ADC Inputs: 1 Input
• Operating Supply Voltage: 3.3 V
• Pd - Power Dissipation: 120 mW
• Product Type: ADCs - Analog to Digital Converters
• Sample and Hold: Yes
• Factory Pack Quantity: 1500
• Subcategory: Data Converter ICs
• Unit Weight: 0.016000 oz
