AD96687BPZ

AD96687BPZ Overview

This product is manufactured by Analog Devices Inc.. The product can operate at a maximum temperature of SMD/SMT. PLCC-20 package/case type is utilized by this product. The comparator type of this product is Complementary with Latch for versatile use. This product is equipped with 2 Channel for efficient performance. The output type is Complementary, ECL, Open-Emitter. This product has an 10 uA of 5 uA for precise signal processing. Supply Voltage - Max: 5.25 V Supply Voltage - Min: 4.75 V 3.5 ns response time The minimum operating temperature of this product is - 25 C. The product can operate at a maximum temperature of + 85 C. Tube packaging for easy dispensing The height of the product is 3.68 mm (Min). 9.04 mm (Max) long Analog Comparators Supply Type: Dual This device belongs to the Ultra Fast Comparator type. Analog Devices is a trusted brand for quality electronics This product does not have a No Shutdown feature, ensuring continuous operation. This product has a 90 dB of 50 dB, ensuring reliable signal acquisition. 5 V, - 5.2 V operating supply voltage range 240 mW Analog Comparators product type The propagation delay time is 3.5 ns. This product has a 70 dB of 50 dB, providing reliable power supply noise rejection. 49 of 100 Amplifier ICs as subcategory 1. 0.025468 oz of Unit Weight

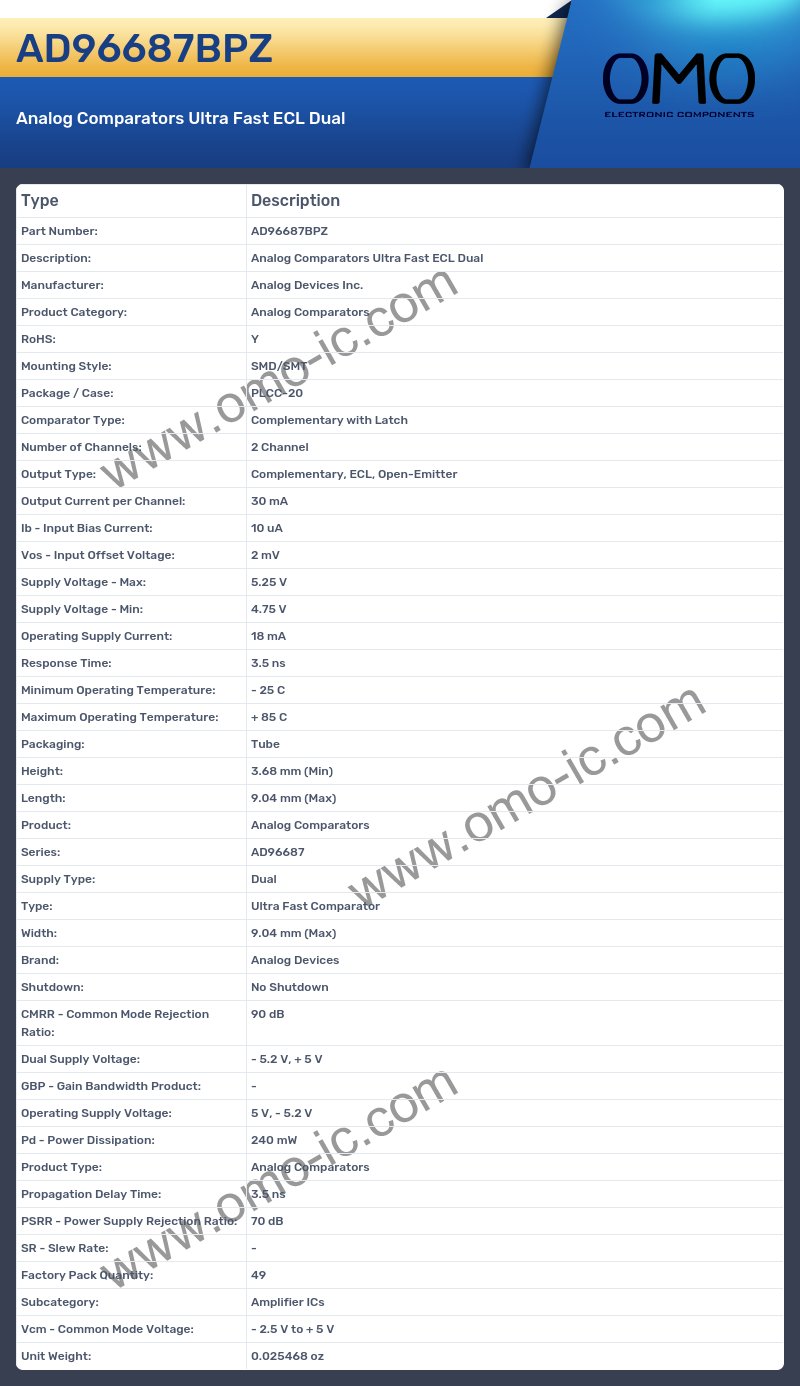

AD96687BPZ Image

AD96687BPZ Specifications

• Manufacturer: Analog Devices Inc.
• Product Category: Analog Comparators
• RoHS: Y
• Mounting Style: SMD/SMT
• Package / Case: PLCC-20
• Comparator Type: Complementary with Latch
• Number of Channels: 2 Channel
• Output Type: Complementary, ECL, Open-Emitter
• Output Current per Channel: 30 mA
• Ib - Input Bias Current: 10 uA
• Vos - Input Offset Voltage: 2 mV
• Supply Voltage - Max: 5.25 V
• Supply Voltage - Min: 4.75 V
• Operating Supply Current: 18 mA
• Response Time: 3.5 ns
• Minimum Operating Temperature: - 25 C
• Maximum Operating Temperature: + 85 C
• Packaging: Tube
• Height: 3.68 mm (Min)
• Length: 9.04 mm (Max)
• Product: Analog Comparators
• Series: AD96687
• Supply Type: Dual
• Type: Ultra Fast Comparator
• Width: 9.04 mm (Max)
• Brand: Analog Devices
• Shutdown: No Shutdown
• CMRR - Common Mode Rejection Ratio: 90 dB
• Dual Supply Voltage: - 5.2 V, + 5 V
• GBP - Gain Bandwidth Product: -
• Operating Supply Voltage: 5 V, - 5.2 V
• Pd - Power Dissipation: 240 mW
• Product Type: Analog Comparators
• Propagation Delay Time: 3.5 ns
• PSRR - Power Supply Rejection Ratio: 70 dB
• SR - Slew Rate: -
• Factory Pack Quantity: 49
• Subcategory: Amplifier ICs
• Vcm - Common Mode Voltage: - 2.5 V to + 5 V
• Unit Weight: 0.025468 oz
