ADC10158CIWM Overview

This product is manufactured by Texas Instruments. The product can operate at a maximum temperature of SMD/SMT. SOIC-28 package/case type is utilized by this product. This product is equipped with 4 Channel/8 Channel for efficient performance. The sampling rate of this product is 227 kS/s. Differential/Pseudo-Differential/Single-Ended input type Interface Type: Parallel SAR architecture External, Internal is the reference type. This product requires an 4.5 V to 5.5 V for proper operation. The minimum operating temperature of this product is - 40 C. The product can operate at a maximum temperature of + 85 C. Tube packaging for easy dispensing The height of the product is 2.34 mm. 5 V, +/- 5 V Input Voltage 17.91 mm long This device belongs to the S/H ADC type. Texas Instruments is a trusted brand for quality electronics 1.5 LSB is 0.2%. INL is within 1 LSB 5 V operating supply voltage range 33 mW ADCs - Analog to Digital Converters product type 26 of 100 Data Converter ICs as subcategory 1. 0.025778 oz of Unit Weight

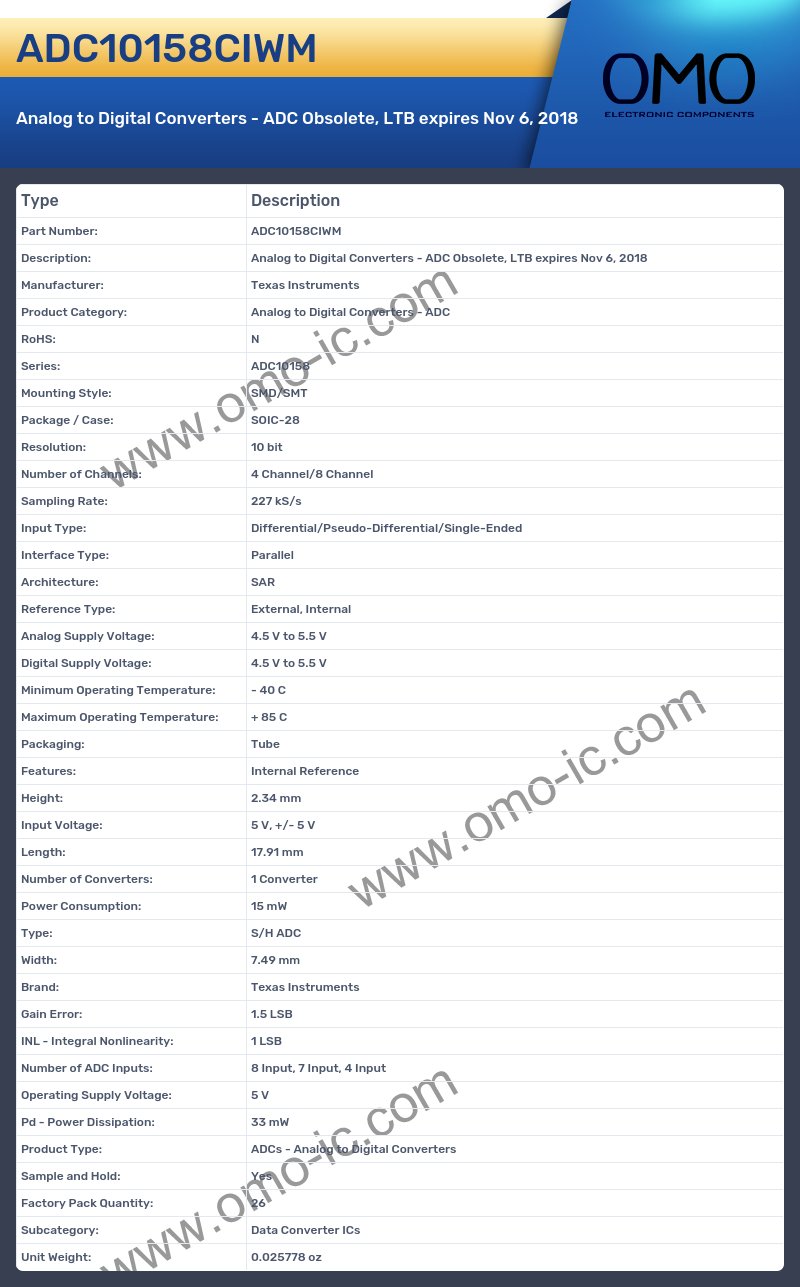

ADC10158CIWM Image

ADC10158CIWM Specifications

• Manufacturer: Texas Instruments
• Product Category: Analog to Digital Converters - ADC
• RoHS: N
• Series: ADC10158
• Mounting Style: SMD/SMT
• Package / Case: SOIC-28
• Resolution: 10 bit
• Number of Channels: 4 Channel/8 Channel
• Sampling Rate: 227 kS/s
• Input Type: Differential/Pseudo-Differential/Single-Ended
• Interface Type: Parallel
• Architecture: SAR
• Reference Type: External, Internal
• Analog Supply Voltage: 4.5 V to 5.5 V
• Digital Supply Voltage: 4.5 V to 5.5 V
• Minimum Operating Temperature: - 40 C
• Maximum Operating Temperature: + 85 C
• Packaging: Tube
• Features: Internal Reference
• Height: 2.34 mm
• Input Voltage: 5 V, +/- 5 V
• Length: 17.91 mm
• Number of Converters: 1 Converter
• Power Consumption: 15 mW
• Type: S/H ADC
• Width: 7.49 mm
• Brand: Texas Instruments
• Gain Error: 1.5 LSB
• INL - Integral Nonlinearity: 1 LSB
• Number of ADC Inputs: 8 Input, 7 Input, 4 Input
• Operating Supply Voltage: 5 V
• Pd - Power Dissipation: 33 mW
• Product Type: ADCs - Analog to Digital Converters
• Sample and Hold: Yes
• Factory Pack Quantity: 26
• Subcategory: Data Converter ICs
• Unit Weight: 0.025778 oz
