ADC12D040CIVS/NOPB

ADC12D040CIVS/NOPB Overview

This product is manufactured by Texas Instruments. The product can operate at a maximum temperature of SMD/SMT. TQFP-64 package/case type is utilized by this product. This product is equipped with 2 Channel for efficient performance. The sampling rate of this product is 40 MS/s. Differential input type Interface Type: Parallel Pipeline architecture External, Internal is the reference type. This product requires an 4.75 V to 5.25 V for proper operation. The minimum operating temperature of this product is - 40 C. The product can operate at a maximum temperature of + 85 C. Tray packaging for easy dispensing The height of the product is 1 mm. 4 V Input Voltage 10 mm long This device belongs to the S/H ADC type. Texas Instruments is a trusted brand for quality electronics ADC12D040EVAL/NOPB is a versatile development platform for hardware and software The +/- 0.4 LSB, ensuring accurate and precise analog-to-digital conversion. - 2.7 % FSR to + 4 % FSR is 0.2%. INL is within 2 LSB Yes regarding Moisture Sensitivity 5 V operating supply voltage range ADCs - Analog to Digital Converters product type 160 of 100 Data Converter ICs as subcategory 1. 0.012720 oz of Unit Weight

ADC12D040CIVS/NOPB Image

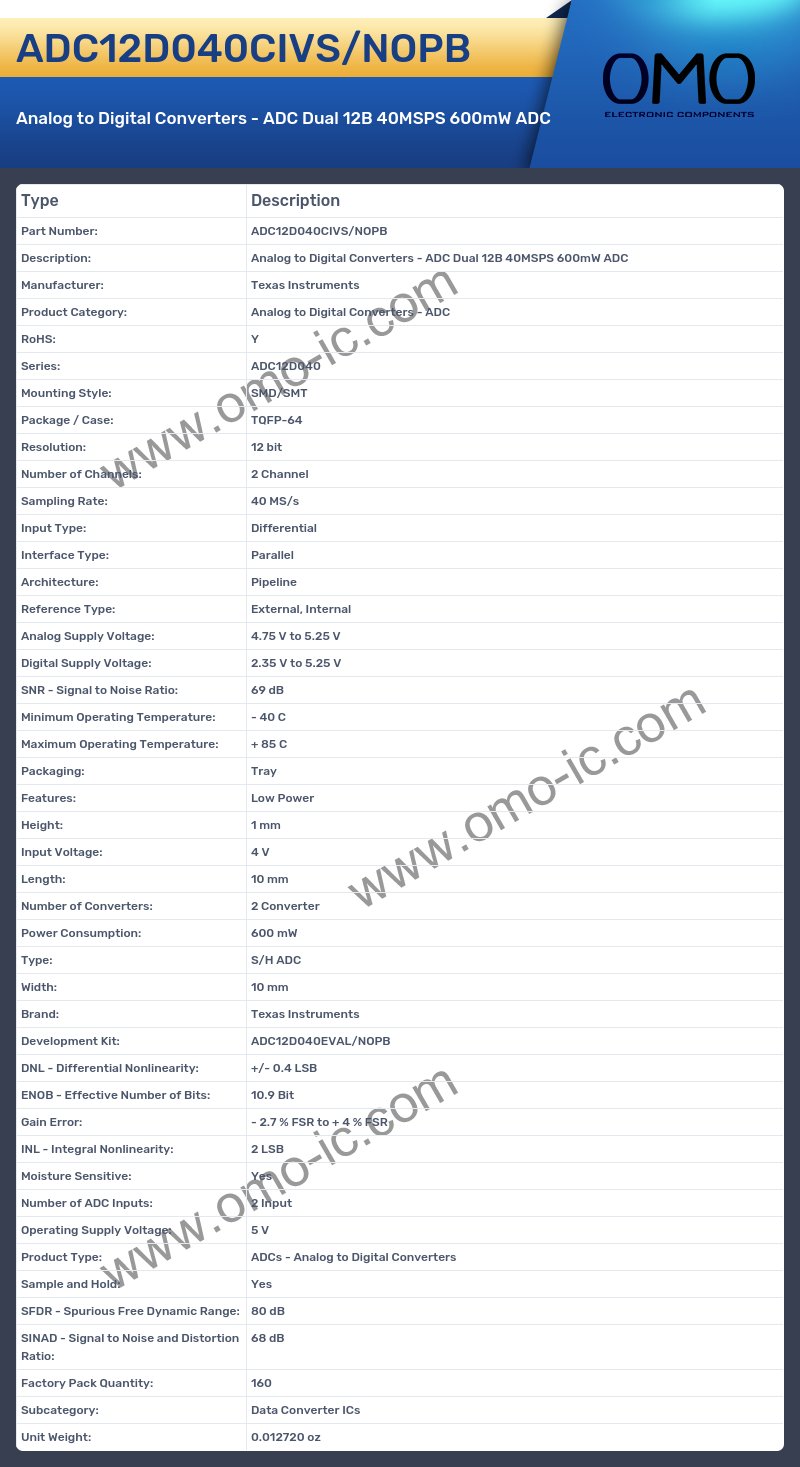

ADC12D040CIVS/NOPB Specifications

• Manufacturer: Texas Instruments
• Product Category: Analog to Digital Converters - ADC
• RoHS: Y
• Series: ADC12D040
• Mounting Style: SMD/SMT
• Package / Case: TQFP-64
• Resolution: 12 bit
• Number of Channels: 2 Channel
• Sampling Rate: 40 MS/s
• Input Type: Differential
• Interface Type: Parallel
• Architecture: Pipeline
• Reference Type: External, Internal
• Analog Supply Voltage: 4.75 V to 5.25 V
• Digital Supply Voltage: 2.35 V to 5.25 V
• SNR - Signal to Noise Ratio: 69 dB
• Minimum Operating Temperature: - 40 C
• Maximum Operating Temperature: + 85 C
• Packaging: Tray
• Features: Low Power
• Height: 1 mm
• Input Voltage: 4 V
• Length: 10 mm
• Number of Converters: 2 Converter
• Power Consumption: 600 mW
• Type: S/H ADC
• Width: 10 mm
• Brand: Texas Instruments
• Development Kit: ADC12D040EVAL/NOPB
• DNL - Differential Nonlinearity: +/- 0.4 LSB
• ENOB - Effective Number of Bits: 10.9 Bit
• Gain Error: - 2.7 % FSR to + 4 % FSR
• INL - Integral Nonlinearity: 2 LSB
• Moisture Sensitive: Yes
• Number of ADC Inputs: 2 Input
• Operating Supply Voltage: 5 V
• Product Type: ADCs - Analog to Digital Converters
• Sample and Hold: Yes
• SFDR - Spurious Free Dynamic Range: 80 dB
• SINAD - Signal to Noise and Distortion Ratio: 68 dB
• Factory Pack Quantity: 160
• Subcategory: Data Converter ICs
• Unit Weight: 0.012720 oz
