ADCS7477AIMF

ADCS7477AIMF Overview

This product is manufactured by Texas Instruments. The product can operate at a maximum temperature of SMD/SMT. SOT-23-6 package/case type is utilized by this product. This product is equipped with 1 Channel for efficient performance. The sampling rate of this product is 1 MS/s. Single-Ended input type Interface Type: 3-Wire, SPI SAR architecture Supply is the reference type. This product requires an 2.7 V to 5.25 V for proper operation. The minimum operating temperature of this product is - 40 C. The product can operate at a maximum temperature of + 85 C. Reel packaging for easy dispensing The height of the product is 1.02 mm. 5.25 V Input Voltage 2.92 mm long This device belongs to the S/H ADC type. Texas Instruments is a trusted brand for quality electronics The 0.7 LSB, ensuring accurate and precise analog-to-digital conversion. 1 LSB is 0.2%. INL is within 0.7 LSB 3.3 V, 5 V operating supply voltage range ADCs - Analog to Digital Converters product type 1000 of 100 Data Converter ICs as subcategory 1. 0.000229 oz of Unit Weight

ADCS7477AIMF Image

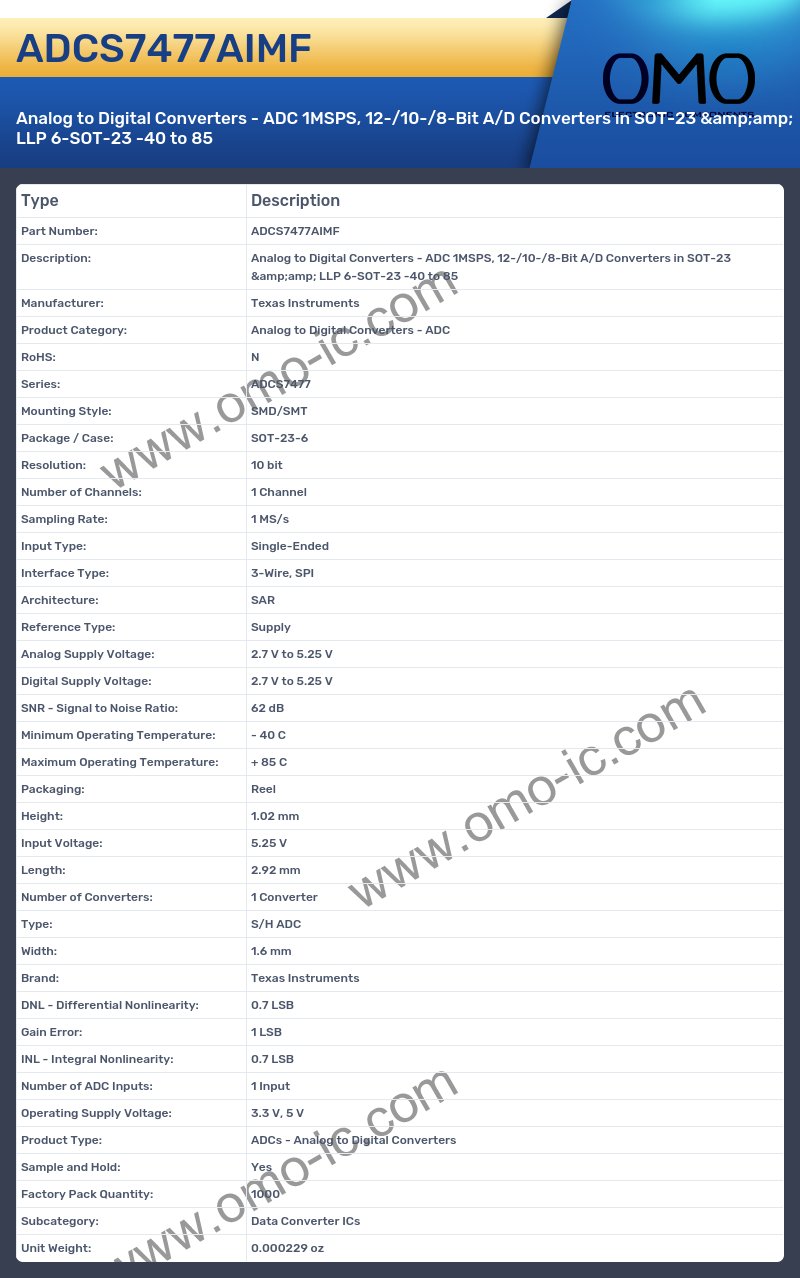

ADCS7477AIMF Specifications

• Manufacturer: Texas Instruments
• Product Category: Analog to Digital Converters - ADC
• RoHS: N
• Series: ADCS7477
• Mounting Style: SMD/SMT
• Package / Case: SOT-23-6
• Resolution: 10 bit
• Number of Channels: 1 Channel
• Sampling Rate: 1 MS/s
• Input Type: Single-Ended
• Interface Type: 3-Wire, SPI
• Architecture: SAR
• Reference Type: Supply
• Analog Supply Voltage: 2.7 V to 5.25 V
• Digital Supply Voltage: 2.7 V to 5.25 V
• SNR - Signal to Noise Ratio: 62 dB
• Minimum Operating Temperature: - 40 C
• Maximum Operating Temperature: + 85 C
• Packaging: Reel
• Height: 1.02 mm
• Input Voltage: 5.25 V
• Length: 2.92 mm
• Number of Converters: 1 Converter
• Type: S/H ADC
• Width: 1.6 mm
• Brand: Texas Instruments
• DNL - Differential Nonlinearity: 0.7 LSB
• Gain Error: 1 LSB
• INL - Integral Nonlinearity: 0.7 LSB
• Number of ADC Inputs: 1 Input
• Operating Supply Voltage: 3.3 V, 5 V
• Product Type: ADCs - Analog to Digital Converters
• Sample and Hold: Yes
• Factory Pack Quantity: 1000
• Subcategory: Data Converter ICs
• Unit Weight: 0.000229 oz
