ADG201HSJP

ADG201HSJP Overview

This product is manufactured by Analog Devices Inc.. Our product has a 4 Switch number of switches. This product has a 4 x SPST configuration. Maximum switch voltage is 15 V Our product has a maximum 50 ns. Our product has a maximum 50 ns. 10.8 V to 16.5 V operating supply voltage range The minimum operating temperature of this product is - 40 C. The product can operate at a maximum temperature of + 85 C. The product can operate at a maximum temperature of SMD/SMT. PLCC-20 package/case type is utilized by this product. Tube packaging for easy dispensing The height of the product is 3.68 mm (Min). 9.04 mm (Max) long Supply Type: Single Supply, Dual Supply Analog Devices is a trusted brand for quality electronics Maximum supply current: 10 mA 1. The maximum dual supply voltage is +/- 16.5 V. +/- 13.5 V minimum dual supply voltage 240 mW Analog Switch ICs product type 49 of 100 Switch ICs as subcategory Supply Voltage - Max: 16.5 V Supply Voltage - Min: 10.8 V Maximum continuous current: 20 mA 1. 0.025468 oz of Unit Weight

ADG201HSJP Image

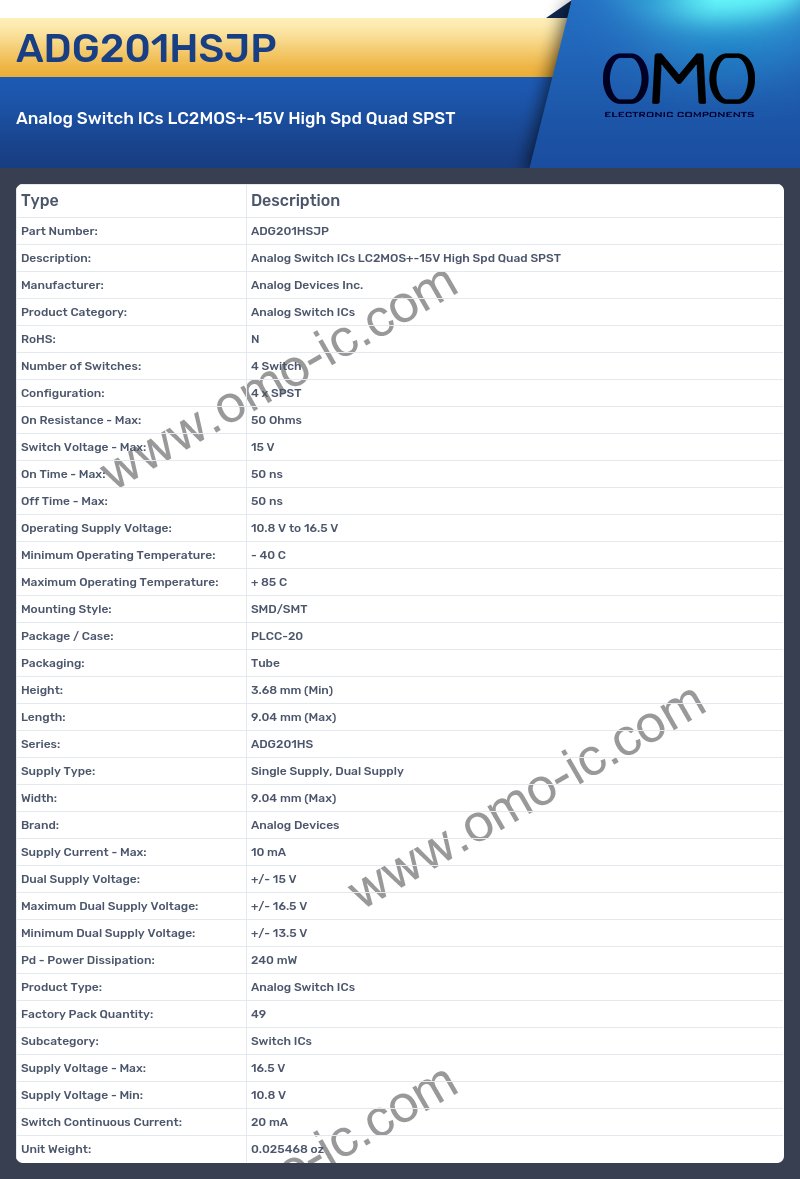

ADG201HSJP Specifications

• Manufacturer: Analog Devices Inc.
• Product Category: Analog Switch ICs
• RoHS: N
• Number of Switches: 4 Switch
• Configuration: 4 x SPST
• On Resistance - Max: 50 Ohms
• Switch Voltage - Max: 15 V
• On Time - Max: 50 ns
• Off Time - Max: 50 ns
• Operating Supply Voltage: 10.8 V to 16.5 V
• Minimum Operating Temperature: - 40 C
• Maximum Operating Temperature: + 85 C
• Mounting Style: SMD/SMT
• Package / Case: PLCC-20
• Packaging: Tube
• Height: 3.68 mm (Min)
• Length: 9.04 mm (Max)
• Series: ADG201HS
• Supply Type: Single Supply, Dual Supply
• Width: 9.04 mm (Max)
• Brand: Analog Devices
• Supply Current - Max: 10 mA
• Dual Supply Voltage: +/- 15 V
• Maximum Dual Supply Voltage: +/- 16.5 V
• Minimum Dual Supply Voltage: +/- 13.5 V
• Pd - Power Dissipation: 240 mW
• Product Type: Analog Switch ICs
• Factory Pack Quantity: 49
• Subcategory: Switch ICs
• Supply Voltage - Max: 16.5 V
• Supply Voltage - Min: 10.8 V
• Switch Continuous Current: 20 mA
• Unit Weight: 0.025468 oz
