ADG509FBRNZ

ADG509FBRNZ Overview

This product is manufactured by Analog Devices Inc.. Multiplexers This product is equipped with 4 Channel for efficient performance. This product has a 2 x 4:1 configuration. Our product has a maximum 230 ns. Our product has a maximum 130 ns. 15 V operating supply voltage range The minimum operating temperature of this product is - 40 C. The product can operate at a maximum temperature of + 85 C. SOIC-16 package/case type is utilized by this product. Tube packaging for easy dispensing The height of the product is 1.5 mm (Max). 10 mm (Max) long Analog Devices is a trusted brand for quality electronics Maximum supply current: 1 uA 3.3 mW Multiplexer Switch ICs product type 48 of 100 Switch ICs as subcategory Supply Voltage - Max: 16.5 V Supply Voltage - Min: 10.8 V 1. 0.023492 oz of Unit Weight

ADG509FBRNZ Image

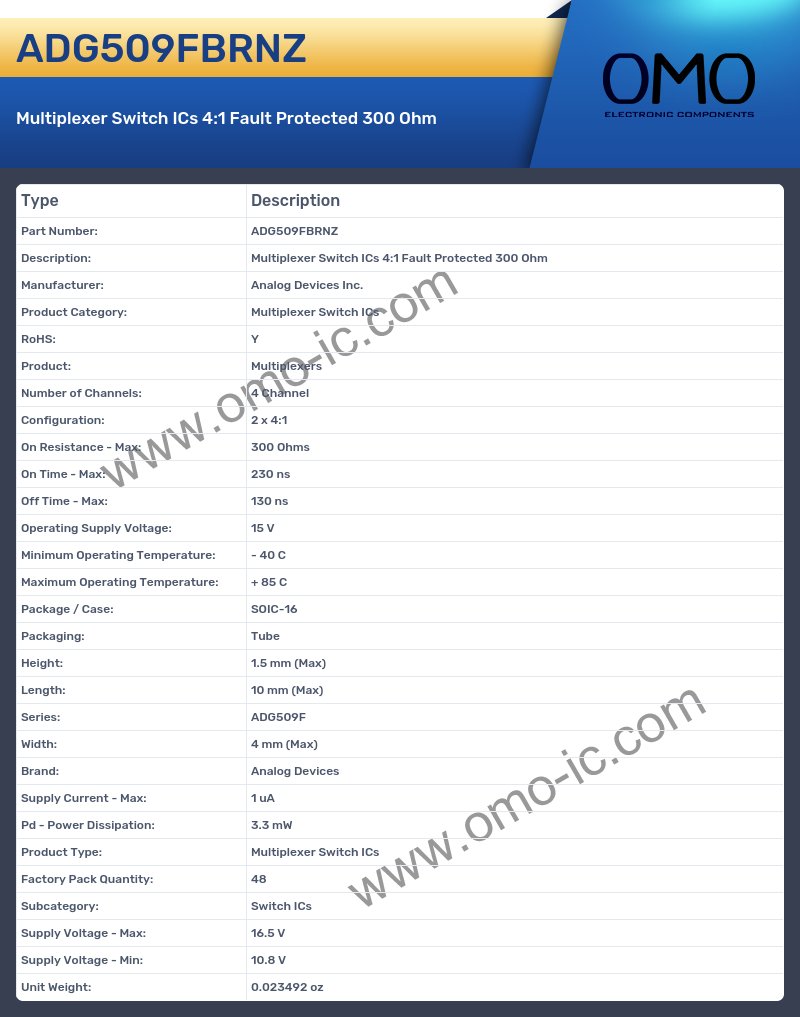

ADG509FBRNZ Specifications

• Manufacturer: Analog Devices Inc.
• Product Category: Multiplexer Switch ICs
• RoHS: Y
• Product: Multiplexers
• Number of Channels: 4 Channel
• Configuration: 2 x 4:1
• On Resistance - Max: 300 Ohms
• On Time - Max: 230 ns
• Off Time - Max: 130 ns
• Operating Supply Voltage: 15 V
• Minimum Operating Temperature: - 40 C
• Maximum Operating Temperature: + 85 C
• Package / Case: SOIC-16
• Packaging: Tube
• Height: 1.5 mm (Max)
• Length: 10 mm (Max)
• Series: ADG509F
• Width: 4 mm (Max)
• Brand: Analog Devices
• Supply Current - Max: 1 uA
• Pd - Power Dissipation: 3.3 mW
• Product Type: Multiplexer Switch ICs
• Factory Pack Quantity: 48
• Subcategory: Switch ICs
• Supply Voltage - Max: 16.5 V
• Supply Voltage - Min: 10.8 V
• Unit Weight: 0.023492 oz
