ADG5436BRUZ

ADG5436BRUZ Overview

This product is manufactured by Analog Devices Inc.. Our product has a 2 Switch number of switches. This product has a 2 x SPDT configuration. Maximum switch voltage is 15 V Our product has a maximum 230 ns. Our product has a maximum 160 ns. 9 V to 40 V operating supply voltage range The minimum operating temperature of this product is - 40 C. The product can operate at a maximum temperature of + 125 C. The product can operate at a maximum temperature of SMD/SMT. TSSOP-16 package/case type is utilized by this product. Tube packaging for easy dispensing The height of the product is 1.05 mm (Max). 5 mm long Supply Type: Single Supply, Dual Supply Analog Devices is a trusted brand for quality electronics Maximum supply current: 55 uA 1. The maximum dual supply voltage is +/- 22 V. +/- 9 V minimum dual supply voltage 1.1 mW Analog Switch ICs product type 96 of 100 Switch ICs as subcategory Supply Voltage - Max: 40 V Supply Voltage - Min: 9 V Maximum continuous current: 122 mA 1. 0.006102 oz of Unit Weight

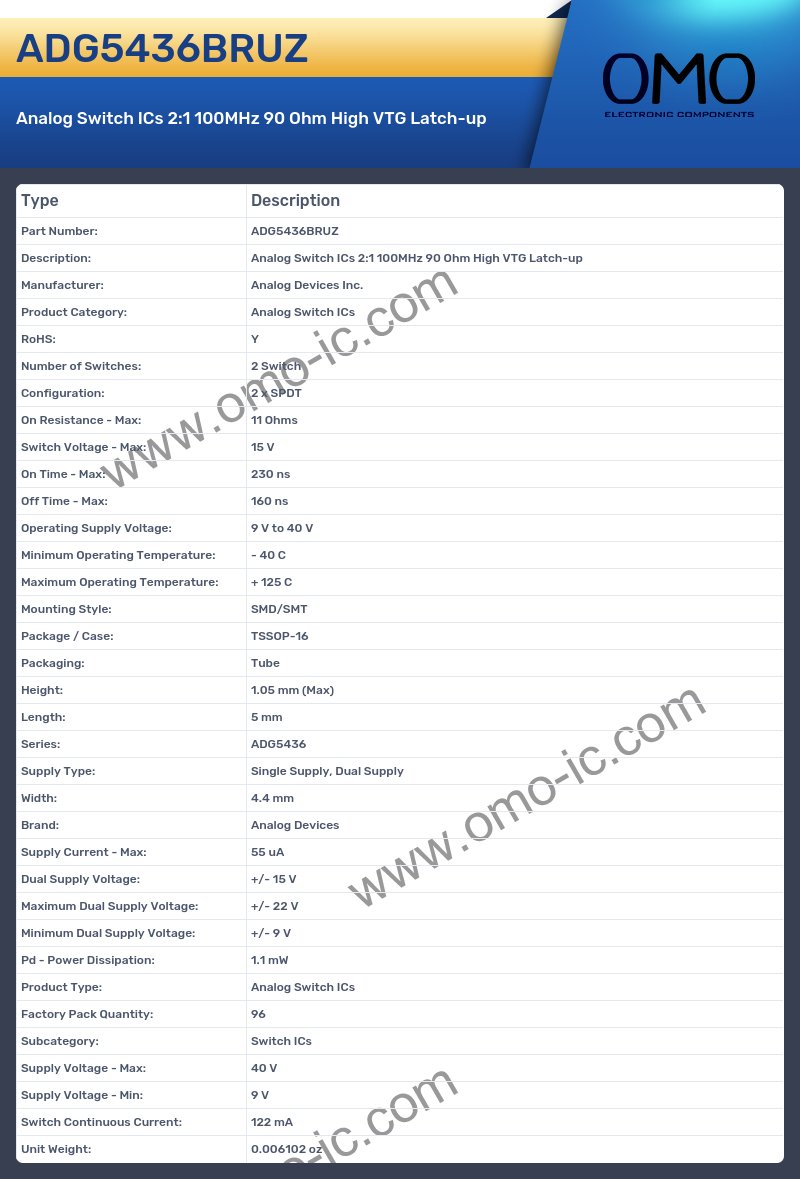

ADG5436BRUZ Image

ADG5436BRUZ Specifications

• Manufacturer: Analog Devices Inc.
• Product Category: Analog Switch ICs
• RoHS: Y
• Number of Switches: 2 Switch
• Configuration: 2 x SPDT
• On Resistance - Max: 11 Ohms
• Switch Voltage - Max: 15 V
• On Time - Max: 230 ns
• Off Time - Max: 160 ns
• Operating Supply Voltage: 9 V to 40 V
• Minimum Operating Temperature: - 40 C
• Maximum Operating Temperature: + 125 C
• Mounting Style: SMD/SMT
• Package / Case: TSSOP-16
• Packaging: Tube
• Height: 1.05 mm (Max)
• Length: 5 mm
• Series: ADG5436
• Supply Type: Single Supply, Dual Supply
• Width: 4.4 mm
• Brand: Analog Devices
• Supply Current - Max: 55 uA
• Dual Supply Voltage: +/- 15 V
• Maximum Dual Supply Voltage: +/- 22 V
• Minimum Dual Supply Voltage: +/- 9 V
• Pd - Power Dissipation: 1.1 mW
• Product Type: Analog Switch ICs
• Factory Pack Quantity: 96
• Subcategory: Switch ICs
• Supply Voltage - Max: 40 V
• Supply Voltage - Min: 9 V
• Switch Continuous Current: 122 mA
• Unit Weight: 0.006102 oz
