ADS1254E

ADS1254E Overview

This product is manufactured by Texas Instruments. The product can operate at a maximum temperature of SMD/SMT. QSOP-20 package/case type is utilized by this product. This product is equipped with 4 Channel for efficient performance. The sampling rate of this product is 20 kS/s. Differential input type Interface Type: I2C, SPI Sigma-Delta architecture External is the reference type. This product requires an 4.75 V to 5.25 V for proper operation. The minimum operating temperature of this product is - 40 C. The product can operate at a maximum temperature of + 85 C. Tube packaging for easy dispensing The height of the product is 1.5 mm. 8.75 mm long Texas Instruments is a trusted brand for quality electronics The +/- 1 LSB, ensuring accurate and precise analog-to-digital conversion. INL is within +/- 0.0015 % FSR Yes regarding Moisture Sensitivity 1.8 V to 3.6 V operating supply voltage range 500 mW (1/2 W) ADCs - Analog to Digital Converters product type 50 of 100 Data Converter ICs as subcategory 1. 0.004437 oz of Unit Weight

ADS1254E Image

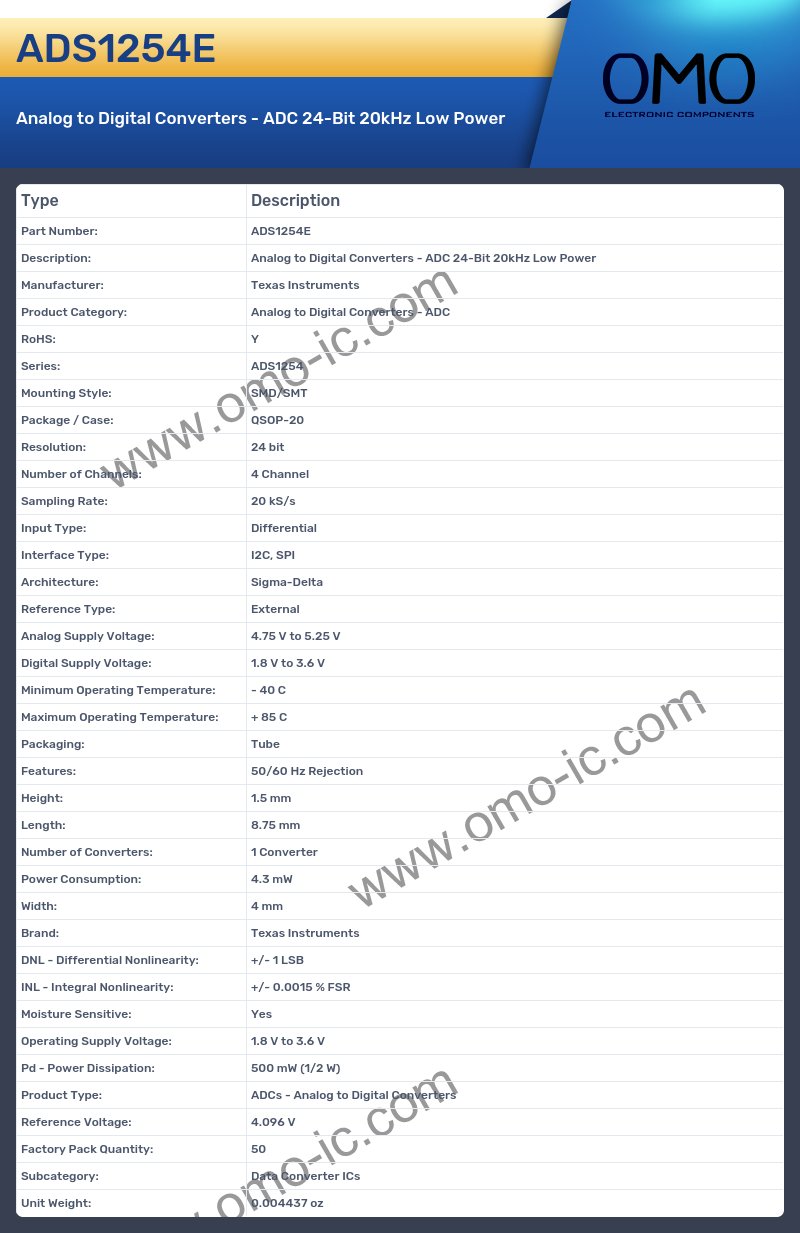

ADS1254E Specifications

• Manufacturer: Texas Instruments
• Product Category: Analog to Digital Converters - ADC
• RoHS: Y
• Series: ADS1254
• Mounting Style: SMD/SMT
• Package / Case: QSOP-20
• Resolution: 24 bit
• Number of Channels: 4 Channel
• Sampling Rate: 20 kS/s
• Input Type: Differential
• Interface Type: I2C, SPI
• Architecture: Sigma-Delta
• Reference Type: External
• Analog Supply Voltage: 4.75 V to 5.25 V
• Digital Supply Voltage: 1.8 V to 3.6 V
• Minimum Operating Temperature: - 40 C
• Maximum Operating Temperature: + 85 C
• Packaging: Tube
• Features: 50/60 Hz Rejection
• Height: 1.5 mm
• Length: 8.75 mm
• Number of Converters: 1 Converter
• Power Consumption: 4.3 mW
• Width: 4 mm
• Brand: Texas Instruments
• DNL - Differential Nonlinearity: +/- 1 LSB
• INL - Integral Nonlinearity: +/- 0.0015 % FSR
• Moisture Sensitive: Yes
• Operating Supply Voltage: 1.8 V to 3.6 V
• Pd - Power Dissipation: 500 mW (1/2 W)
• Product Type: ADCs - Analog to Digital Converters
• Reference Voltage: 4.096 V
• Factory Pack Quantity: 50
• Subcategory: Data Converter ICs
• Unit Weight: 0.004437 oz
