ADS1292IPBSR

ADS1292IPBSR Overview

This product is manufactured by Texas Instruments. This device belongs to the Biopotential type. The sampling rate of this product is 8 kS/s. This product is equipped with 2 Channel for efficient performance. Interface Type: Serial, SPI Supply Voltage - Max: 5.25 V Supply Voltage - Min: 2.7 V The minimum operating temperature of this product is - 40 C. The product can operate at a maximum temperature of + 85 C. The product can operate at a maximum temperature of SMD/SMT. TQFP-32 package/case type is utilized by this product. Reel packaging for easy dispensing Differential input type Sigma-Delta architecture Texas Instruments is a trusted brand for quality electronics This product requires an 2.7 V to 5.25 V for proper operation. INL is within 2 ppm Yes regarding Moisture Sensitivity 1.7 V to 3.6 V, 2.7 V to 5.25 V operating supply voltage range 0.74 mW Analog Front End - AFE product type 1000 of 100 Data Converter ICs as subcategory 1. 0.002568 oz of Unit Weight

ADS1292IPBSR Image

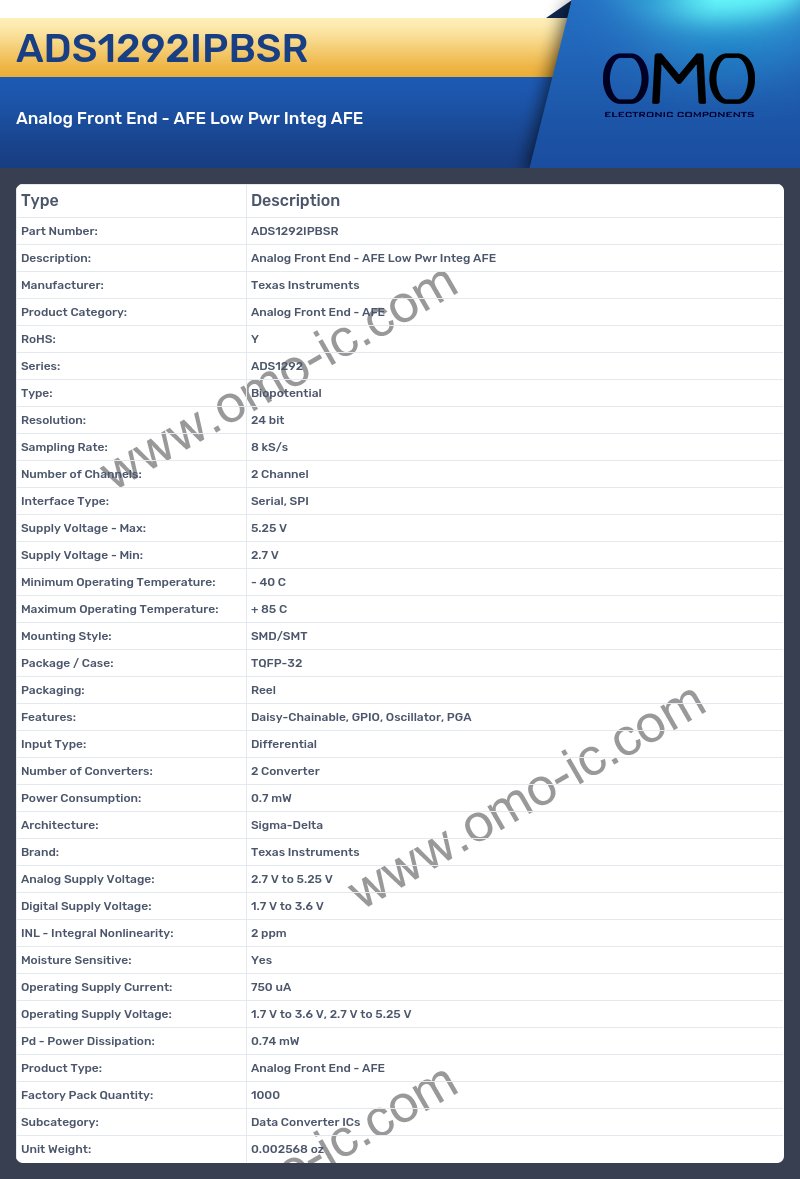

ADS1292IPBSR Specifications

• Manufacturer: Texas Instruments
• Product Category: Analog Front End - AFE
• RoHS: Y
• Series: ADS1292
• Type: Biopotential
• Resolution: 24 bit
• Sampling Rate: 8 kS/s
• Number of Channels: 2 Channel
• Interface Type: Serial, SPI
• Supply Voltage - Max: 5.25 V
• Supply Voltage - Min: 2.7 V
• Minimum Operating Temperature: - 40 C
• Maximum Operating Temperature: + 85 C
• Mounting Style: SMD/SMT
• Package / Case: TQFP-32
• Packaging: Reel
• Features: Daisy-Chainable, GPIO, Oscillator, PGA
• Input Type: Differential
• Number of Converters: 2 Converter
• Power Consumption: 0.7 mW
• Architecture: Sigma-Delta
• Brand: Texas Instruments
• Analog Supply Voltage: 2.7 V to 5.25 V
• Digital Supply Voltage: 1.7 V to 3.6 V
• INL - Integral Nonlinearity: 2 ppm
• Moisture Sensitive: Yes
• Operating Supply Current: 750 uA
• Operating Supply Voltage: 1.7 V to 3.6 V, 2.7 V to 5.25 V
• Pd - Power Dissipation: 0.74 mW
• Product Type: Analog Front End - AFE
• Factory Pack Quantity: 1000
• Subcategory: Data Converter ICs
• Unit Weight: 0.002568 oz
