ADS1299IPAG

ADS1299IPAG Overview

This product is manufactured by Texas Instruments. This device belongs to the Biopotential type. The sampling rate of this product is 16 kS/s. This product is equipped with 8 Channel for efficient performance. Interface Type: Serial, SPI Supply Voltage - Max: 5.25 V Supply Voltage - Min: 4.75 V The minimum operating temperature of this product is - 40 C. The product can operate at a maximum temperature of + 85 C. The product can operate at a maximum temperature of SMD/SMT. TQFP-64 package/case type is utilized by this product. Tube packaging for easy dispensing Differential input type Sigma-Delta architecture Texas Instruments is a trusted brand for quality electronics This product requires an 4.75 V to 5.25 V for proper operation. ADS1299EEGFE-PDK is a versatile development platform for hardware and software INL is within 8 ppm Yes regarding Moisture Sensitivity 4.75 V to 5.25 V operating supply voltage range 42 mW Analog Front End - AFE product type 160 of 100 Data Converter ICs as subcategory 1. 0.012720 oz of Unit Weight

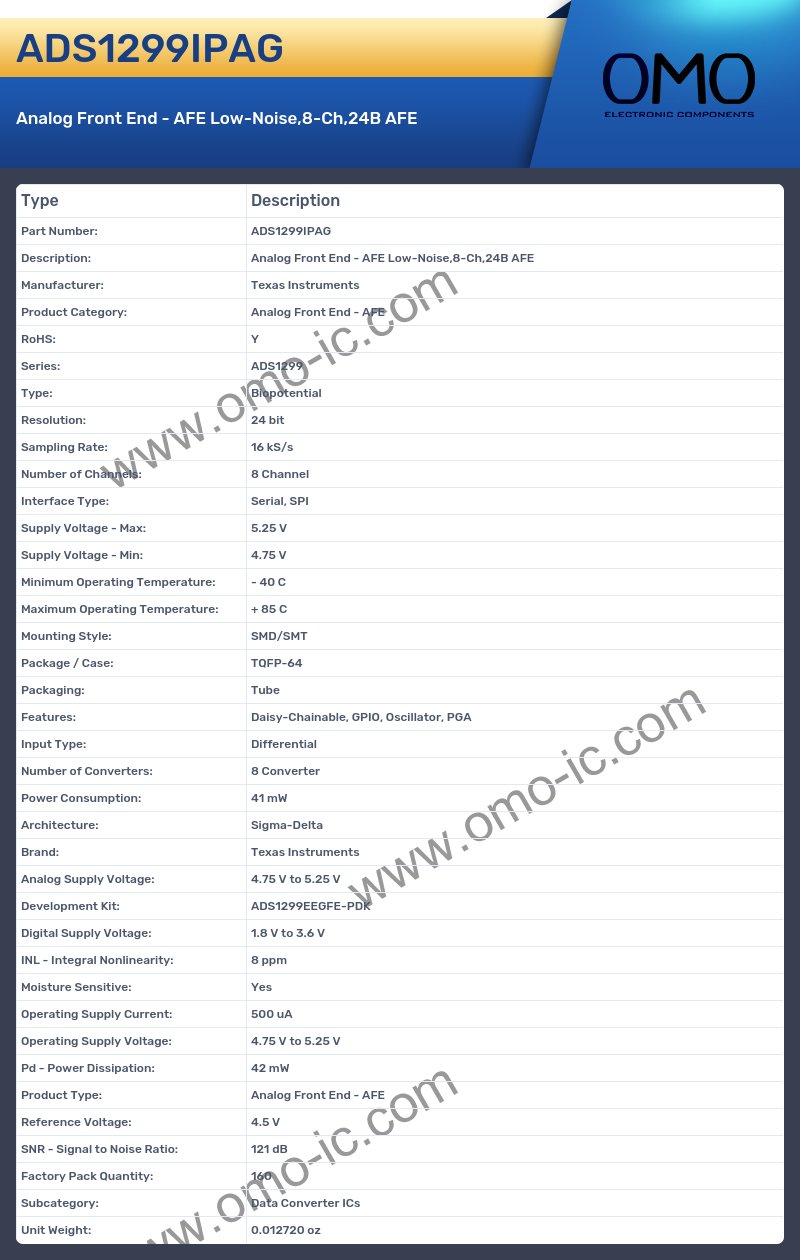

ADS1299IPAG Image

ADS1299IPAG Specifications

• Manufacturer: Texas Instruments
• Product Category: Analog Front End - AFE
• RoHS: Y
• Series: ADS1299
• Type: Biopotential
• Resolution: 24 bit
• Sampling Rate: 16 kS/s
• Number of Channels: 8 Channel
• Interface Type: Serial, SPI
• Supply Voltage - Max: 5.25 V
• Supply Voltage - Min: 4.75 V
• Minimum Operating Temperature: - 40 C
• Maximum Operating Temperature: + 85 C
• Mounting Style: SMD/SMT
• Package / Case: TQFP-64
• Packaging: Tube
• Features: Daisy-Chainable, GPIO, Oscillator, PGA
• Input Type: Differential
• Number of Converters: 8 Converter
• Power Consumption: 41 mW
• Architecture: Sigma-Delta
• Brand: Texas Instruments
• Analog Supply Voltage: 4.75 V to 5.25 V
• Development Kit: ADS1299EEGFE-PDK
• Digital Supply Voltage: 1.8 V to 3.6 V
• INL - Integral Nonlinearity: 8 ppm
• Moisture Sensitive: Yes
• Operating Supply Current: 500 uA
• Operating Supply Voltage: 4.75 V to 5.25 V
• Pd - Power Dissipation: 42 mW
• Product Type: Analog Front End - AFE
• Reference Voltage: 4.5 V
• SNR - Signal to Noise Ratio: 121 dB
• Factory Pack Quantity: 160
• Subcategory: Data Converter ICs
• Unit Weight: 0.012720 oz
