ADS5560IRGZT

ADS5560IRGZT Overview

This product is manufactured by Texas Instruments. The product can operate at a maximum temperature of SMD/SMT. VQFN-48 package/case type is utilized by this product. This product is equipped with 1 Channel for efficient performance. The sampling rate of this product is 40 MS/s. Differential input type Interface Type: Parallel Pipeline architecture External, Internal is the reference type. This product requires an 3.3 V for proper operation. The minimum operating temperature of this product is - 40 C. The product can operate at a maximum temperature of + 85 C. Reel packaging for easy dispensing The height of the product is 0.9 mm. 7 mm long The output type is LVDS. Texas Instruments is a trusted brand for quality electronics The +/- 3 LSB, ensuring accurate and precise analog-to-digital conversion. INL is within +/- 8.5 LSB Yes regarding Moisture Sensitivity 3.3 V operating supply voltage range 810 mW ADCs - Analog to Digital Converters product type 250 of 100 Data Converter ICs as subcategory 1. 0.004868 oz of Unit Weight

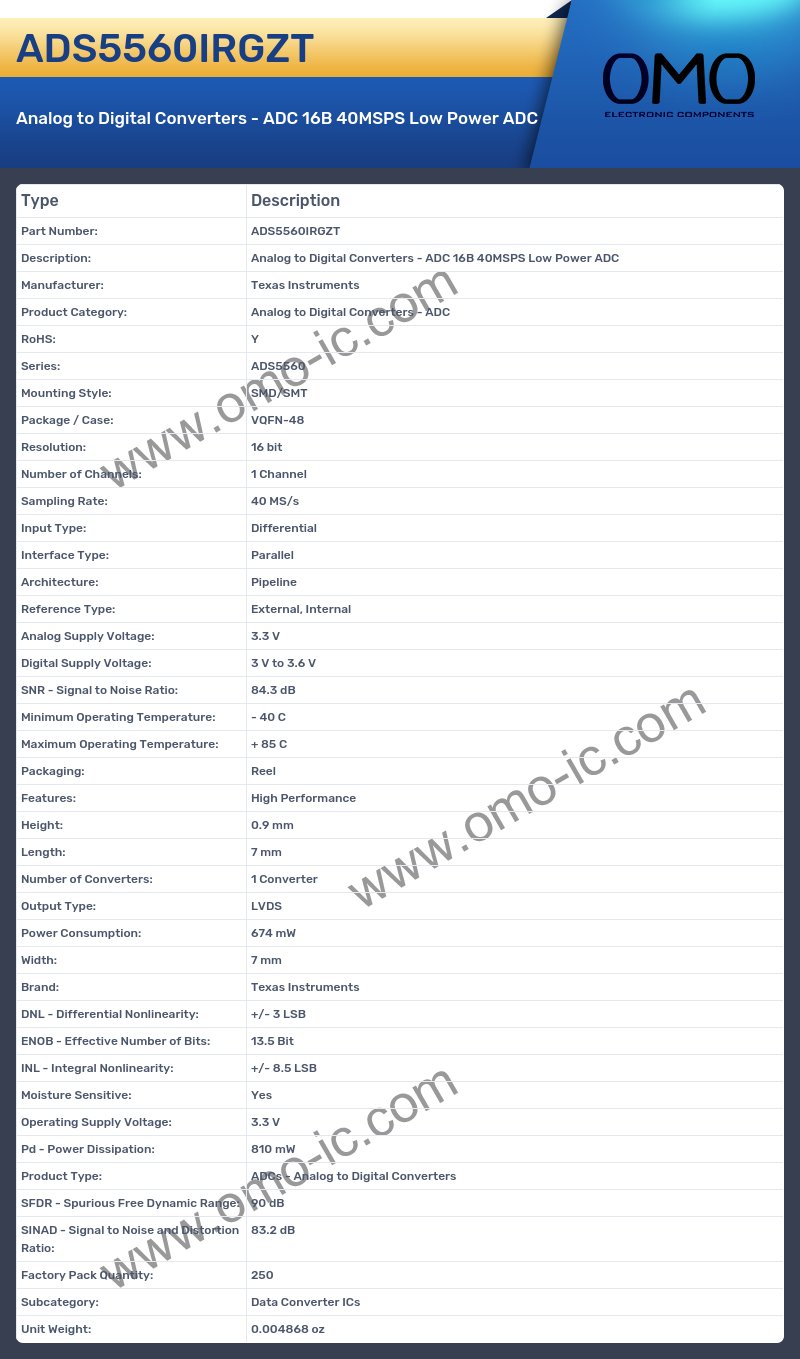

ADS5560IRGZT Image

ADS5560IRGZT Specifications

• Manufacturer: Texas Instruments
• Product Category: Analog to Digital Converters - ADC
• RoHS: Y
• Series: ADS5560
• Mounting Style: SMD/SMT
• Package / Case: VQFN-48
• Resolution: 16 bit
• Number of Channels: 1 Channel
• Sampling Rate: 40 MS/s
• Input Type: Differential
• Interface Type: Parallel
• Architecture: Pipeline
• Reference Type: External, Internal
• Analog Supply Voltage: 3.3 V
• Digital Supply Voltage: 3 V to 3.6 V
• SNR - Signal to Noise Ratio: 84.3 dB
• Minimum Operating Temperature: - 40 C
• Maximum Operating Temperature: + 85 C
• Packaging: Reel
• Features: High Performance
• Height: 0.9 mm
• Length: 7 mm
• Number of Converters: 1 Converter
• Output Type: LVDS
• Power Consumption: 674 mW
• Width: 7 mm
• Brand: Texas Instruments
• DNL - Differential Nonlinearity: +/- 3 LSB
• ENOB - Effective Number of Bits: 13.5 Bit
• INL - Integral Nonlinearity: +/- 8.5 LSB
• Moisture Sensitive: Yes
• Operating Supply Voltage: 3.3 V
• Pd - Power Dissipation: 810 mW
• Product Type: ADCs - Analog to Digital Converters
• SFDR - Spurious Free Dynamic Range: 90 dB
• SINAD - Signal to Noise and Distortion Ratio: 83.2 dB
• Factory Pack Quantity: 250
• Subcategory: Data Converter ICs
• Unit Weight: 0.004868 oz
