ADS7816UC Overview

This product is manufactured by Texas Instruments. The product can operate at a maximum temperature of SMD/SMT. SOIC-8 package/case type is utilized by this product. This product is equipped with 1 Channel for efficient performance. The sampling rate of this product is 200 kS/s. Pseudo-Differential input type Interface Type: 3-Wire, SPI SAR architecture External is the reference type. This product requires an 4.5 V to 5.25 V for proper operation. The minimum operating temperature of this product is - 40 C. The product can operate at a maximum temperature of + 85 C. Tube packaging for easy dispensing The height of the product is 1.58 mm. 4.9 mm long Texas Instruments is a trusted brand for quality electronics ADS7816EVM is a versatile development platform for hardware and software The +/- 0.75 LSB, ensuring accurate and precise analog-to-digital conversion. INL is within +/- 1 LSB Yes regarding Moisture Sensitivity 4.5 V to 5.25 V operating supply voltage range ADCs - Analog to Digital Converters product type 75 of 100 Data Converter ICs as subcategory 1. 0.002677 oz of Unit Weight

ADS7816UC Image

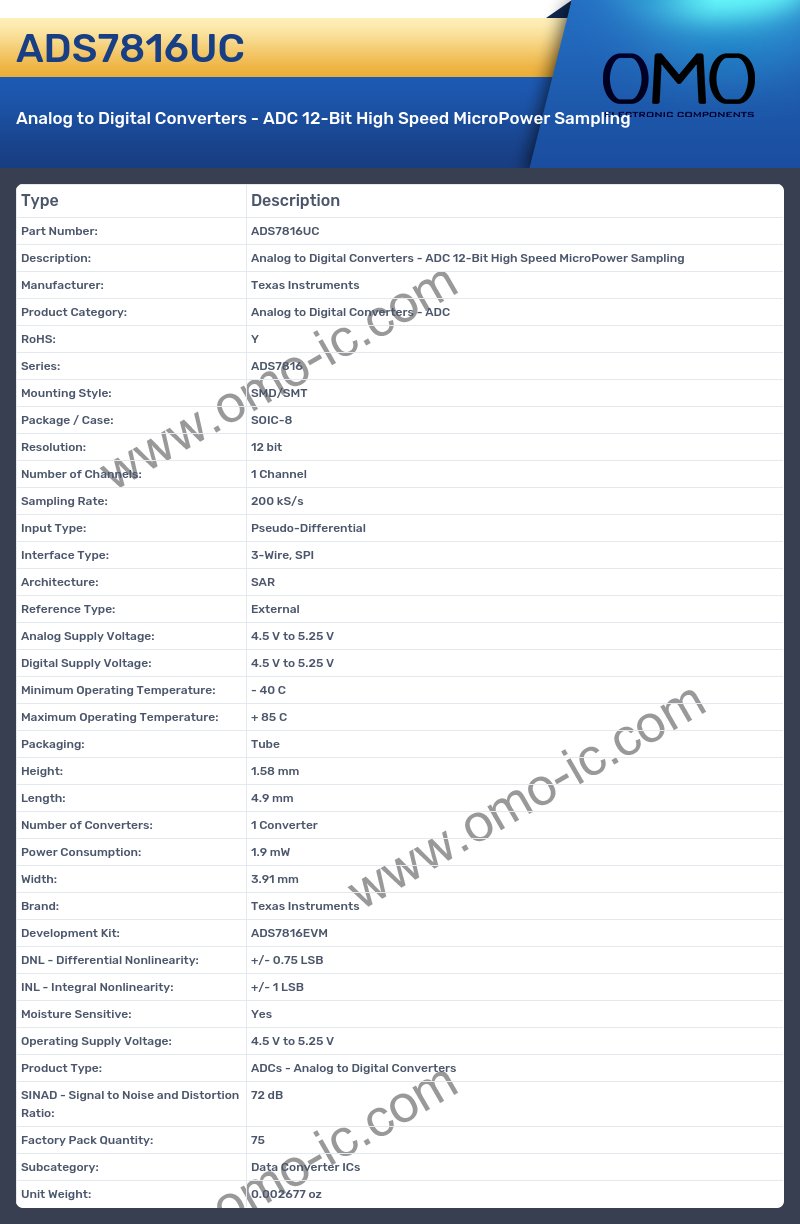

ADS7816UC Specifications

• Manufacturer: Texas Instruments
• Product Category: Analog to Digital Converters - ADC
• RoHS: Y
• Series: ADS7816
• Mounting Style: SMD/SMT
• Package / Case: SOIC-8
• Resolution: 12 bit
• Number of Channels: 1 Channel
• Sampling Rate: 200 kS/s
• Input Type: Pseudo-Differential
• Interface Type: 3-Wire, SPI
• Architecture: SAR
• Reference Type: External
• Analog Supply Voltage: 4.5 V to 5.25 V
• Digital Supply Voltage: 4.5 V to 5.25 V
• Minimum Operating Temperature: - 40 C
• Maximum Operating Temperature: + 85 C
• Packaging: Tube
• Height: 1.58 mm
• Length: 4.9 mm
• Number of Converters: 1 Converter
• Power Consumption: 1.9 mW
• Width: 3.91 mm
• Brand: Texas Instruments
• Development Kit: ADS7816EVM
• DNL - Differential Nonlinearity: +/- 0.75 LSB
• INL - Integral Nonlinearity: +/- 1 LSB
• Moisture Sensitive: Yes
• Operating Supply Voltage: 4.5 V to 5.25 V
• Product Type: ADCs - Analog to Digital Converters
• SINAD - Signal to Noise and Distortion Ratio: 72 dB
• Factory Pack Quantity: 75
• Subcategory: Data Converter ICs
• Unit Weight: 0.002677 oz
