ADS7822PC Overview

This product is manufactured by Texas Instruments. The product can operate at a maximum temperature of Through Hole. PDIP-8 package/case type is utilized by this product. This product is equipped with 1 Channel for efficient performance. The sampling rate of this product is 200 kS/s. Pseudo-Differential input type Interface Type: 3-Wire SAR architecture External is the reference type. This product requires an 2.7 V to 5.25 V for proper operation. The minimum operating temperature of this product is - 40 C. The product can operate at a maximum temperature of + 85 C. Tube packaging for easy dispensing The height of the product is 4.57 mm. 9.81 mm long This device belongs to the Precision ADC type. Texas Instruments is a trusted brand for quality electronics This product does not have a Shutdown feature, ensuring continuous operation. ADS7822EVM is a versatile development platform for hardware and software The 1 LSB, ensuring accurate and precise analog-to-digital conversion. INL is within 1 LSB 2.7 V to 3.6 V operating supply voltage range ADCs - Analog to Digital Converters product type 50 of 100 Data Converter ICs as subcategory THD is as low as - 78 dB. 1. 0.018455 oz of Unit Weight

ADS7822PC Image

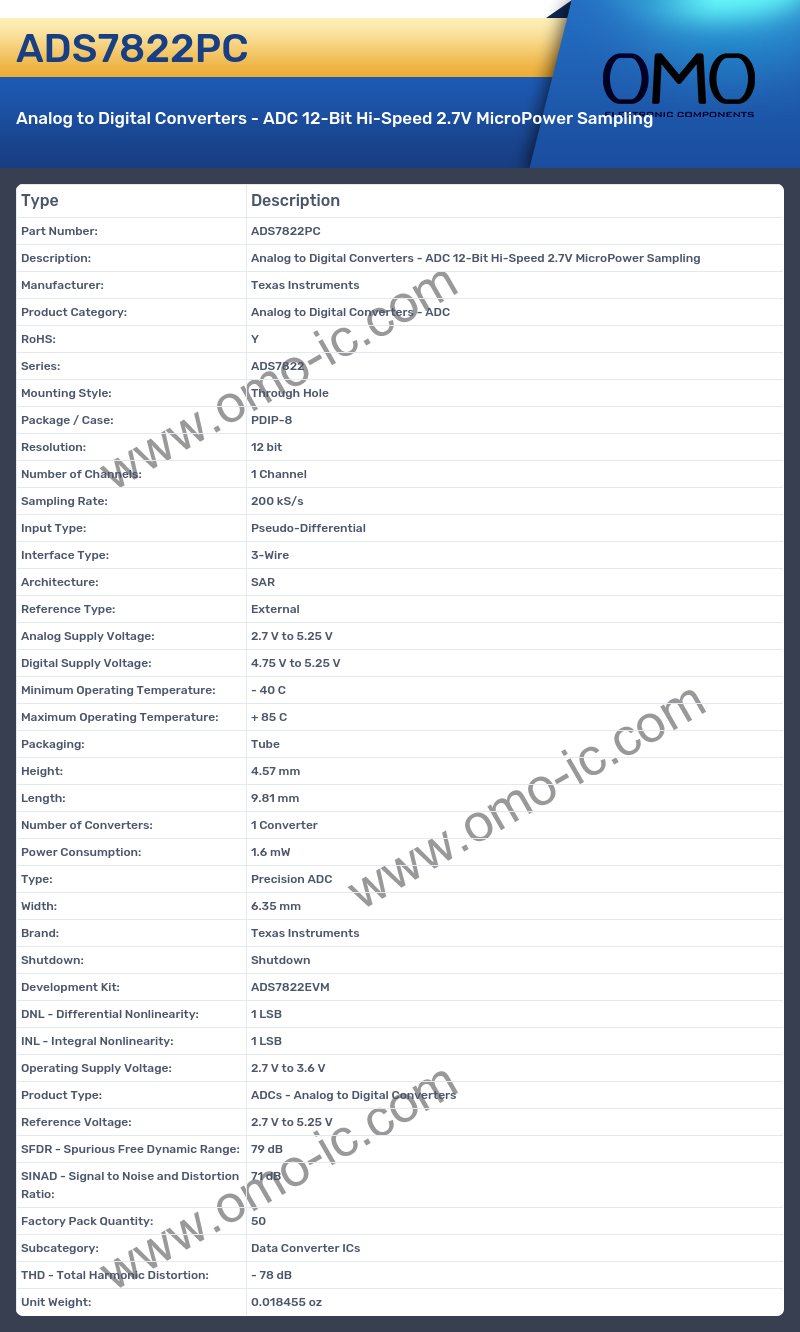

ADS7822PC Specifications

• Manufacturer: Texas Instruments
• Product Category: Analog to Digital Converters - ADC
• RoHS: Y
• Series: ADS7822
• Mounting Style: Through Hole
• Package / Case: PDIP-8
• Resolution: 12 bit
• Number of Channels: 1 Channel
• Sampling Rate: 200 kS/s
• Input Type: Pseudo-Differential
• Interface Type: 3-Wire
• Architecture: SAR
• Reference Type: External
• Analog Supply Voltage: 2.7 V to 5.25 V
• Digital Supply Voltage: 4.75 V to 5.25 V
• Minimum Operating Temperature: - 40 C
• Maximum Operating Temperature: + 85 C
• Packaging: Tube
• Height: 4.57 mm
• Length: 9.81 mm
• Number of Converters: 1 Converter
• Power Consumption: 1.6 mW
• Type: Precision ADC
• Width: 6.35 mm
• Brand: Texas Instruments
• Shutdown: Shutdown
• Development Kit: ADS7822EVM
• DNL - Differential Nonlinearity: 1 LSB
• INL - Integral Nonlinearity: 1 LSB
• Operating Supply Voltage: 2.7 V to 3.6 V
• Product Type: ADCs - Analog to Digital Converters
• Reference Voltage: 2.7 V to 5.25 V
• SFDR - Spurious Free Dynamic Range: 79 dB
• SINAD - Signal to Noise and Distortion Ratio: 71 dB
• Factory Pack Quantity: 50
• Subcategory: Data Converter ICs
• THD - Total Harmonic Distortion: - 78 dB
• Unit Weight: 0.018455 oz
