ADUM1100ARZ

ADUM1100ARZ Overview

This product is manufactured by Analog Devices Inc.. The product can operate at a maximum temperature of SMD/SMT. SOIC-8 package/case type is utilized by this product. This product is equipped with 1 Channel for efficient performance. Polarity type: Unidirectional 2.5 kVrms isolation voltage Magnetic Coupling isolation type The 25 Mb/s data rate; The propagation delay time is 18 ns. Supply Voltage - Max: 5.5 V Supply Voltage - Min: 3 V The minimum operating temperature of this product is - 40 C. The product can operate at a maximum temperature of + 125 C. Tube packaging for easy dispensing Digital Isolators This device belongs to the High Speed type. Analog Devices is a trusted brand for quality electronics The product has a maximum fall time of 3 ns (Typ). 3 ns (Typ) is the maximum rise time. 5.5 V operating supply voltage range 240 mW Digital Isolators product type General Purpose protocol supported 98 of 100 Interface ICs as subcategory 1. 0.019048 oz of Unit Weight

ADUM1100ARZ Image

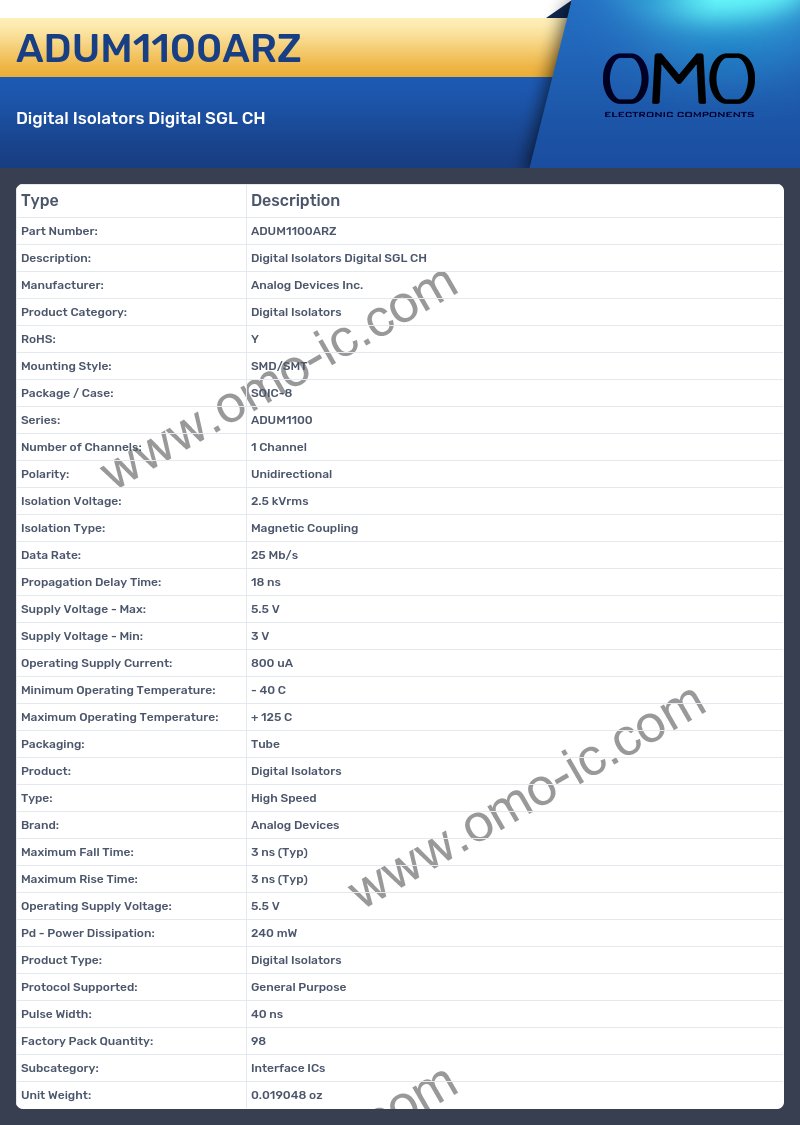

ADUM1100ARZ Specifications

• Manufacturer: Analog Devices Inc.
• Product Category: Digital Isolators
• RoHS: Y
• Mounting Style: SMD/SMT
• Package / Case: SOIC-8
• Series: ADUM1100
• Number of Channels: 1 Channel
• Polarity: Unidirectional
• Isolation Voltage: 2.5 kVrms
• Isolation Type: Magnetic Coupling
• Data Rate: 25 Mb/s
• Propagation Delay Time: 18 ns
• Supply Voltage - Max: 5.5 V
• Supply Voltage - Min: 3 V
• Operating Supply Current: 800 uA
• Minimum Operating Temperature: - 40 C
• Maximum Operating Temperature: + 125 C
• Packaging: Tube
• Product: Digital Isolators
• Type: High Speed
• Brand: Analog Devices
• Maximum Fall Time: 3 ns (Typ)
• Maximum Rise Time: 3 ns (Typ)
• Operating Supply Voltage: 5.5 V
• Pd - Power Dissipation: 240 mW
• Product Type: Digital Isolators
• Protocol Supported: General Purpose
• Pulse Width: 40 ns
• Factory Pack Quantity: 98
• Subcategory: Interface ICs
• Unit Weight: 0.019048 oz
