ATMEGA809-MF

ATMEGA809-MF Overview

This product is manufactured by Microchip. The product can operate at a maximum temperature of SMD/SMT. UQFN-48 package/case type is utilized by this product. This product's AVR is an ARM Cortex M3. This product has a Data Bus Width of 8 bit. The Maximum Clock Frequency of this product is 20 MHz. The Program Memory Size of this product is 8 kB. The Data RAM Size of this product is 1 kB. The ADC Resolution of this product is 10 bit. 1.8 V to 5.5 V operating supply voltage range The minimum operating temperature of this product is - 40 C. The product can operate at a maximum temperature of + 125 C. Tray packaging for easy dispensing MCU The Flash of this product is Flash. Microchip Technology is a trusted brand for quality electronics The SRAM. The Data ROM Size is 256 B. EEPROM is the data ROM type. Interface Type: I2C, SPI, USART The product has 16 Channel ADC channels. 8-bit Microcontrollers - MCU product type 490 of 100 Microcontrollers - MCU as subcategory Supply Voltage - Max: 5.5 V Supply Voltage - Min: 1.8 V

ATMEGA809-MF Image

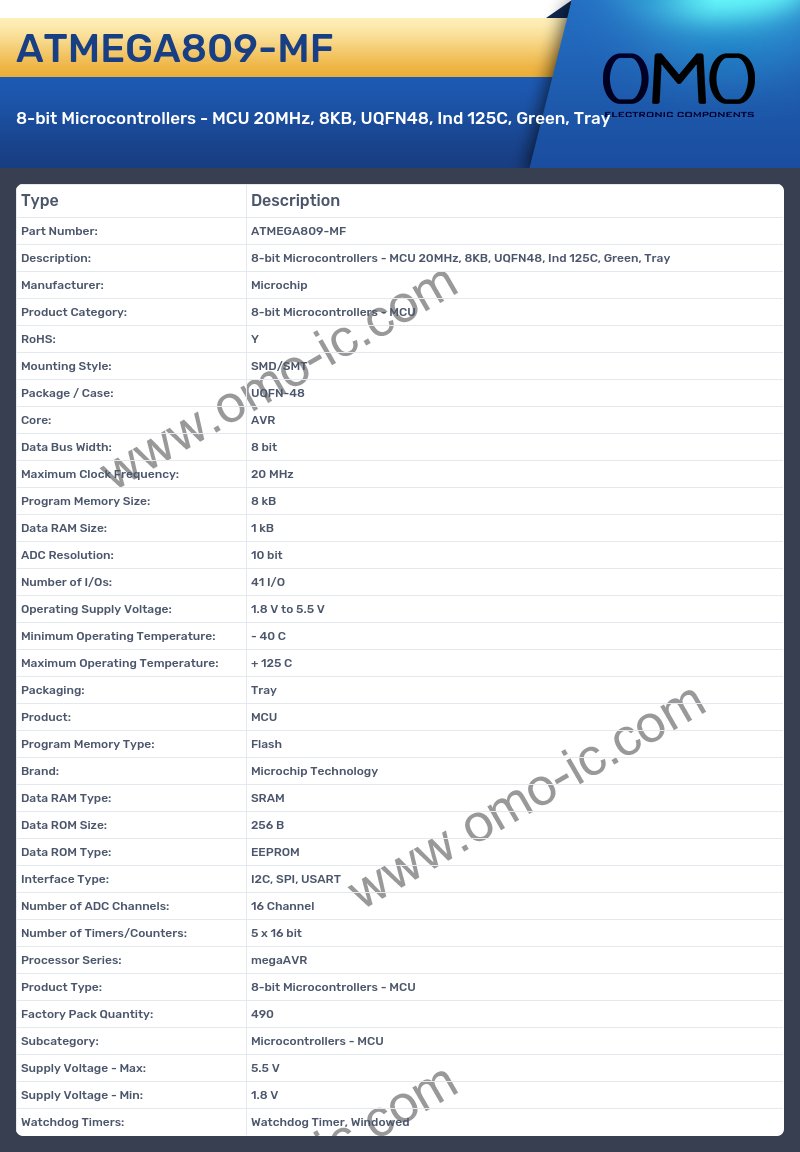

ATMEGA809-MF Specifications

• Manufacturer: Microchip
• Product Category: 8-bit Microcontrollers - MCU
• RoHS: Y
• Mounting Style: SMD/SMT
• Package / Case: UQFN-48
• Core: AVR
• Data Bus Width: 8 bit
• Maximum Clock Frequency: 20 MHz
• Program Memory Size: 8 kB
• Data RAM Size: 1 kB
• ADC Resolution: 10 bit
• Number of I/Os: 41 I/O
• Operating Supply Voltage: 1.8 V to 5.5 V
• Minimum Operating Temperature: - 40 C
• Maximum Operating Temperature: + 125 C
• Packaging: Tray
• Product: MCU
• Program Memory Type: Flash
• Brand: Microchip Technology
• Data RAM Type: SRAM
• Data ROM Size: 256 B
• Data ROM Type: EEPROM
• Interface Type: I2C, SPI, USART
• Number of ADC Channels: 16 Channel
• Number of Timers/Counters: 5 x 16 bit
• Processor Series: megaAVR
• Product Type: 8-bit Microcontrollers - MCU
• Factory Pack Quantity: 490
• Subcategory: Microcontrollers - MCU
• Supply Voltage - Max: 5.5 V
• Supply Voltage - Min: 1.8 V
• Watchdog Timers: Watchdog Timer, Windowed
