CD4013BM Overview

This product is manufactured by Texas Instruments. This product has 2 circuit. The product uses the CD4000 logic family. D-Type Flip-Flop. Polarity type: Inverting/Non-Inverting CMOS input type The output type is CMOS. The propagation delay time is 300 ns. This product has a - 1.5 mA, ensuring reliable performance in demanding applications. Low Level Output Current is 1.5 mA Supply Voltage - Min: 3 V Supply Voltage - Max: 18 V The minimum operating temperature of this product is - 55 C. The product can operate at a maximum temperature of + 125 C. The product can operate at a maximum temperature of SMD/SMT. SOIC-14 package/case type is utilized by this product. Tube packaging for easy dispensing t's a Dual CMOS The height of the product is 1.58 mm. 8.65 mm long Texas Instruments is a trusted brand for quality electronics This product is equipped with 2 for efficient performance. 10 V operating supply voltage range Flip Flops product type Set, Reset Reset Type 50 of 100 Logic ICs as subcategory 1. 0.004586 oz of Unit Weight

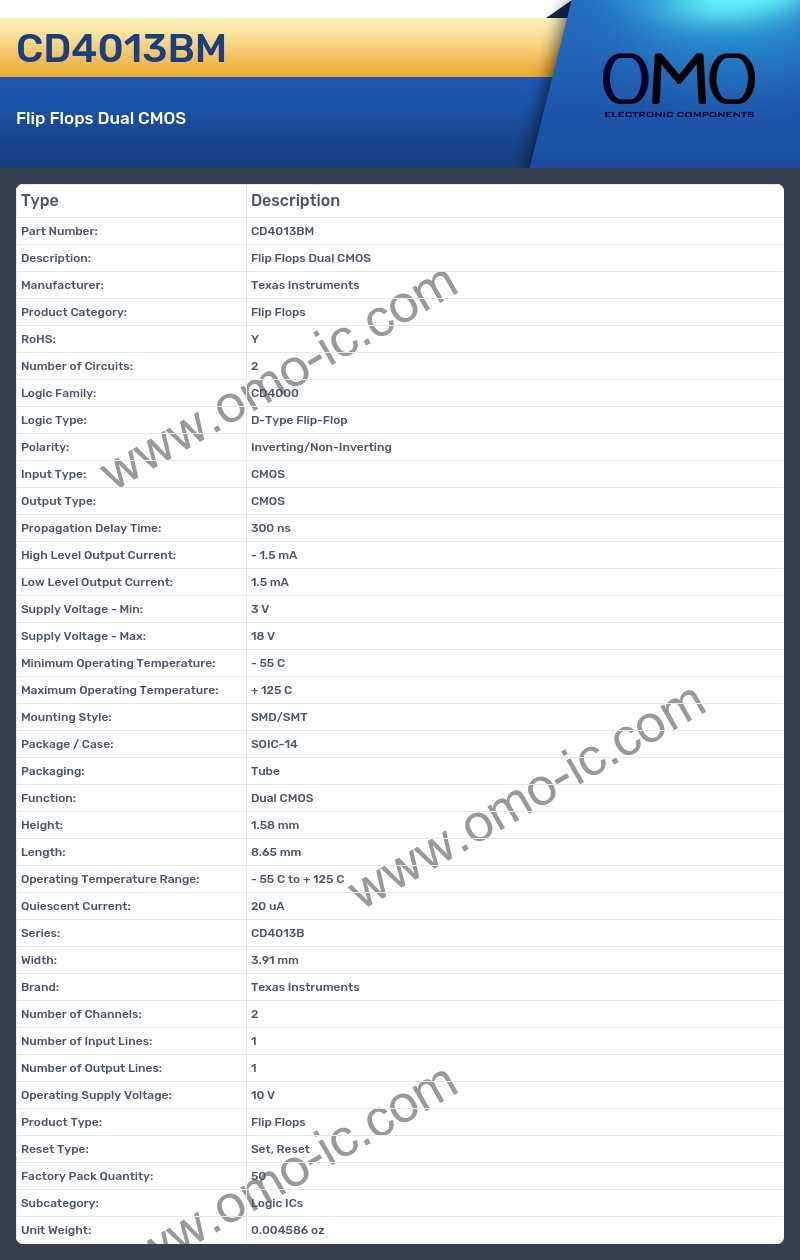

CD4013BM Image

CD4013BM Specifications

• Manufacturer: Texas Instruments
• Product Category: Flip Flops
• RoHS: Y
• Number of Circuits: 2
• Logic Family: CD4000
• Logic Type: D-Type Flip-Flop
• Polarity: Inverting/Non-Inverting
• Input Type: CMOS
• Output Type: CMOS
• Propagation Delay Time: 300 ns
• High Level Output Current: - 1.5 mA
• Low Level Output Current: 1.5 mA
• Supply Voltage - Min: 3 V
• Supply Voltage - Max: 18 V
• Minimum Operating Temperature: - 55 C
• Maximum Operating Temperature: + 125 C
• Mounting Style: SMD/SMT
• Package / Case: SOIC-14
• Packaging: Tube
• Function: Dual CMOS
• Height: 1.58 mm
• Length: 8.65 mm
• Operating Temperature Range: - 55 C to + 125 C
• Quiescent Current: 20 uA
• Series: CD4013B
• Width: 3.91 mm
• Brand: Texas Instruments
• Number of Channels: 2
• Number of Input Lines: 1
• Number of Output Lines: 1
• Operating Supply Voltage: 10 V
• Product Type: Flip Flops
• Reset Type: Set, Reset
• Factory Pack Quantity: 50
• Subcategory: Logic ICs
• Unit Weight: 0.004586 oz
