CD4015BE Overview

This product is manufactured by Texas Instruments. Serial to Parallel is the counting sequence used. This product has 2 circuit. Number of bits: 4 bit PDIP-16 package/case type is utilized by this product. The product uses the 40 logic family. CMOS. The propagation delay time is 320 ns, 160 ns, 120 ns. Supply Voltage - Max: 18 V The minimum operating temperature of this product is - 55 C. The product can operate at a maximum temperature of + 125 C. Tube packaging for easy dispensing t's a Dual 4 Stage Static Texas Instruments is a trusted brand for quality electronics The product can operate at a maximum temperature of Through Hole. 0.5 V to 20 V operating supply voltage range Counter Shift Registers product type 25 of 100 Logic ICs as subcategory 1. 0.033570 oz of Unit Weight

CD4015BE Image

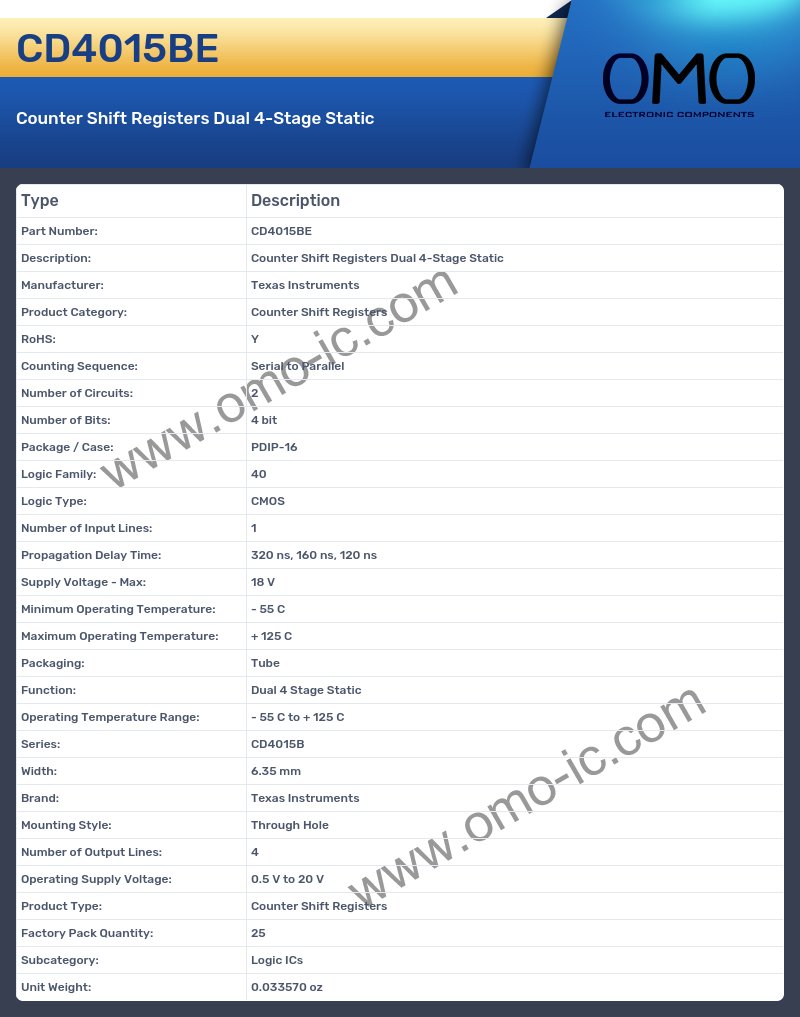

CD4015BE Specifications

• Manufacturer: Texas Instruments
• Product Category: Counter Shift Registers
• RoHS: Y
• Counting Sequence: Serial to Parallel
• Number of Circuits: 2
• Number of Bits: 4 bit
• Package / Case: PDIP-16
• Logic Family: 40
• Logic Type: CMOS
• Number of Input Lines: 1
• Propagation Delay Time: 320 ns, 160 ns, 120 ns
• Supply Voltage - Max: 18 V
• Minimum Operating Temperature: - 55 C
• Maximum Operating Temperature: + 125 C
• Packaging: Tube
• Function: Dual 4 Stage Static
• Operating Temperature Range: - 55 C to + 125 C
• Series: CD4015B
• Width: 6.35 mm
• Brand: Texas Instruments
• Mounting Style: Through Hole
• Number of Output Lines: 4
• Operating Supply Voltage: 0.5 V to 20 V
• Product Type: Counter Shift Registers
• Factory Pack Quantity: 25
• Subcategory: Logic ICs
• Unit Weight: 0.033570 oz
