CD4041UBM96

CD4041UBM96 Overview

This product is manufactured by Texas Instruments. Polarity type: Inverting, Non-Inverting Supply Voltage - Max: 18 V Supply Voltage - Min: 3 V The minimum operating temperature of this product is - 55 C. The product can operate at a maximum temperature of + 125 C. The product can operate at a maximum temperature of SMD/SMT. SOIC-14 package/case type is utilized by this product. Reel packaging for easy dispensing t's a Buffer The height of the product is 1.5 mm (Max). 8.75 mm (Max) long The output type is CMOS. Texas Instruments is a trusted brand for quality electronics The product uses the CD4000 logic family. CMOS. This product is equipped with 4 for efficient performance. Maximum supply current: 20 uA This product has a - 24 mA, ensuring reliable performance in demanding applications. Single-Ended is the input signal type. Low Level Output Current is 24 mA 3 V to 18 V operating supply voltage range 500 mW (1/2 W) Buffers & Line Drivers product type The propagation delay time is 120 ns at 5 V, 70 ns at 10 V, 50 ns at 15 V. 2500 of 100 Logic ICs as subcategory 1. 0.004564 oz of Unit Weight

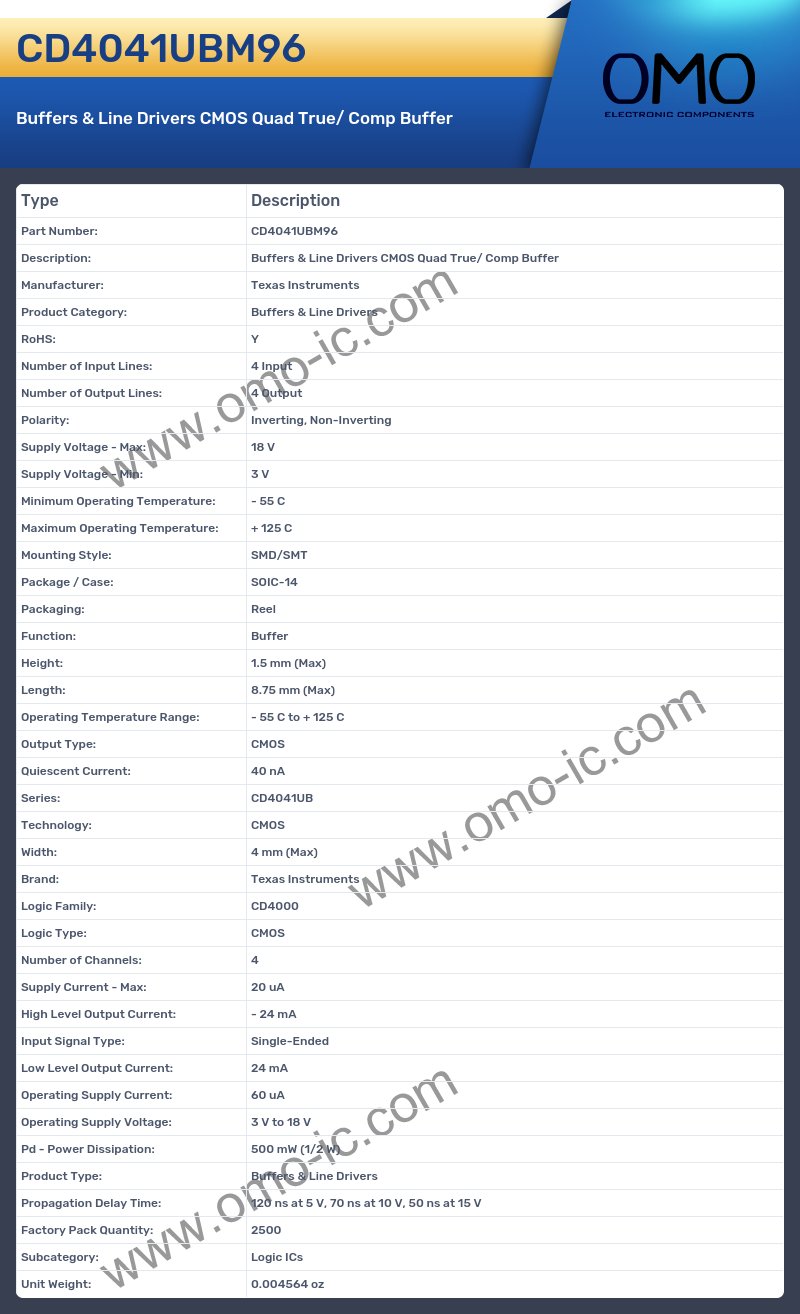

CD4041UBM96 Image

CD4041UBM96 Specifications

• Manufacturer: Texas Instruments
• Product Category: Buffers & Line Drivers
• RoHS: Y
• Number of Input Lines: 4 Input
• Number of Output Lines: 4 Output
• Polarity: Inverting, Non-Inverting
• Supply Voltage - Max: 18 V
• Supply Voltage - Min: 3 V
• Minimum Operating Temperature: - 55 C
• Maximum Operating Temperature: + 125 C
• Mounting Style: SMD/SMT
• Package / Case: SOIC-14
• Packaging: Reel
• Function: Buffer
• Height: 1.5 mm (Max)
• Length: 8.75 mm (Max)
• Operating Temperature Range: - 55 C to + 125 C
• Output Type: CMOS
• Quiescent Current: 40 nA
• Series: CD4041UB
• Technology: CMOS
• Width: 4 mm (Max)
• Brand: Texas Instruments
• Logic Family: CD4000
• Logic Type: CMOS
• Number of Channels: 4
• Supply Current - Max: 20 uA
• High Level Output Current: - 24 mA
• Input Signal Type: Single-Ended
• Low Level Output Current: 24 mA
• Operating Supply Current: 60 uA
• Operating Supply Voltage: 3 V to 18 V
• Pd - Power Dissipation: 500 mW (1/2 W)
• Product Type: Buffers & Line Drivers
• Propagation Delay Time: 120 ns at 5 V, 70 ns at 10 V, 50 ns at 15 V
• Factory Pack Quantity: 2500
• Subcategory: Logic ICs
• Unit Weight: 0.004564 oz
