CD4053BM

CD4053BM Overview

This product is manufactured by Texas Instruments. Multiplexers/Demultiplexers This product is equipped with 3 Channel for efficient performance. This product has a 3 x 2:1 configuration. Our product has a maximum 1.2 us. Our product has a maximum 420 ns. 5 V to 18 V operating supply voltage range The minimum operating temperature of this product is - 55 C. The product can operate at a maximum temperature of + 125 C. The product can operate at a maximum temperature of SMD/SMT. SOP-16 package/case type is utilized by this product. Tube packaging for easy dispensing This product has a 30 Mhz of 2.7 GHz to 3.5 GHz. The height of the product is 4.57 mm (Max). 19.94 mm (Max) long Supply Type: Single Supply, Dual Supply Texas Instruments is a trusted brand for quality electronics Maximum supply current: 100 uA 1. The maximum dual supply voltage is +/- 9 V. 700 mW Multiplexer Switch ICs product type The propagation delay time is 55 ns at 5 V, 35 ns at 10 V, 25 ns at 15 V. 40 of 100 Switch ICs as subcategory Supply Voltage - Max: 18 V Supply Voltage - Min: 5 V 1. 0.004998 oz of Unit Weight

CD4053BM Image

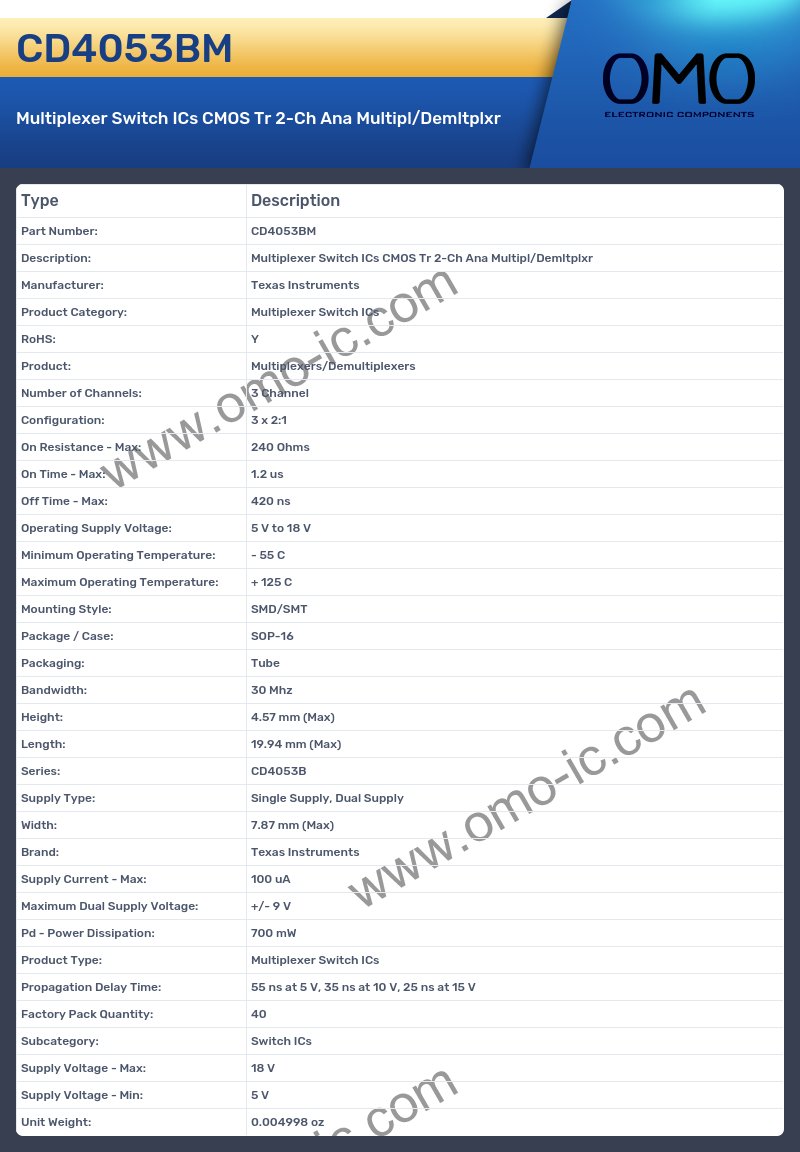

CD4053BM Specifications

• Manufacturer: Texas Instruments
• Product Category: Multiplexer Switch ICs
• RoHS: Y
• Product: Multiplexers/Demultiplexers
• Number of Channels: 3 Channel
• Configuration: 3 x 2:1
• On Resistance - Max: 240 Ohms
• On Time - Max: 1.2 us
• Off Time - Max: 420 ns
• Operating Supply Voltage: 5 V to 18 V
• Minimum Operating Temperature: - 55 C
• Maximum Operating Temperature: + 125 C
• Mounting Style: SMD/SMT
• Package / Case: SOP-16
• Packaging: Tube
• Bandwidth: 30 Mhz
• Height: 4.57 mm (Max)
• Length: 19.94 mm (Max)
• Series: CD4053B
• Supply Type: Single Supply, Dual Supply
• Width: 7.87 mm (Max)
• Brand: Texas Instruments
• Supply Current - Max: 100 uA
• Maximum Dual Supply Voltage: +/- 9 V
• Pd - Power Dissipation: 700 mW
• Product Type: Multiplexer Switch ICs
• Propagation Delay Time: 55 ns at 5 V, 35 ns at 10 V, 25 ns at 15 V
• Factory Pack Quantity: 40
• Subcategory: Switch ICs
• Supply Voltage - Max: 18 V
• Supply Voltage - Min: 5 V
• Unit Weight: 0.004998 oz
