CD4076BPW Overview

This product is manufactured by Texas Instruments. This product has 1 circuit. The product uses the CD4000 logic family. CMOS. Polarity type: Non-Inverting CMOS input type The output type is 3-State. The propagation delay time is 600 ns. This product has a - 1.5 mA, ensuring reliable performance in demanding applications. Low Level Output Current is 1.5 mA Supply Voltage - Min: 3 V Supply Voltage - Max: 18 V The minimum operating temperature of this product is - 55 C. The product can operate at a maximum temperature of + 125 C. The product can operate at a maximum temperature of SMD/SMT. TSSOP-16 package/case type is utilized by this product. Tube packaging for easy dispensing t's a D-Type Bus Interface The height of the product is 1.15 mm. 5 mm long Texas Instruments is a trusted brand for quality electronics This product is equipped with 4 for efficient performance. 10 V operating supply voltage range Flip Flops product type Master Reset Reset Type 90 of 100 Logic ICs as subcategory 1. 0.002183 oz of Unit Weight

CD4076BPW Image

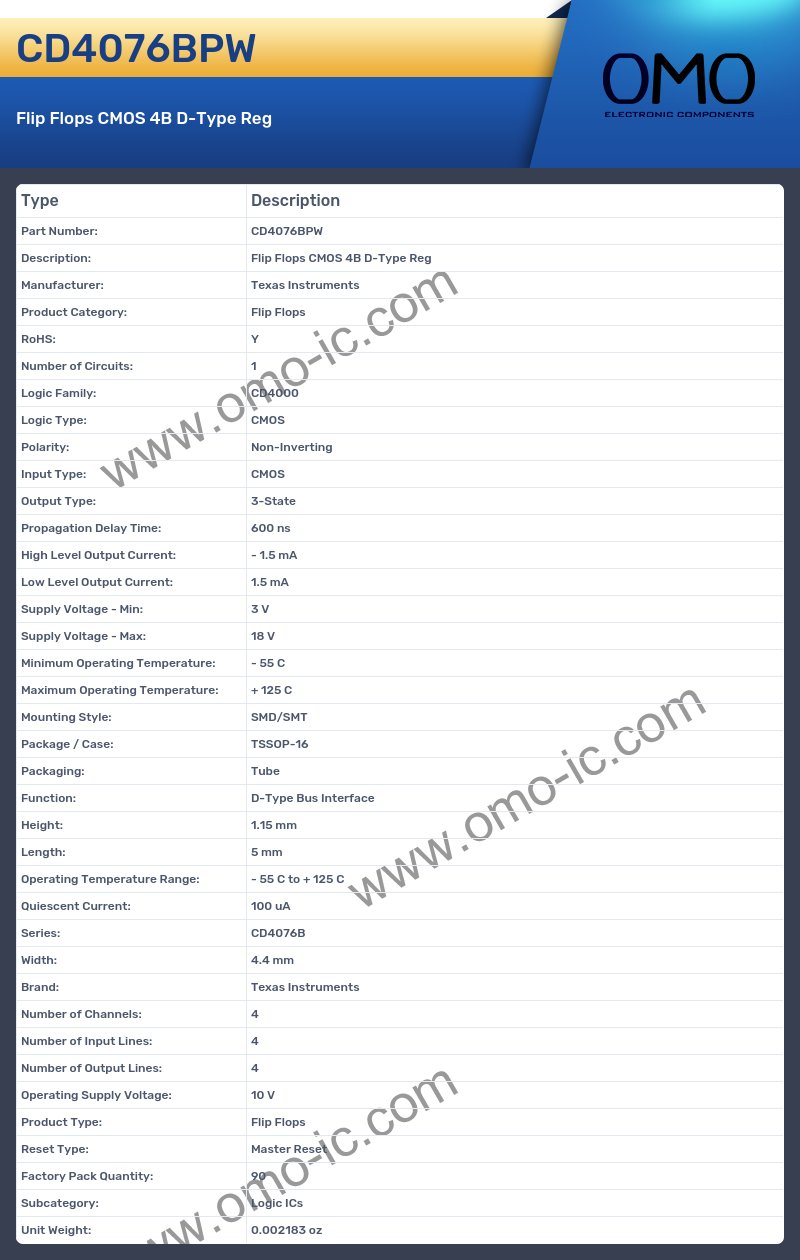

CD4076BPW Specifications

• Manufacturer: Texas Instruments
• Product Category: Flip Flops
• RoHS: Y
• Number of Circuits: 1
• Logic Family: CD4000
• Logic Type: CMOS
• Polarity: Non-Inverting
• Input Type: CMOS
• Output Type: 3-State
• Propagation Delay Time: 600 ns
• High Level Output Current: - 1.5 mA
• Low Level Output Current: 1.5 mA
• Supply Voltage - Min: 3 V
• Supply Voltage - Max: 18 V
• Minimum Operating Temperature: - 55 C
• Maximum Operating Temperature: + 125 C
• Mounting Style: SMD/SMT
• Package / Case: TSSOP-16
• Packaging: Tube
• Function: D-Type Bus Interface
• Height: 1.15 mm
• Length: 5 mm
• Operating Temperature Range: - 55 C to + 125 C
• Quiescent Current: 100 uA
• Series: CD4076B
• Width: 4.4 mm
• Brand: Texas Instruments
• Number of Channels: 4
• Number of Input Lines: 4
• Number of Output Lines: 4
• Operating Supply Voltage: 10 V
• Product Type: Flip Flops
• Reset Type: Master Reset
• Factory Pack Quantity: 90
• Subcategory: Logic ICs
• Unit Weight: 0.002183 oz
