CD74HC259E

CD74HC259E Overview

This product is manufactured by Texas Instruments. This product has 2 Circuit circuit. Addressable Latch. The product uses the 74HC logic family. Polarity type: Non-Inverting This product has a - 5.2 mA, ensuring reliable performance in demanding applications. Low Level Output Current is 32 mA The propagation delay time is 185 ns at 2 V, 37 ns at 4.5 V, 31 ns at 6 V. Supply Voltage - Max: 6 V Supply Voltage - Min: 2 V The minimum operating temperature of this product is - 55 C. The product can operate at a maximum temperature of + 125 C. PDIP-16 package/case type is utilized by this product. Tube packaging for easy dispensing t's a Addressable The height of the product is 4.57 mm. 19.3 mm long This device belongs to the D-Type type. Texas Instruments is a trusted brand for quality electronics The product can operate at a maximum temperature of Through Hole. This product is equipped with 8 Channels for efficient performance. Maximum supply current: 8 uA 2 V to 6 V operating supply voltage range Latches product type Master Reset Reset Type 25 of 100 Logic ICs as subcategory 1. 0.033570 oz of Unit Weight

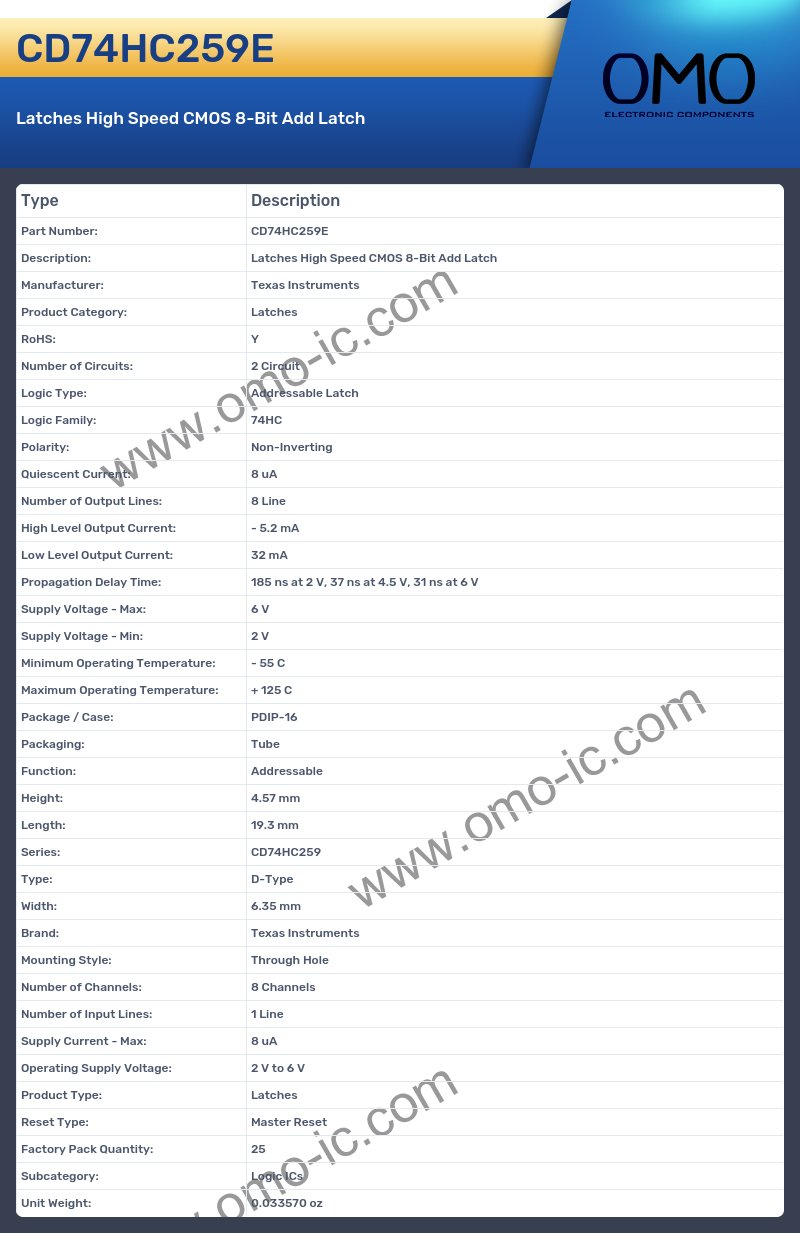

CD74HC259E Image

CD74HC259E Specifications

• Manufacturer: Texas Instruments
• Product Category: Latches
• RoHS: Y
• Number of Circuits: 2 Circuit
• Logic Type: Addressable Latch
• Logic Family: 74HC
• Polarity: Non-Inverting
• Quiescent Current: 8 uA
• Number of Output Lines: 8 Line
• High Level Output Current: - 5.2 mA
• Low Level Output Current: 32 mA
• Propagation Delay Time: 185 ns at 2 V, 37 ns at 4.5 V, 31 ns at 6 V
• Supply Voltage - Max: 6 V
• Supply Voltage - Min: 2 V
• Minimum Operating Temperature: - 55 C
• Maximum Operating Temperature: + 125 C
• Package / Case: PDIP-16
• Packaging: Tube
• Function: Addressable
• Height: 4.57 mm
• Length: 19.3 mm
• Series: CD74HC259
• Type: D-Type
• Width: 6.35 mm
• Brand: Texas Instruments
• Mounting Style: Through Hole
• Number of Channels: 8 Channels
• Number of Input Lines: 1 Line
• Supply Current - Max: 8 uA
• Operating Supply Voltage: 2 V to 6 V
• Product Type: Latches
• Reset Type: Master Reset
• Factory Pack Quantity: 25
• Subcategory: Logic ICs
• Unit Weight: 0.033570 oz
