CSD16570Q5BT

CSD16570Q5BT Overview

This product is manufactured by Texas Instruments. The product can operate at a maximum temperature of SMD/SMT. VSON-Clip-8 package/case type is utilized by this product. This product is equipped with 1 Channel for efficient performance. Vds rating of 25 V 100 A continuous drain current Rds On value of 680 uOhms Gate-Source Threshold Voltage Range: 1.5 V Gate-Source Voltage: 20 V The minimum operating temperature of this product is - 40 C. The product can operate at a maximum temperature of + 85 C. 195 W This product has a Single configuration. The product's NexFET is Blue Gecko. Reel packaging for easy dispensing The height of the product is 1 mm. 6 mm long The Transistor Type is 1 N-Channel. Texas Instruments is a trusted brand for quality electronics 72 ns fall time MOSFET product type Rise Time is 43 ns. 250 of 100 MOSFETs as subcategory Turn-off delay time is 156 ns. The typical turn-on delay time is 5 ns. 1. 0.000847 oz of Unit Weight

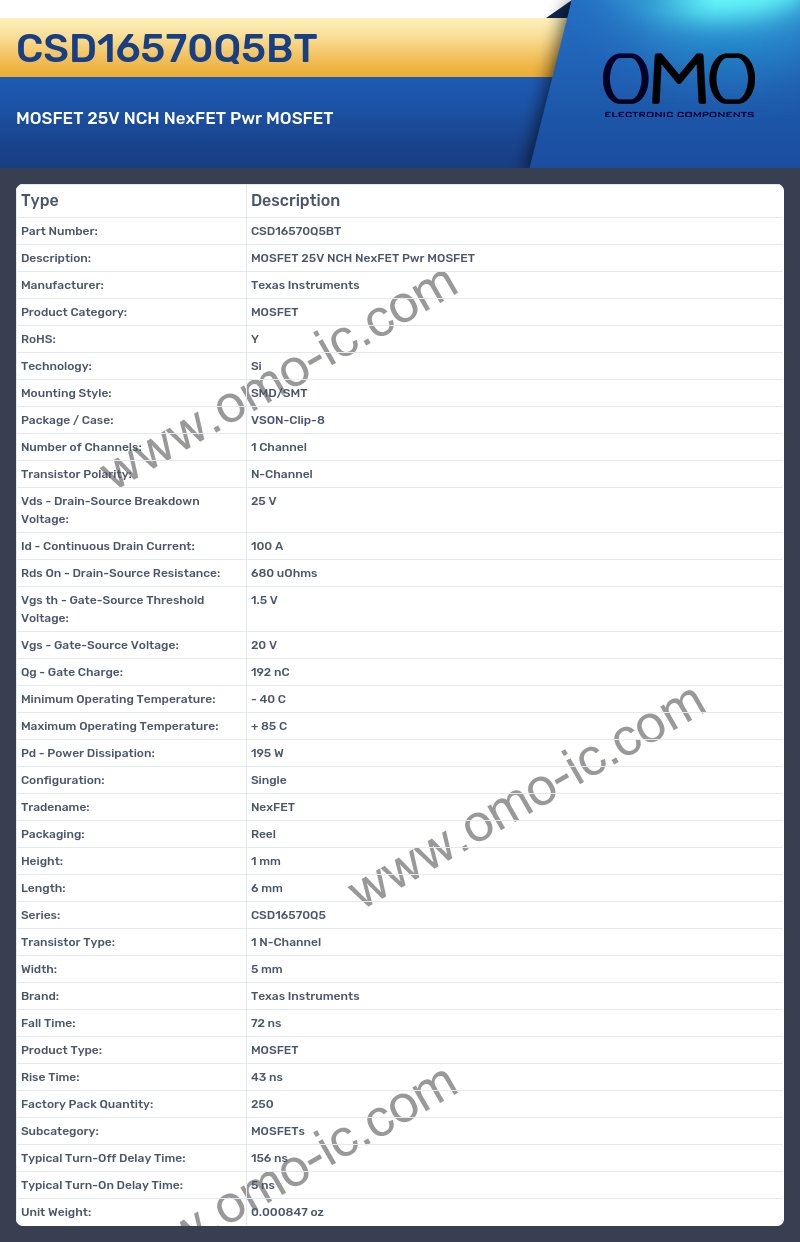

CSD16570Q5BT Image

CSD16570Q5BT Specifications

• Manufacturer: Texas Instruments
• Product Category: MOSFET
• RoHS: Y
• Technology: Si
• Mounting Style: SMD/SMT
• Package / Case: VSON-Clip-8
• Number of Channels: 1 Channel
• Transistor Polarity: N-Channel
• Vds - Drain-Source Breakdown Voltage: 25 V
• Id - Continuous Drain Current: 100 A
• Rds On - Drain-Source Resistance: 680 uOhms
• Vgs th - Gate-Source Threshold Voltage: 1.5 V
• Vgs - Gate-Source Voltage: 20 V
• Qg - Gate Charge: 192 nC
• Minimum Operating Temperature: - 40 C
• Maximum Operating Temperature: + 85 C
• Pd - Power Dissipation: 195 W
• Configuration: Single
• Tradename: NexFET
• Packaging: Reel
• Height: 1 mm
• Length: 6 mm
• Series: CSD16570Q5
• Transistor Type: 1 N-Channel
• Width: 5 mm
• Brand: Texas Instruments
• Fall Time: 72 ns
• Product Type: MOSFET
• Rise Time: 43 ns
• Factory Pack Quantity: 250
• Subcategory: MOSFETs
• Typical Turn-Off Delay Time: 156 ns
• Typical Turn-On Delay Time: 5 ns
• Unit Weight: 0.000847 oz
