CSD17301Q5A

CSD17301Q5A Overview

This product is manufactured by Texas Instruments. The product can operate at a maximum temperature of SMD/SMT. VSONP-8 package/case type is utilized by this product. This product is equipped with 1 Channel for efficient performance. Vds rating of 30 V 100 A continuous drain current Rds On value of 3 mOhms Gate-Source Threshold Voltage Range: 1.1 V Gate-Source Voltage: 10 V The minimum operating temperature of this product is - 55 C. The product can operate at a maximum temperature of + 150 C. 3.2 W This product has a Single configuration. The product's NexFET is Blue Gecko. Reel packaging for easy dispensing The height of the product is 1 mm. 6 mm long The Transistor Type is 1 N-Channel. This device belongs to the Driver type. Texas Instruments is a trusted brand for quality electronics 10.5 ns fall time MOSFET product type Rise Time is 16.2 ns. 2500 of 100 MOSFETs as subcategory 1. 0.003527 oz of Unit Weight

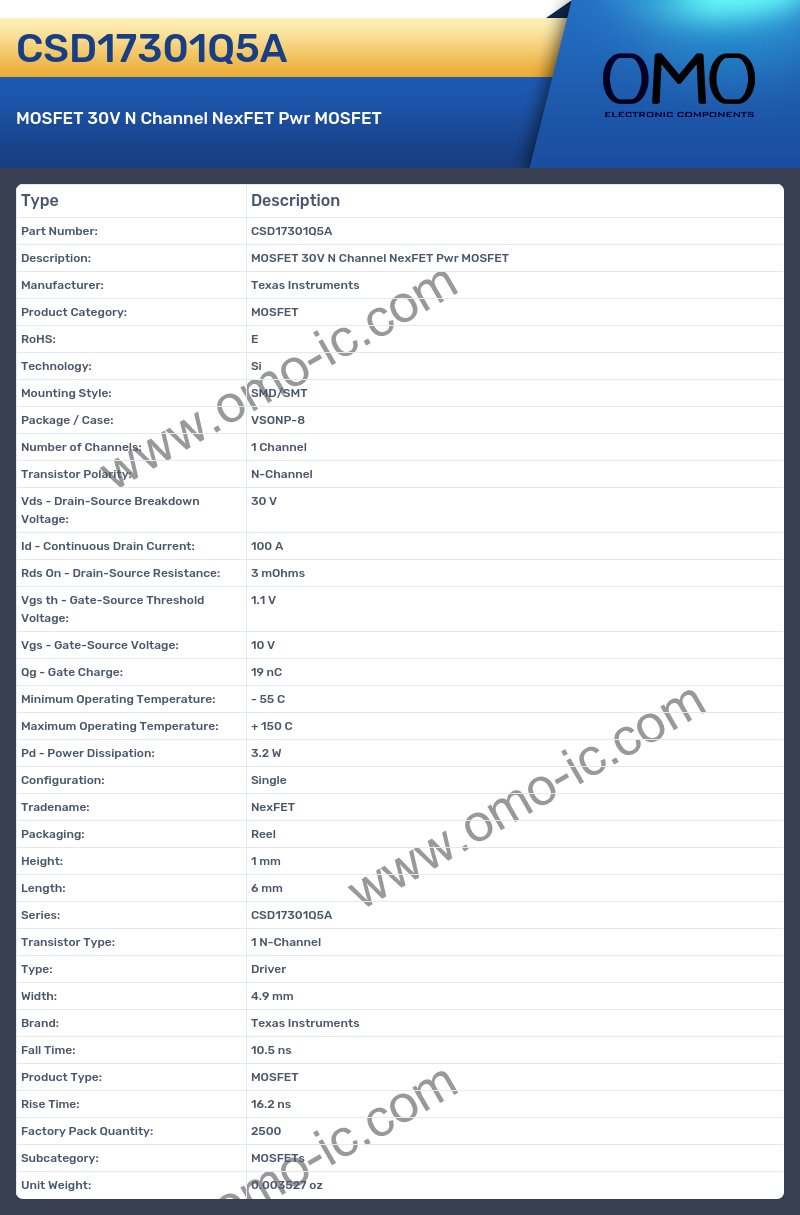

CSD17301Q5A Image

CSD17301Q5A Specifications

• Manufacturer: Texas Instruments
• Product Category: MOSFET
• RoHS: E
• Technology: Si
• Mounting Style: SMD/SMT
• Package / Case: VSONP-8
• Number of Channels: 1 Channel
• Transistor Polarity: N-Channel
• Vds - Drain-Source Breakdown Voltage: 30 V
• Id - Continuous Drain Current: 100 A
• Rds On - Drain-Source Resistance: 3 mOhms
• Vgs th - Gate-Source Threshold Voltage: 1.1 V
• Vgs - Gate-Source Voltage: 10 V
• Qg - Gate Charge: 19 nC
• Minimum Operating Temperature: - 55 C
• Maximum Operating Temperature: + 150 C
• Pd - Power Dissipation: 3.2 W
• Configuration: Single
• Tradename: NexFET
• Packaging: Reel
• Height: 1 mm
• Length: 6 mm
• Series: CSD17301Q5A
• Transistor Type: 1 N-Channel
• Type: Driver
• Width: 4.9 mm
• Brand: Texas Instruments
• Fall Time: 10.5 ns
• Product Type: MOSFET
• Rise Time: 16.2 ns
• Factory Pack Quantity: 2500
• Subcategory: MOSFETs
• Unit Weight: 0.003527 oz
