This product is manufactured by Vishay. The product can operate at a maximum temperature of SMD/SMT. SO-8 package/case type is utilized by this product. This product is equipped with 2 Channel for efficient performance. Vds rating of 20 V 8 A continuous drain current Rds On value of 18 mOhms Gate-Source Threshold Voltage Range: 600 mV Gate-Source Voltage: 4.5 V The minimum operating temperature of this product is - 55 C. The product can operate at a maximum temperature of + 150 C. 3.1 W This product has a Dual configuration. The Channel Mode is set to Enhancement. The product's TrenchFET is Blue Gecko. Reel packaging for easy dispensing The height of the product is 1.75 mm. 4.9 mm long The Transistor Type is 2 N-Channel. Vishay / Siliconix is a trusted brand for quality electronics Minimum forward transconductance of 45 S 12 ns fall time MOSFET product type Rise Time is 10 ns. 2500 of 100 MOSFETs as subcategory Turn-off delay time is 35 ns. The typical turn-on delay time is 15 ns. This product is also known by the SI9926CDY-E3 number of 934069005115. 1. 0.006596 oz of Unit Weight

CSD17309Q3 Image

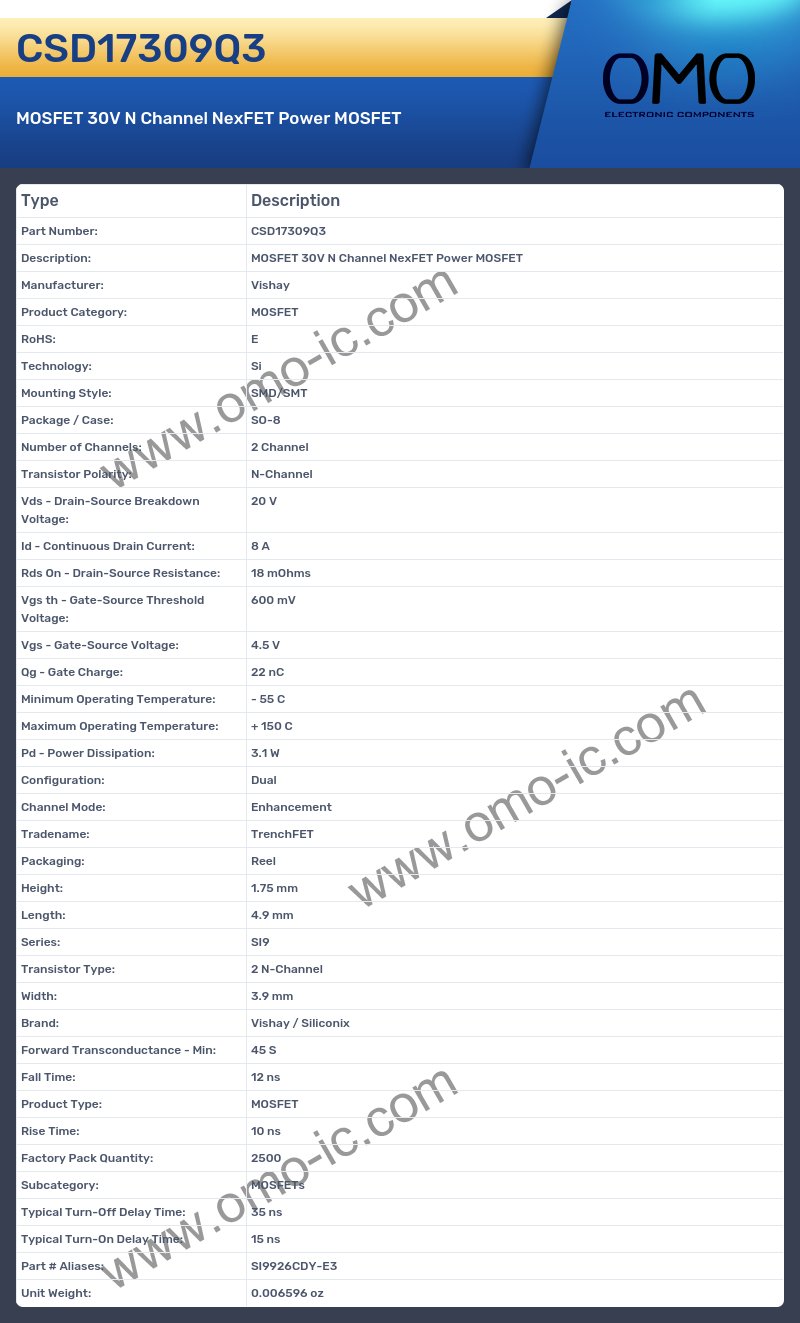

CSD17309Q3 Specifications

• Manufacturer: Vishay
• Product Category: MOSFET
• RoHS: E
• Technology: Si
• Mounting Style: SMD/SMT
• Package / Case: SO-8
• Number of Channels: 2 Channel
• Transistor Polarity: N-Channel
• Vds - Drain-Source Breakdown Voltage: 20 V
• Id - Continuous Drain Current: 8 A
• Rds On - Drain-Source Resistance: 18 mOhms
• Vgs th - Gate-Source Threshold Voltage: 600 mV
• Vgs - Gate-Source Voltage: 4.5 V
• Qg - Gate Charge: 22 nC
• Minimum Operating Temperature: - 55 C
• Maximum Operating Temperature: + 150 C
• Pd - Power Dissipation: 3.1 W
• Configuration: Dual
• Channel Mode: Enhancement
• Tradename: TrenchFET
• Packaging: Reel
• Height: 1.75 mm
• Length: 4.9 mm
• Series: SI9
• Transistor Type: 2 N-Channel
• Width: 3.9 mm
• Brand: Vishay / Siliconix
• Forward Transconductance - Min: 45 S
• Fall Time: 12 ns
• Product Type: MOSFET
• Rise Time: 10 ns
• Factory Pack Quantity: 2500
• Subcategory: MOSFETs
• Typical Turn-Off Delay Time: 35 ns
• Typical Turn-On Delay Time: 15 ns
• Part # Aliases: SI9926CDY-E3
• Unit Weight: 0.006596 oz
