CSD17575Q3T Overview

This product is manufactured by Texas Instruments. The product can operate at a maximum temperature of SMD/SMT. VSON-Clip-8 package/case type is utilized by this product. This product is equipped with 1 Channel for efficient performance. Vds rating of 30 V 60 A continuous drain current Rds On value of 2.6 mOhms Gate-Source Threshold Voltage Range: 1.4 V Gate-Source Voltage: 20 V The minimum operating temperature of this product is - 55 C. The product can operate at a maximum temperature of + 150 C. 108 W This product has a Single configuration. The product's NexFET is Blue Gecko. Reel packaging for easy dispensing The height of the product is 1 mm. 3.3 mm long The Transistor Type is 1 N-Channel. Texas Instruments is a trusted brand for quality electronics Minimum forward transconductance of 118 S 3 ns fall time MOSFET product type Rise Time is 10 ns. 250 of 100 MOSFETs as subcategory Turn-off delay time is 20 ns. The typical turn-on delay time is 4 ns. 1. 0.000847 oz of Unit Weight

CSD17575Q3T Image

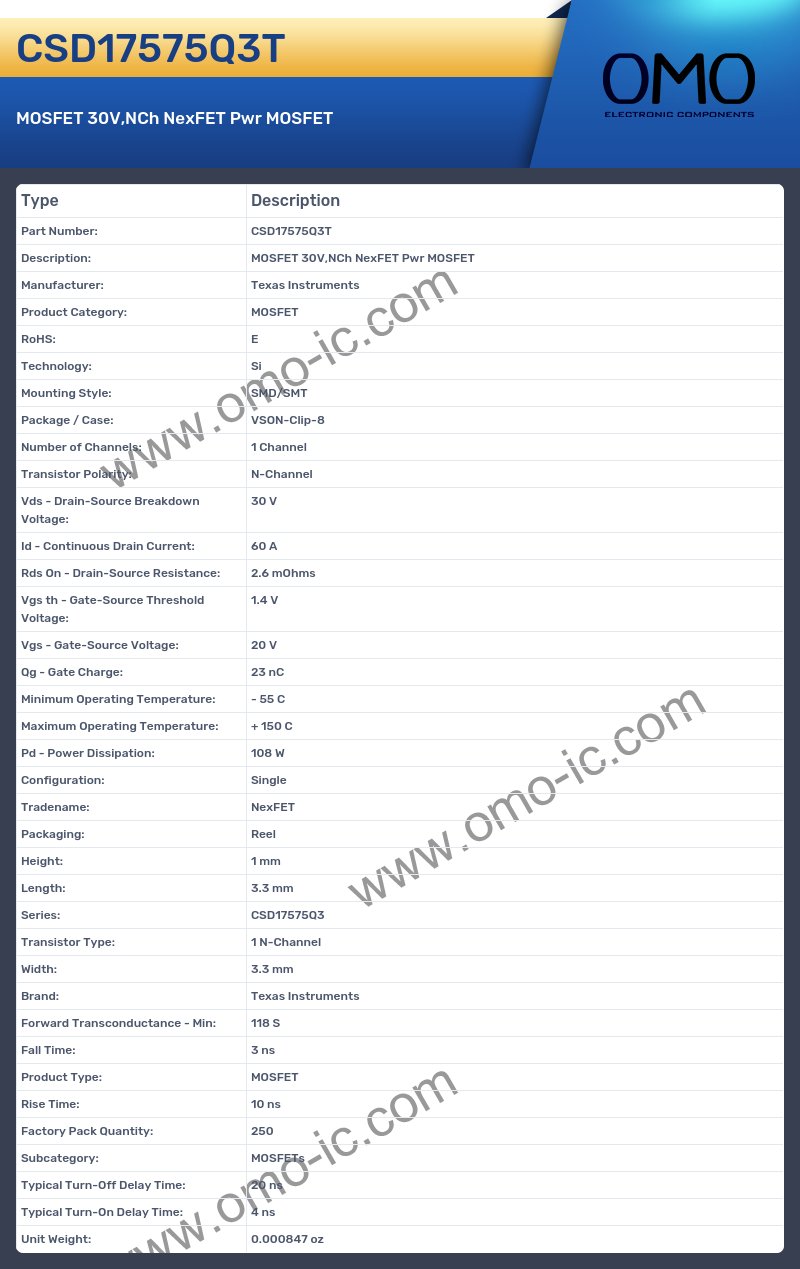

CSD17575Q3T Specifications

• Manufacturer: Texas Instruments
• Product Category: MOSFET
• RoHS: E
• Technology: Si
• Mounting Style: SMD/SMT
• Package / Case: VSON-Clip-8
• Number of Channels: 1 Channel
• Transistor Polarity: N-Channel
• Vds - Drain-Source Breakdown Voltage: 30 V
• Id - Continuous Drain Current: 60 A
• Rds On - Drain-Source Resistance: 2.6 mOhms
• Vgs th - Gate-Source Threshold Voltage: 1.4 V
• Vgs - Gate-Source Voltage: 20 V
• Qg - Gate Charge: 23 nC
• Minimum Operating Temperature: - 55 C
• Maximum Operating Temperature: + 150 C
• Pd - Power Dissipation: 108 W
• Configuration: Single
• Tradename: NexFET
• Packaging: Reel
• Height: 1 mm
• Length: 3.3 mm
• Series: CSD17575Q3
• Transistor Type: 1 N-Channel
• Width: 3.3 mm
• Brand: Texas Instruments
• Forward Transconductance - Min: 118 S
• Fall Time: 3 ns
• Product Type: MOSFET
• Rise Time: 10 ns
• Factory Pack Quantity: 250
• Subcategory: MOSFETs
• Typical Turn-Off Delay Time: 20 ns
• Typical Turn-On Delay Time: 4 ns
• Unit Weight: 0.000847 oz
