CSD18533KCS

CSD18533KCS Overview

This product is manufactured by Texas Instruments. The product can operate at a maximum temperature of Through Hole. TO-220-3 package/case type is utilized by this product. This product is equipped with 1 Channel for efficient performance. Vds rating of 60 V 100 A continuous drain current Rds On value of 6.9 mOhms Gate-Source Threshold Voltage Range: 1.9 V Gate-Source Voltage: 20 V The minimum operating temperature of this product is - 55 C. The product can operate at a maximum temperature of + 150 C. 160 W This product has a Single configuration. The product's NexFET is Blue Gecko. Tube packaging for easy dispensing The height of the product is 16.51 mm. 10.67 mm long The Transistor Type is 1 N-Channel. Texas Instruments is a trusted brand for quality electronics Minimum forward transconductance of 150 S 3.2 ns fall time MOSFET product type Rise Time is 4.8 ns. 50 of 100 MOSFETs as subcategory Turn-off delay time is 13 ns. The typical turn-on delay time is 5.7 ns. 1. 0.211644 oz of Unit Weight

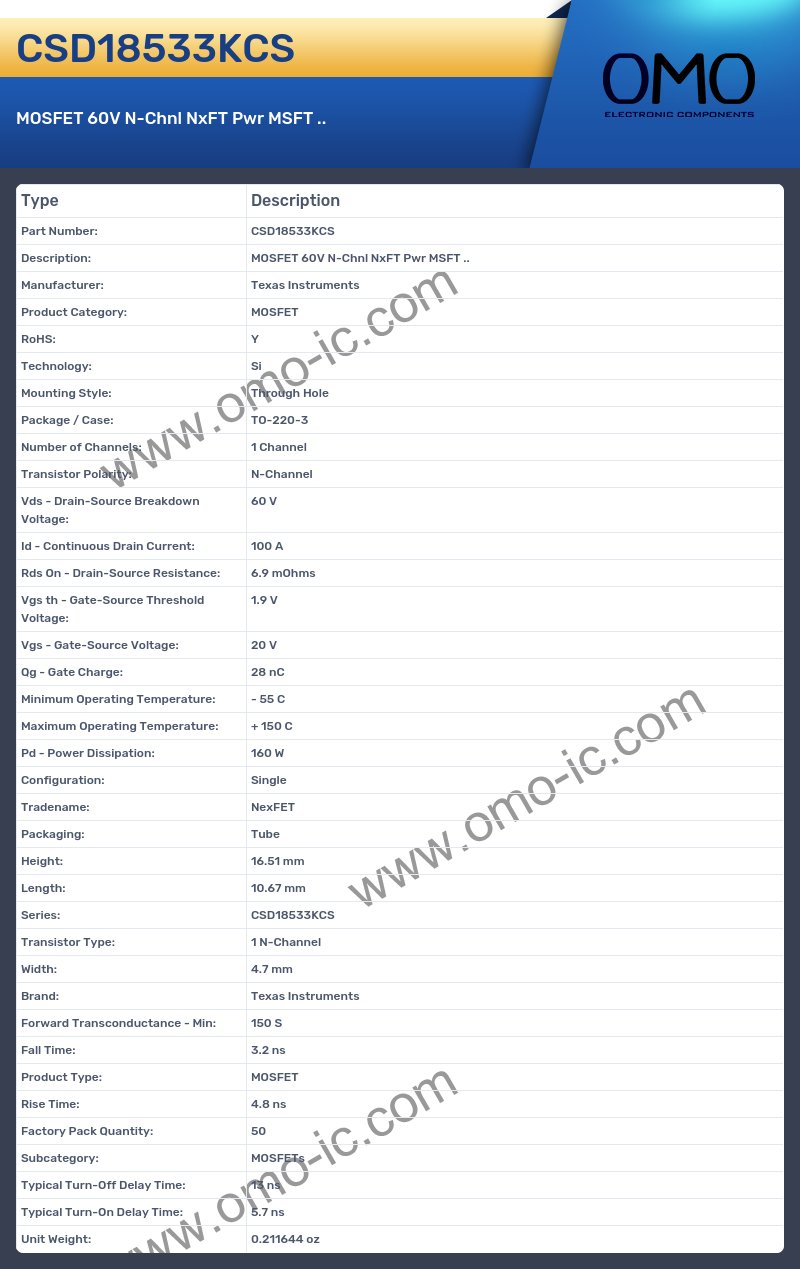

CSD18533KCS Image

CSD18533KCS Specifications

• Manufacturer: Texas Instruments
• Product Category: MOSFET
• RoHS: Y
• Technology: Si
• Mounting Style: Through Hole
• Package / Case: TO-220-3
• Number of Channels: 1 Channel
• Transistor Polarity: N-Channel
• Vds - Drain-Source Breakdown Voltage: 60 V
• Id - Continuous Drain Current: 100 A
• Rds On - Drain-Source Resistance: 6.9 mOhms
• Vgs th - Gate-Source Threshold Voltage: 1.9 V
• Vgs - Gate-Source Voltage: 20 V
• Qg - Gate Charge: 28 nC
• Minimum Operating Temperature: - 55 C
• Maximum Operating Temperature: + 150 C
• Pd - Power Dissipation: 160 W
• Configuration: Single
• Tradename: NexFET
• Packaging: Tube
• Height: 16.51 mm
• Length: 10.67 mm
• Series: CSD18533KCS
• Transistor Type: 1 N-Channel
• Width: 4.7 mm
• Brand: Texas Instruments
• Forward Transconductance - Min: 150 S
• Fall Time: 3.2 ns
• Product Type: MOSFET
• Rise Time: 4.8 ns
• Factory Pack Quantity: 50
• Subcategory: MOSFETs
• Typical Turn-Off Delay Time: 13 ns
• Typical Turn-On Delay Time: 5.7 ns
• Unit Weight: 0.211644 oz
