DAC7558IRHBT

DAC7558IRHBT Overview

This product is manufactured by Texas Instruments. The sampling rate of this product is 500 kS/s. This product is equipped with 8 Channel for efficient performance. 5 us settling time Interface Type: Serial, 3-Wire, SPI External is the reference type. Supply Voltage - Max: 5.5 V Supply Voltage - Min: 2.7 V The minimum operating temperature of this product is - 40 C. The product can operate at a maximum temperature of + 105 C. The product can operate at a maximum temperature of SMD/SMT. VQFN-32 package/case type is utilized by this product. Reel packaging for easy dispensing The height of the product is 0.9 mm. The output type is Voltage Buffered. Resistor-String architecture Texas Instruments is a trusted brand for quality electronics DAC7558EVM is a versatile development platform for hardware and software The +/- 0.5 LSB, ensuring accurate and precise analog-to-digital conversion. 0.15 % FSR is 0.2%. INL is within +/- 1 LSB Yes regarding Moisture Sensitivity 3.3 V, 5 V operating supply voltage range DACs - Digital to Analog Converters product type 250 of 100 Data Converter ICs as subcategory 1. 0.002547 oz of Unit Weight

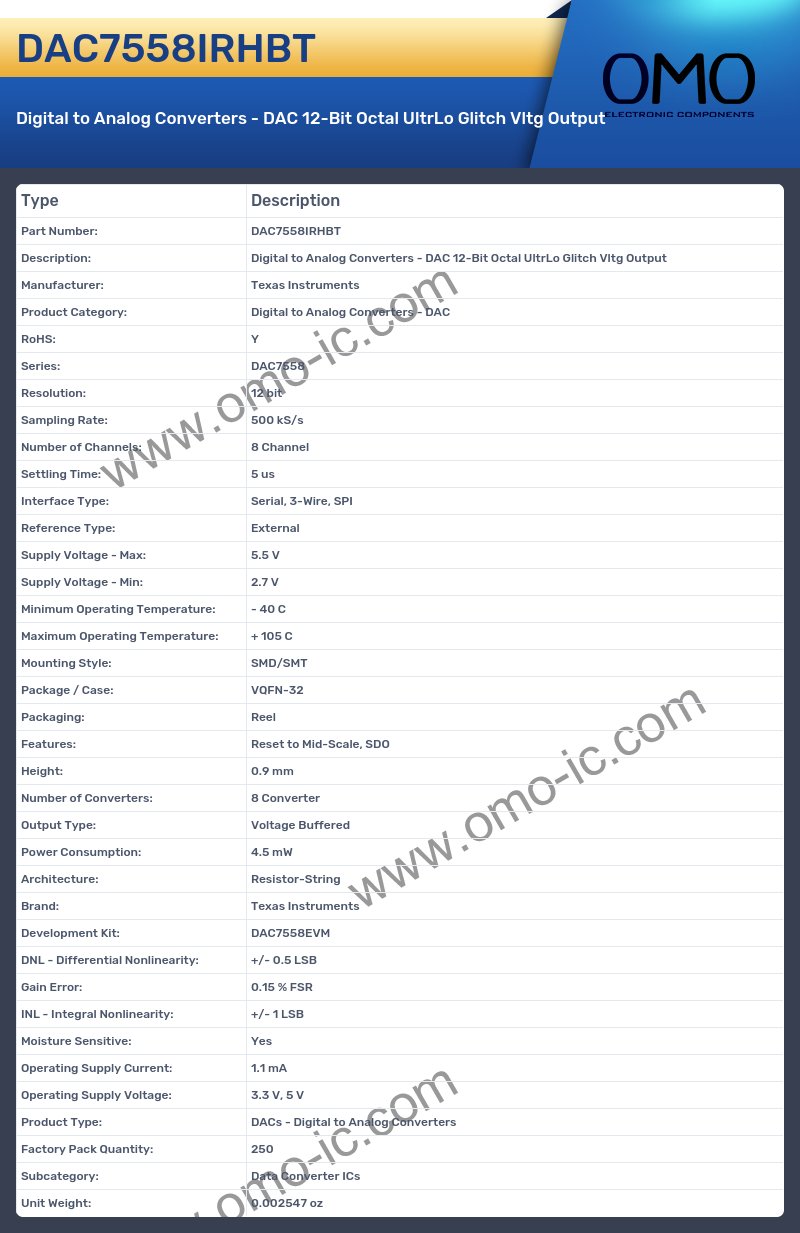

DAC7558IRHBT Image

DAC7558IRHBT Specifications

• Manufacturer: Texas Instruments
• Product Category: Digital to Analog Converters - DAC
• RoHS: Y
• Series: DAC7558
• Resolution: 12 bit
• Sampling Rate: 500 kS/s
• Number of Channels: 8 Channel
• Settling Time: 5 us
• Interface Type: Serial, 3-Wire, SPI
• Reference Type: External
• Supply Voltage - Max: 5.5 V
• Supply Voltage - Min: 2.7 V
• Minimum Operating Temperature: - 40 C
• Maximum Operating Temperature: + 105 C
• Mounting Style: SMD/SMT
• Package / Case: VQFN-32
• Packaging: Reel
• Features: Reset to Mid-Scale, SDO
• Height: 0.9 mm
• Number of Converters: 8 Converter
• Output Type: Voltage Buffered
• Power Consumption: 4.5 mW
• Architecture: Resistor-String
• Brand: Texas Instruments
• Development Kit: DAC7558EVM
• DNL - Differential Nonlinearity: +/- 0.5 LSB
• Gain Error: 0.15 % FSR
• INL - Integral Nonlinearity: +/- 1 LSB
• Moisture Sensitive: Yes
• Operating Supply Current: 1.1 mA
• Operating Supply Voltage: 3.3 V, 5 V
• Product Type: DACs - Digital to Analog Converters
• Factory Pack Quantity: 250
• Subcategory: Data Converter ICs
• Unit Weight: 0.002547 oz
