HMC6505ALC5TR-R5

HMC6505ALC5TR-R5 Overview

This product is manufactured by Analog Devices Inc.. Up Converters This product operates at 5.5 GHz to 8.6 GHz RF frequency range. The IF Frequency range is DC to 3 GHz. LO Frequency range is 5 GHz to 11.6 GHz. 14 dB is 11.5 dB. The 22 dBm is 17 dBm. 5 V operating supply voltage range The product can operate at a maximum temperature of + 85 C. The product can operate at a maximum temperature of SMD/SMT. SMT-32 package/case type is utilized by this product. Reel packaging for easy dispensing Analog Devices is a trusted brand for quality electronics The minimum operating temperature of this product is - 40 C. The 35 dBm value is 32 dBm. 1.65 W Up-Down Converters product type 500 of 100 Wireless & RF Integrated Circuits as subcategory

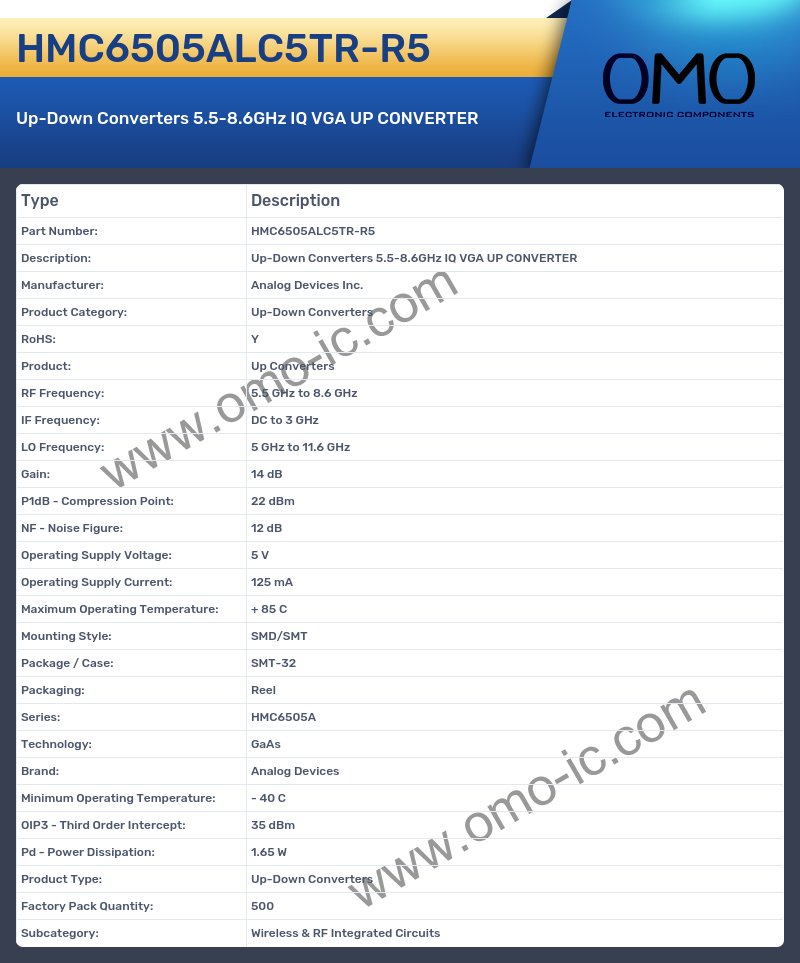

HMC6505ALC5TR-R5 Image

HMC6505ALC5TR-R5 Specifications

• Manufacturer: Analog Devices Inc.
• Product Category: Up-Down Converters
• RoHS: Y
• Product: Up Converters
• RF Frequency: 5.5 GHz to 8.6 GHz
• IF Frequency: DC to 3 GHz
• LO Frequency: 5 GHz to 11.6 GHz
• Gain: 14 dB
• P1dB - Compression Point: 22 dBm
• NF - Noise Figure: 12 dB
• Operating Supply Voltage: 5 V
• Operating Supply Current: 125 mA
• Maximum Operating Temperature: + 85 C
• Mounting Style: SMD/SMT
• Package / Case: SMT-32
• Packaging: Reel
• Series: HMC6505A
• Technology: GaAs
• Brand: Analog Devices
• Minimum Operating Temperature: - 40 C
• OIP3 - Third Order Intercept: 35 dBm
• Pd - Power Dissipation: 1.65 W
• Product Type: Up-Down Converters
• Factory Pack Quantity: 500
• Subcategory: Wireless & RF Integrated Circuits
