ISO7763QDWQ1

ISO7763QDWQ1 Overview

This product is manufactured by Texas Instruments. The product can operate at a maximum temperature of SMD/SMT. SOIC-16 package/case type is utilized by this product. This product is equipped with 6 Channel for efficient performance. Polarity type: Unidirectional 5000 Vrms isolation voltage The 100 Mb/s data rate; The propagation delay time is 11 ns. Supply Voltage - Max: 5.5 V Supply Voltage - Min: 2.25 V The minimum operating temperature of this product is - 40 C. The product can operate at a maximum temperature of + 125 C. Tube packaging for easy dispensing Digital Isolators This device belongs to the High Speed type. Texas Instruments is a trusted brand for quality electronics This product does not have a No Shutdown feature, ensuring continuous operation. 3 Channel: 2 channels The product has a maximum fall time of 3.9 ns. 3.9 ns is the maximum rise time. Yes regarding Moisture Sensitivity 292 mW Digital Isolators product type The 0.4 ns of this product is 500 ps. This product has no 3 Channel reverse channels. 40 of 100 Interface ICs as subcategory

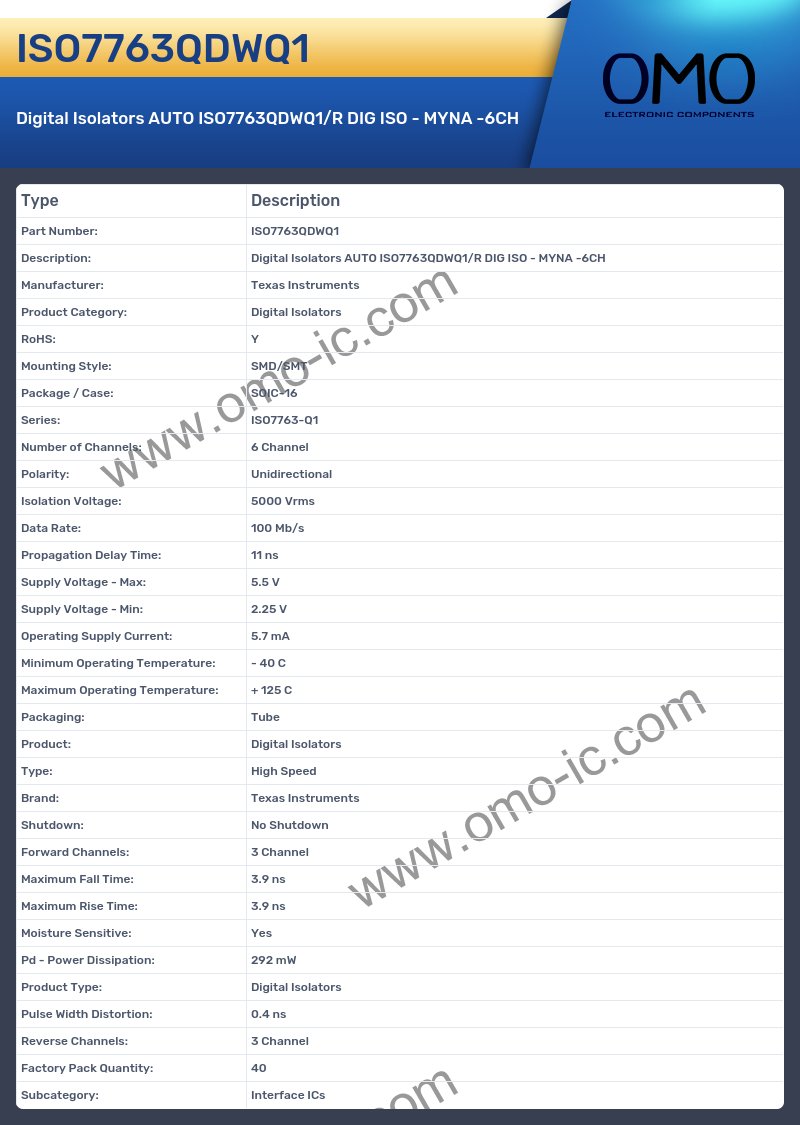

ISO7763QDWQ1 Image

ISO7763QDWQ1 Specifications

• Manufacturer: Texas Instruments
• Product Category: Digital Isolators
• RoHS: Y
• Mounting Style: SMD/SMT
• Package / Case: SOIC-16
• Series: ISO7763-Q1
• Number of Channels: 6 Channel
• Polarity: Unidirectional
• Isolation Voltage: 5000 Vrms
• Data Rate: 100 Mb/s
• Propagation Delay Time: 11 ns
• Supply Voltage - Max: 5.5 V
• Supply Voltage - Min: 2.25 V
• Operating Supply Current: 5.7 mA
• Minimum Operating Temperature: - 40 C
• Maximum Operating Temperature: + 125 C
• Packaging: Tube
• Product: Digital Isolators
• Type: High Speed
• Brand: Texas Instruments
• Shutdown: No Shutdown
• Forward Channels: 3 Channel
• Maximum Fall Time: 3.9 ns
• Maximum Rise Time: 3.9 ns
• Moisture Sensitive: Yes
• Pd - Power Dissipation: 292 mW
• Product Type: Digital Isolators
• Pulse Width Distortion: 0.4 ns
• Reverse Channels: 3 Channel
• Factory Pack Quantity: 40
• Subcategory: Interface ICs
