L6384ED Overview

This product is manufactured by STMicroelectronics. Half-Bridge Drivers This device belongs to the High Side, Low Side type. The product can operate at a maximum temperature of SMD/SMT. SO-8 package/case type is utilized by this product. 2 Output is the number of outputs provided by this product. Rise Time is 50 ns. 30 ns fall time Supply Voltage - Min: 11.5 V Supply Voltage - Max: 12.5 V 750 mW The minimum operating temperature of this product is - 45 C. The product can operate at a maximum temperature of + 125 C. Tube packaging for easy dispensing Output Voltage is 580 V STMicroelectronics is a trusted brand for quality electronics CMOS, TTL. Our product has a maximum 300 ns. 300 ns maximum turn-off delay time The 200 ns. 15.6 V operating supply voltage range Gate Drivers product type 2000 of 100 PMIC - Power Management ICs as subcategory 1. 0.004395 oz of Unit Weight

L6384ED Image

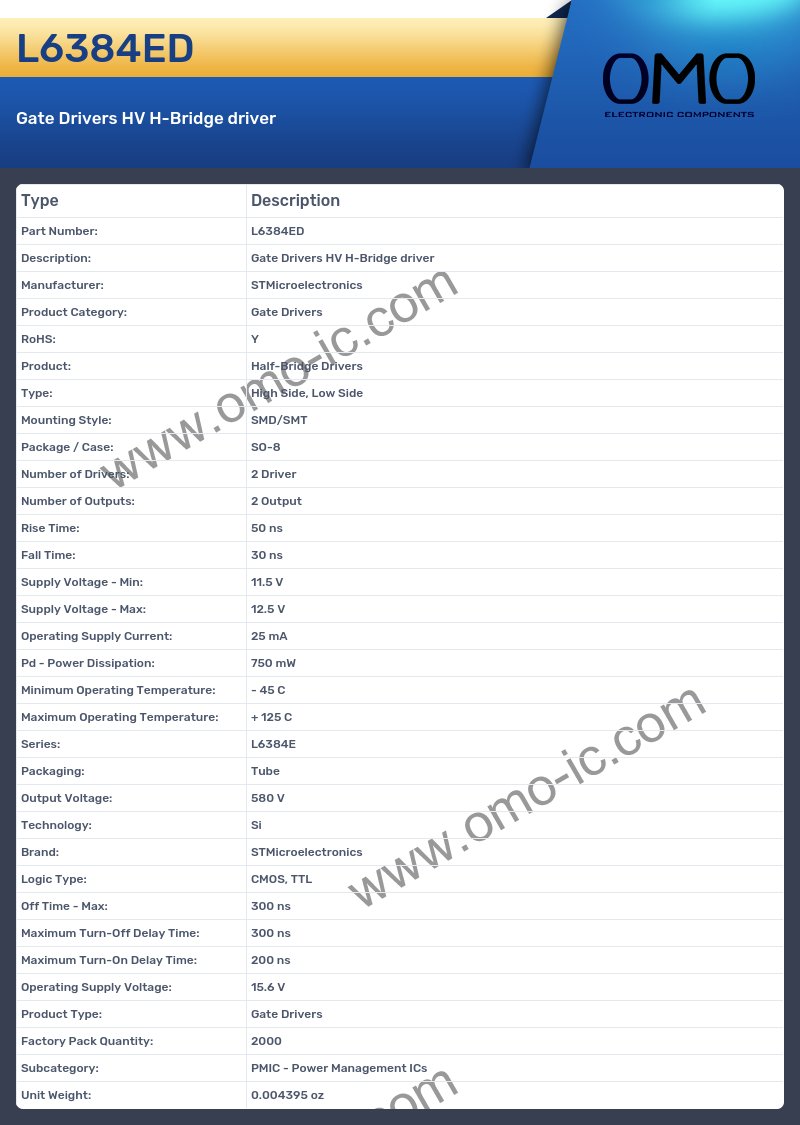

L6384ED Specifications

• Manufacturer: STMicroelectronics
• Product Category: Gate Drivers
• RoHS: Y
• Product: Half-Bridge Drivers
• Type: High Side, Low Side
• Mounting Style: SMD/SMT
• Package / Case: SO-8
• Number of Drivers: 2 Driver
• Number of Outputs: 2 Output
• Rise Time: 50 ns
• Fall Time: 30 ns
• Supply Voltage - Min: 11.5 V
• Supply Voltage - Max: 12.5 V
• Operating Supply Current: 25 mA
• Pd - Power Dissipation: 750 mW
• Minimum Operating Temperature: - 45 C
• Maximum Operating Temperature: + 125 C
• Series: L6384E
• Packaging: Tube
• Output Voltage: 580 V
• Technology: Si
• Brand: STMicroelectronics
• Logic Type: CMOS, TTL
• Off Time - Max: 300 ns
• Maximum Turn-Off Delay Time: 300 ns
• Maximum Turn-On Delay Time: 200 ns
• Operating Supply Voltage: 15.6 V
• Product Type: Gate Drivers
• Factory Pack Quantity: 2000
• Subcategory: PMIC - Power Management ICs
• Unit Weight: 0.004395 oz
