LM1117DTX-2.5/NOPB

LM1117DTX-2.5/NOPB Overview

This product is manufactured by Texas Instruments. The product can operate at a maximum temperature of SMD/SMT. TO-252-3 package/case type is utilized by this product. Output Voltage is 2.5 V Output current: 800 mA 1 Output is the number of outputs provided by this product. Polarity type: Positive Maximum input voltage is 15 V The output type is Fixed. The minimum operating temperature of this product is - 40 C. The product can operate at a maximum temperature of + 125 C. Minimum Dropout Voltage: 1.2 V Reel packaging for easy dispensing LDO Linear Regulators This device belongs to the Low Dropout Positive Regulator type. Texas Instruments is a trusted brand for quality electronics Maximum dropout voltage is 1.2 V at 100 mA, 1.25 V at 500 mA, 1.3 V at 800 mA PSRR/Ripple Rejection - Typ is 75 dB Voltage Regulation Accuracy of +/- 1 % is ensured. This product has an 5 mA of 5 uA for precise signal processing. Load regulation is 1 mV. Yes regarding Moisture Sensitivity LDO Voltage Regulators product type 2500 of 100 PMIC - Power Management ICs as subcategory 1. 0.139332 oz of Unit Weight

LM1117DTX-2.5/NOPB Image

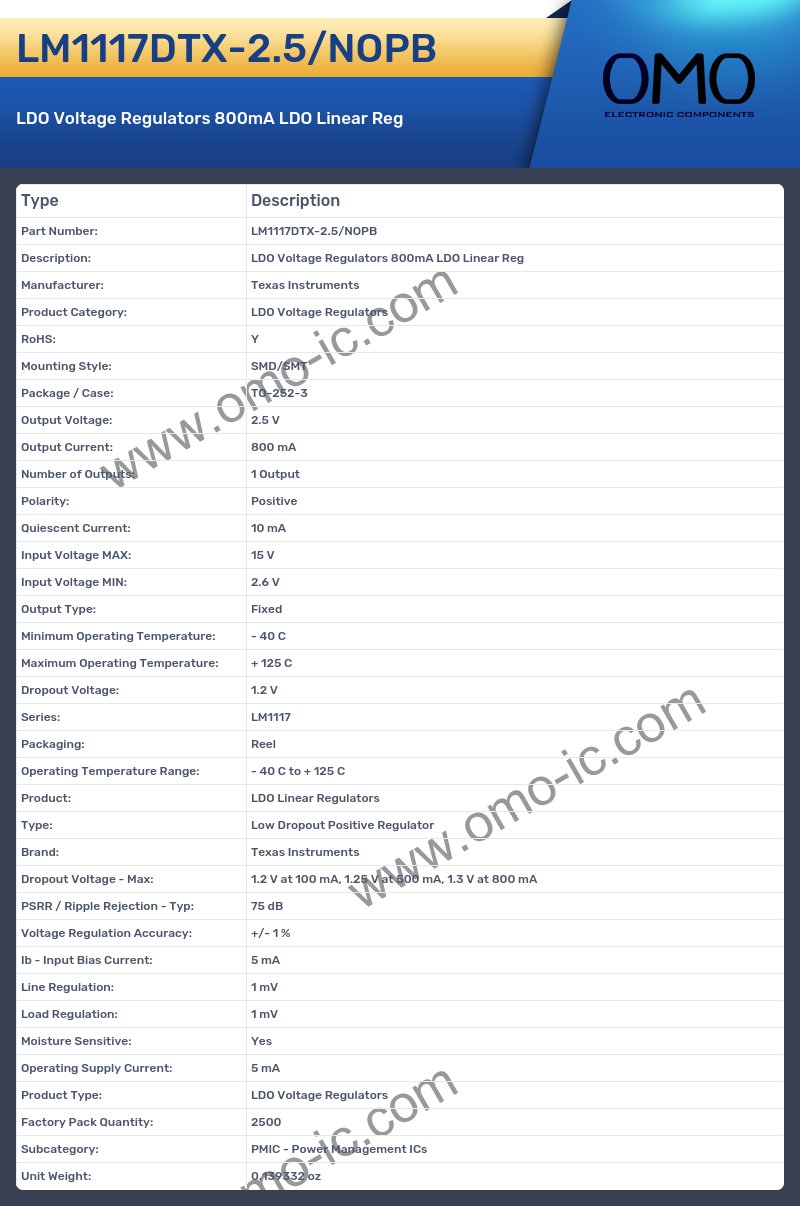

LM1117DTX-2.5/NOPB Specifications

• Manufacturer: Texas Instruments
• Product Category: LDO Voltage Regulators
• RoHS: Y
• Mounting Style: SMD/SMT
• Package / Case: TO-252-3
• Output Voltage: 2.5 V
• Output Current: 800 mA
• Number of Outputs: 1 Output
• Polarity: Positive
• Quiescent Current: 10 mA
• Input Voltage MAX: 15 V
• Input Voltage MIN: 2.6 V
• Output Type: Fixed
• Minimum Operating Temperature: - 40 C
• Maximum Operating Temperature: + 125 C
• Dropout Voltage: 1.2 V
• Series: LM1117
• Packaging: Reel
• Operating Temperature Range: - 40 C to + 125 C
• Product: LDO Linear Regulators
• Type: Low Dropout Positive Regulator
• Brand: Texas Instruments
• Dropout Voltage - Max: 1.2 V at 100 mA, 1.25 V at 500 mA, 1.3 V at 800 mA
• PSRR / Ripple Rejection - Typ: 75 dB
• Voltage Regulation Accuracy: +/- 1 %
• Ib - Input Bias Current: 5 mA
• Line Regulation: 1 mV
• Load Regulation: 1 mV
• Moisture Sensitive: Yes
• Operating Supply Current: 5 mA
• Product Type: LDO Voltage Regulators
• Factory Pack Quantity: 2500
• Subcategory: PMIC - Power Management ICs
• Unit Weight: 0.139332 oz
