LM1117T-ADJ/NOPB

LM1117T-ADJ/NOPB Overview

This product is manufactured by Texas Instruments. The product can operate at a maximum temperature of Through Hole. TO-220-3 package/case type is utilized by this product. Output Voltage is 1.25 V to 13.8 V Output current: 800 mA 1 Output is the number of outputs provided by this product. Polarity type: Positive Maximum input voltage is 15 V The output type is Adjustable. The minimum operating temperature of this product is - 40 C. The product can operate at a maximum temperature of + 125 C. Minimum Dropout Voltage: 1.2 V Tube packaging for easy dispensing LDO Linear Regulators This device belongs to the Low Dropout Positive Regulator type. Texas Instruments is a trusted brand for quality electronics Maximum dropout voltage is 1.2 V at 100 mA, 1.25 V at 500 mA, 1.3 V at 800 mA PSRR/Ripple Rejection - Typ is 75 dB Voltage Regulation Accuracy of +/- 1 % is ensured. This product has an 5 mA of 5 uA for precise signal processing. Load regulation is 0.2 %. LDO Voltage Regulators product type 45 of 100 PMIC - Power Management ICs as subcategory 1. 0.211644 oz of Unit Weight

LM1117T-ADJ/NOPB Image

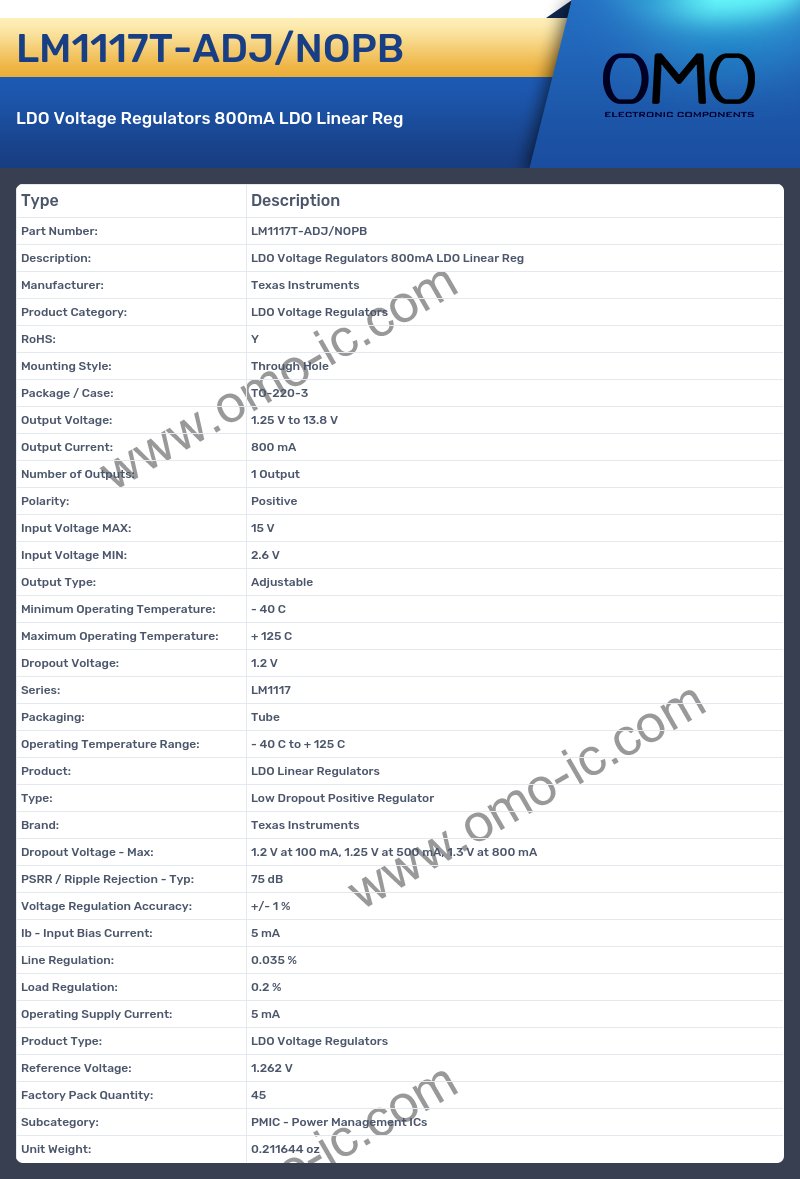

LM1117T-ADJ/NOPB Specifications

• Manufacturer: Texas Instruments
• Product Category: LDO Voltage Regulators
• RoHS: Y
• Mounting Style: Through Hole
• Package / Case: TO-220-3
• Output Voltage: 1.25 V to 13.8 V
• Output Current: 800 mA
• Number of Outputs: 1 Output
• Polarity: Positive
• Input Voltage MAX: 15 V
• Input Voltage MIN: 2.6 V
• Output Type: Adjustable
• Minimum Operating Temperature: - 40 C
• Maximum Operating Temperature: + 125 C
• Dropout Voltage: 1.2 V
• Series: LM1117
• Packaging: Tube
• Operating Temperature Range: - 40 C to + 125 C
• Product: LDO Linear Regulators
• Type: Low Dropout Positive Regulator
• Brand: Texas Instruments
• Dropout Voltage - Max: 1.2 V at 100 mA, 1.25 V at 500 mA, 1.3 V at 800 mA
• PSRR / Ripple Rejection - Typ: 75 dB
• Voltage Regulation Accuracy: +/- 1 %
• Ib - Input Bias Current: 5 mA
• Line Regulation: 0.035 %
• Load Regulation: 0.2 %
• Operating Supply Current: 5 mA
• Product Type: LDO Voltage Regulators
• Reference Voltage: 1.262 V
• Factory Pack Quantity: 45
• Subcategory: PMIC - Power Management ICs
• Unit Weight: 0.211644 oz
