LM258PT

LM258PT Overview

This product is manufactured by STMicroelectronics. The product can operate at a maximum temperature of SMD/SMT. TSSOP-8 package/case type is utilized by this product. Supply Voltage - Max: 30 V This product is equipped with 2 Channel for efficient performance. This product has a 70 dB of 50 dB, ensuring reliable signal acquisition. This product has an 150 nA of 5 uA for precise signal processing. Supply Voltage - Min: 3 V The minimum operating temperature of this product is - 40 C. The product can operate at a maximum temperature of + 105 C. This product does not have a No Shutdown feature, ensuring continuous operation. The AEC-Q100 Qualification The amplifier type is Low Power Amplifier. The height of the product is 1 mm. 3 mm long Operational Amplifiers Supply Type: Single, Dual STMicroelectronics is a trusted brand for quality electronics 1. The maximum dual supply voltage is +/- 15 V. +/- 1.5 V minimum dual supply voltage 3 V to 30 V, +/- 1.5 V to +/- 15 V operating supply voltage range 500 mW (1/2 W) Op Amps - Operational Amplifiers product type This product has a 65 dB of 50 dB, providing reliable power supply noise rejection. 4000 of 100 Amplifier ICs as subcategory 1. 0.005573 oz of Unit Weight

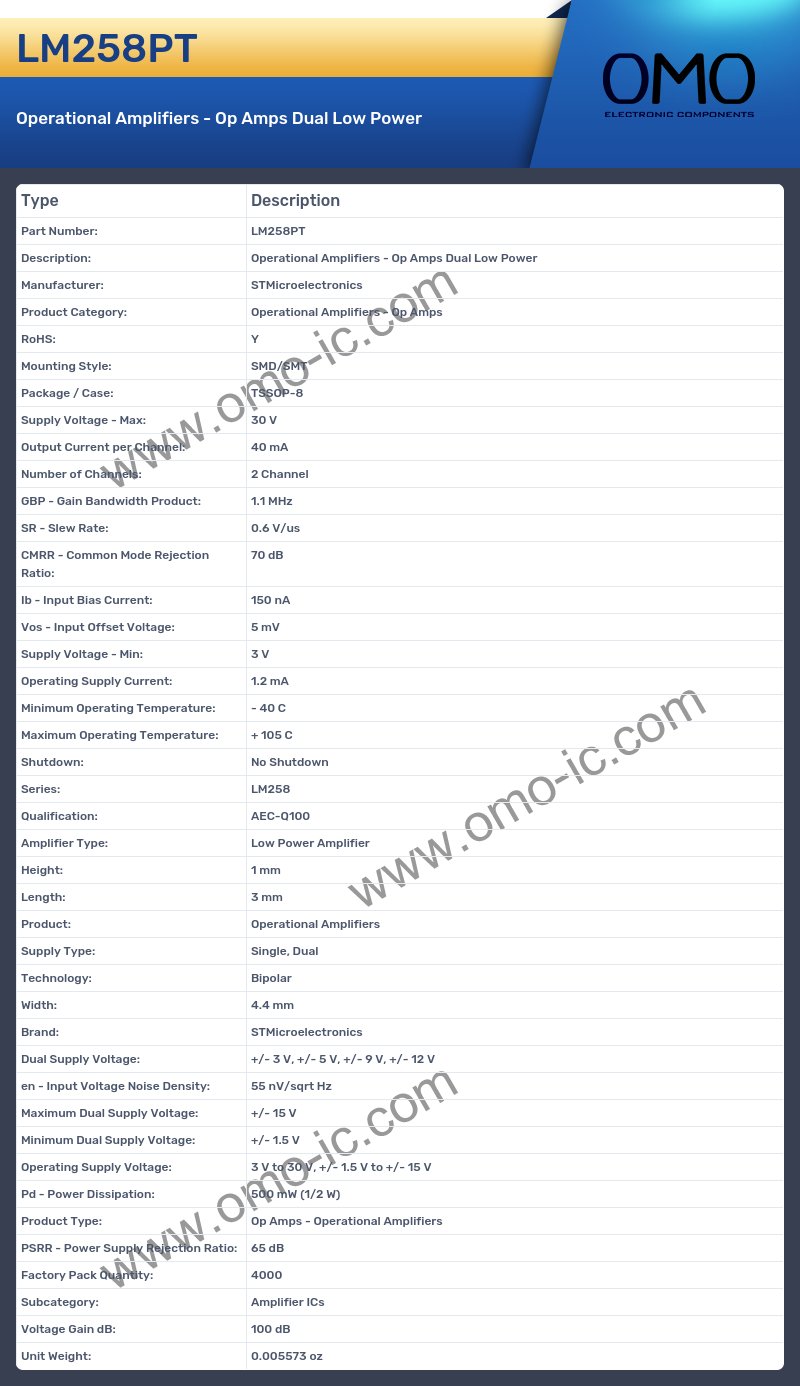

LM258PT Image

LM258PT Specifications

• Manufacturer: STMicroelectronics
• Product Category: Operational Amplifiers - Op Amps
• RoHS: Y
• Mounting Style: SMD/SMT
• Package / Case: TSSOP-8
• Supply Voltage - Max: 30 V
• Output Current per Channel: 40 mA
• Number of Channels: 2 Channel
• GBP - Gain Bandwidth Product: 1.1 MHz
• SR - Slew Rate: 0.6 V/us
• CMRR - Common Mode Rejection Ratio: 70 dB
• Ib - Input Bias Current: 150 nA
• Vos - Input Offset Voltage: 5 mV
• Supply Voltage - Min: 3 V
• Operating Supply Current: 1.2 mA
• Minimum Operating Temperature: - 40 C
• Maximum Operating Temperature: + 105 C
• Shutdown: No Shutdown
• Series: LM258
• Qualification: AEC-Q100
• Amplifier Type: Low Power Amplifier
• Height: 1 mm
• Length: 3 mm
• Product: Operational Amplifiers
• Supply Type: Single, Dual
• Technology: Bipolar
• Width: 4.4 mm
• Brand: STMicroelectronics
• Dual Supply Voltage: +/- 3 V, +/- 5 V, +/- 9 V, +/- 12 V
• en - Input Voltage Noise Density: 55 nV/sqrt Hz
• Maximum Dual Supply Voltage: +/- 15 V
• Minimum Dual Supply Voltage: +/- 1.5 V
• Operating Supply Voltage: 3 V to 30 V, +/- 1.5 V to +/- 15 V
• Pd - Power Dissipation: 500 mW (1/2 W)
• Product Type: Op Amps - Operational Amplifiers
• PSRR - Power Supply Rejection Ratio: 65 dB
• Factory Pack Quantity: 4000
• Subcategory: Amplifier ICs
• Voltage Gain dB: 100 dB
• Unit Weight: 0.005573 oz
