| Mfr. #: | LM5101BSDX/NOPB |
|---|---|
| Manufacturer: | Texas Instruments |
| Description: | Gate Drivers 2A High Voltage High-Side and Low-Side G |
| Lifecycle: | New from this manufacturer. |
| Datasheet: | LM5101BSDX/NOPB Datasheet |
This product is manufactured by Texas Instruments. This device belongs to the High Side, Low Side type. The product can operate at a maximum temperature of SMD/SMT. WSON-10 package/case type is utilized by this product. 2 Output is the number of outputs provided by this product. Output current: 2 A Rise Time is 570 ns. 430 ns fall time Supply Voltage - Min: 9 V Supply Voltage - Max: 14 V Maximum propagation delay: 26 ns The minimum operating temperature of this product is - 40 C. The product can operate at a maximum temperature of + 125 C. Reel packaging for easy dispensing The height of the product is 0.8 mm. 4 mm long Texas Instruments is a trusted brand for quality electronics TTL. 4 ns maximum turn-off delay time The 4 ns. 7.5 V to 14 V operating supply voltage range Gate Drivers product type 4500 of 100 PMIC - Power Management ICs as subcategory
Image shown is a representation only. Exact specifications should be obtained from the product data sheet.

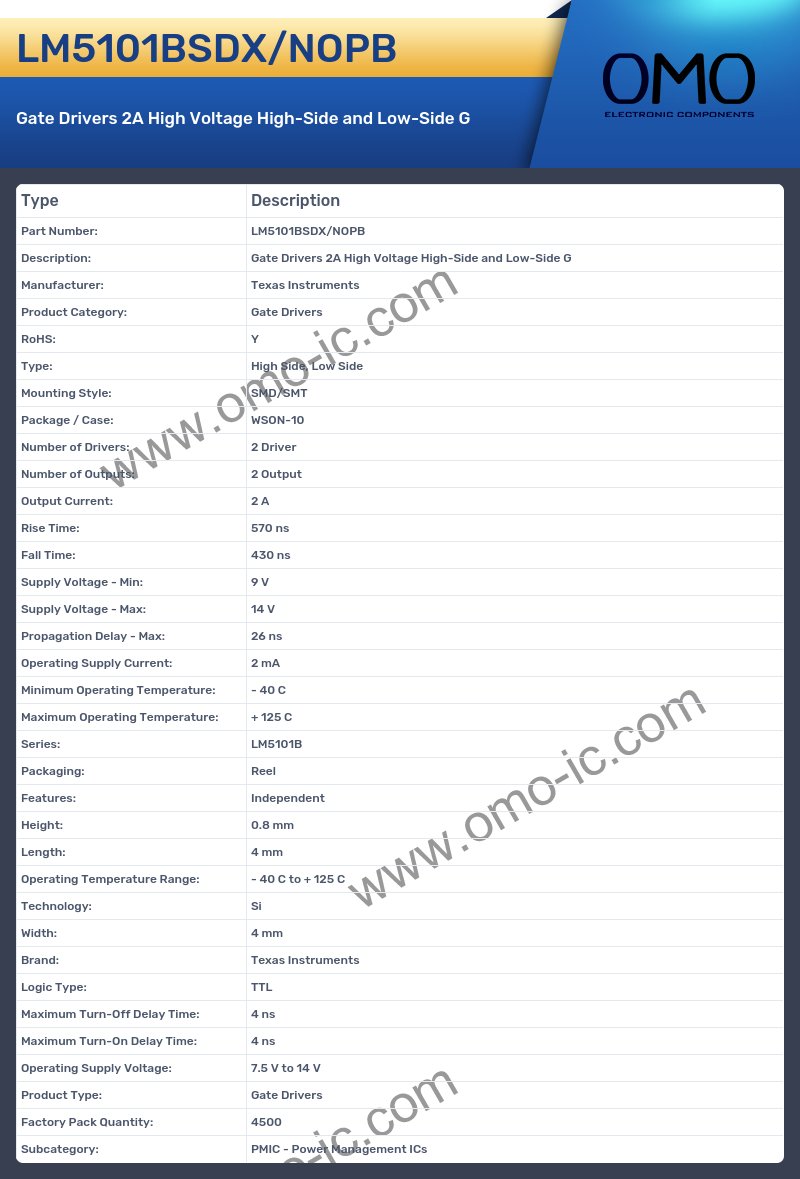

LM5101BSDX/NOPB Specifications
