LM5112SD

LM5112SD Overview

This product is manufactured by Texas Instruments. This device belongs to the Low Side type. The product can operate at a maximum temperature of SMD/SMT. WSON-6 package/case type is utilized by this product. 1 Output is the number of outputs provided by this product. Output current: 7 A Rise Time is 14 ns. 12 ns fall time Supply Voltage - Min: 3.5 V Supply Voltage - Max: 14 V Maximum propagation delay: 40 ns The minimum operating temperature of this product is - 40 C. The product can operate at a maximum temperature of + 125 C. Reel packaging for easy dispensing The height of the product is 0.8 mm. 3 mm long Texas Instruments is a trusted brand for quality electronics CMOS, TTL. 3.5 V to 14 V operating supply voltage range Gate Drivers product type 1000 of 100 PMIC - Power Management ICs as subcategory

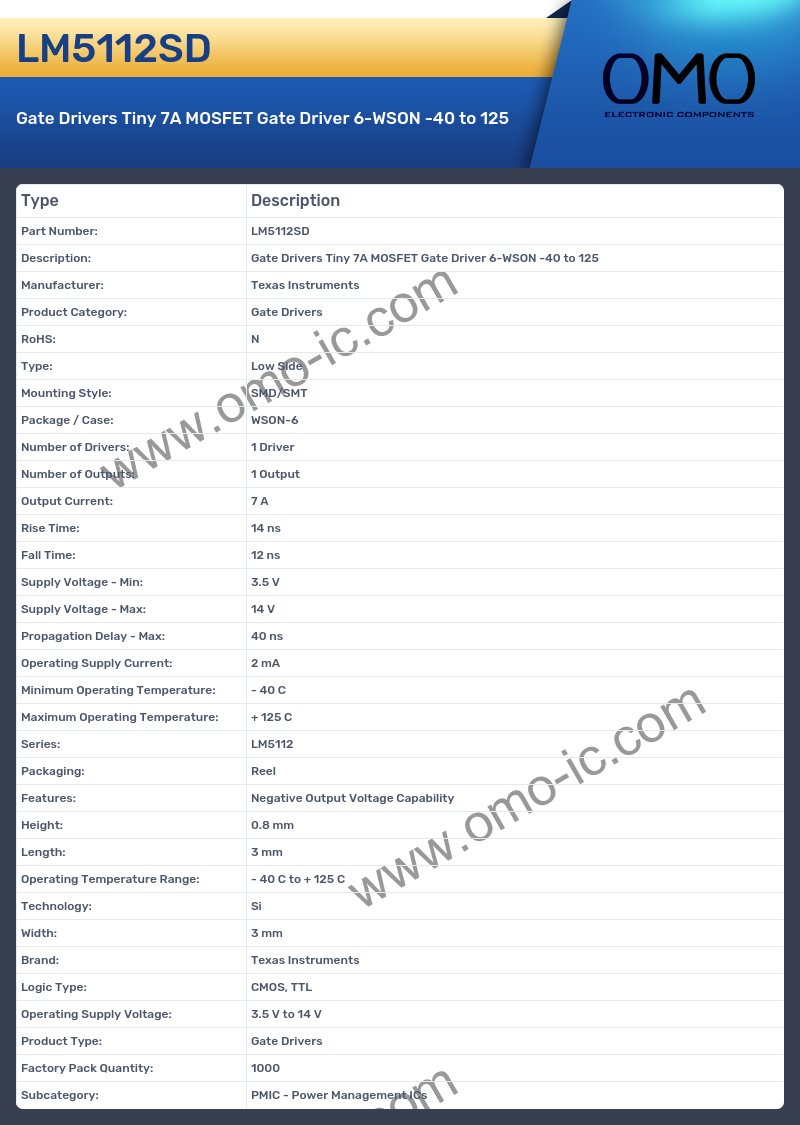

LM5112SD Image

LM5112SD Specifications

• Manufacturer: Texas Instruments
• Product Category: Gate Drivers
• RoHS: N
• Type: Low Side
• Mounting Style: SMD/SMT
• Package / Case: WSON-6
• Number of Drivers: 1 Driver
• Number of Outputs: 1 Output
• Output Current: 7 A
• Rise Time: 14 ns
• Fall Time: 12 ns
• Supply Voltage - Min: 3.5 V
• Supply Voltage - Max: 14 V
• Propagation Delay - Max: 40 ns
• Operating Supply Current: 2 mA
• Minimum Operating Temperature: - 40 C
• Maximum Operating Temperature: + 125 C
• Series: LM5112
• Packaging: Reel
• Features: Negative Output Voltage Capability
• Height: 0.8 mm
• Length: 3 mm
• Operating Temperature Range: - 40 C to + 125 C
• Technology: Si
• Width: 3 mm
• Brand: Texas Instruments
• Logic Type: CMOS, TTL
• Operating Supply Voltage: 3.5 V to 14 V
• Product Type: Gate Drivers
• Factory Pack Quantity: 1000
• Subcategory: PMIC - Power Management ICs
