LTC2242CUP-12#PBF

LTC2242CUP-12#PBF Overview

This product is manufactured by Analog Devices Inc.. The product can operate at a maximum temperature of SMD/SMT. QFN-64 package/case type is utilized by this product. This product is equipped with 1 Channel for efficient performance. The sampling rate of this product is 250 MS/s. Differential/Single-Ended input type Interface Type: Parallel Pipeline architecture External, Internal is the reference type. This product requires an 2.5 V for proper operation. The minimum operating temperature of this product is 0 C. The product can operate at a maximum temperature of + 70 C. Tube packaging for easy dispensing This device belongs to the High Speed type. Analog Devices is a trusted brand for quality electronics This product does not have a Shutdown feature, ensuring continuous operation. DC1133A-A, DC997B-A is a versatile development platform for hardware and software The 0.4 LSB, ensuring accurate and precise analog-to-digital conversion. 0.7 %/FS is 0.2%. INL is within 1 LSB 740 mW ADCs - Analog to Digital Converters product type 40 of 100 Data Converter ICs as subcategory 1. 0.022928 oz of Unit Weight

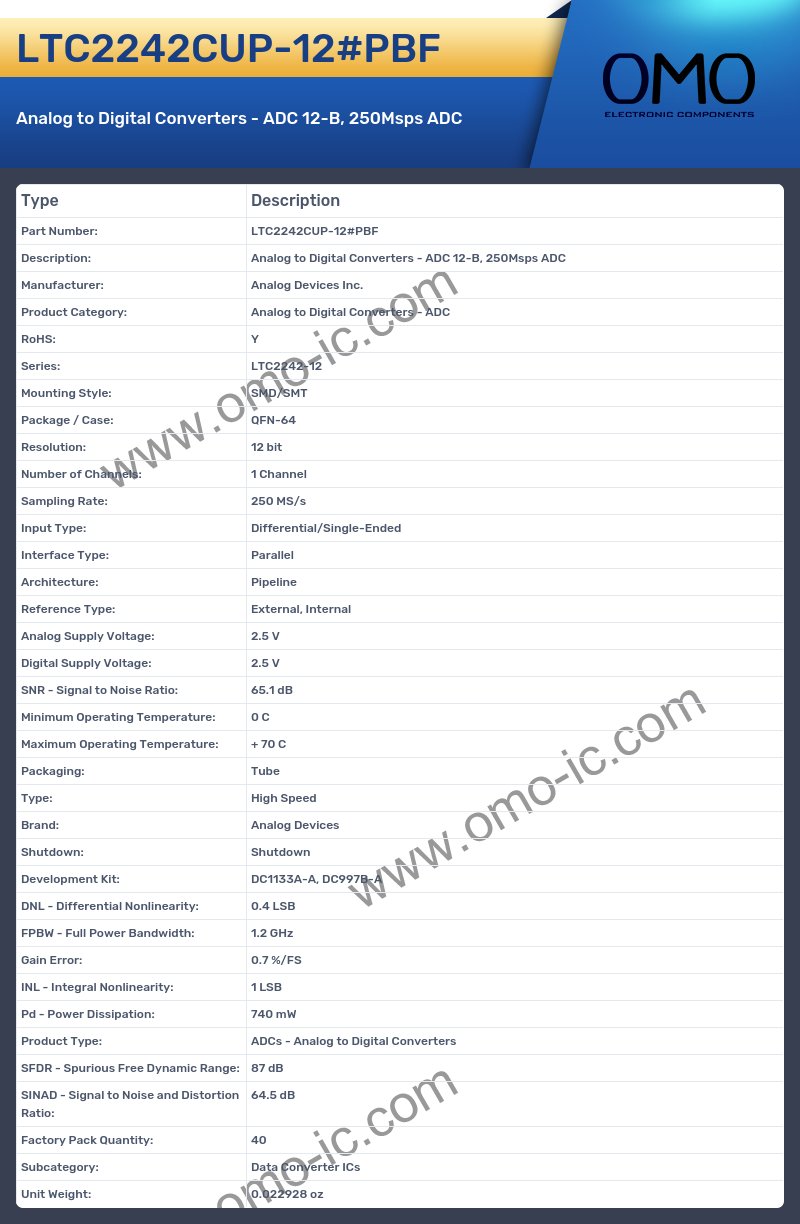

LTC2242CUP-12#PBF Image

LTC2242CUP-12#PBF Specifications

• Manufacturer: Analog Devices Inc.
• Product Category: Analog to Digital Converters - ADC
• RoHS: Y
• Series: LTC2242-12
• Mounting Style: SMD/SMT
• Package / Case: QFN-64
• Resolution: 12 bit
• Number of Channels: 1 Channel
• Sampling Rate: 250 MS/s
• Input Type: Differential/Single-Ended
• Interface Type: Parallel
• Architecture: Pipeline
• Reference Type: External, Internal
• Analog Supply Voltage: 2.5 V
• Digital Supply Voltage: 2.5 V
• SNR - Signal to Noise Ratio: 65.1 dB
• Minimum Operating Temperature: 0 C
• Maximum Operating Temperature: + 70 C
• Packaging: Tube
• Type: High Speed
• Brand: Analog Devices
• Shutdown: Shutdown
• Development Kit: DC1133A-A, DC997B-A
• DNL - Differential Nonlinearity: 0.4 LSB
• FPBW - Full Power Bandwidth: 1.2 GHz
• Gain Error: 0.7 %/FS
• INL - Integral Nonlinearity: 1 LSB
• Pd - Power Dissipation: 740 mW
• Product Type: ADCs - Analog to Digital Converters
• SFDR - Spurious Free Dynamic Range: 87 dB
• SINAD - Signal to Noise and Distortion Ratio: 64.5 dB
• Factory Pack Quantity: 40
• Subcategory: Data Converter ICs
• Unit Weight: 0.022928 oz
