LTC2309HF#PBF

LTC2309HF#PBF Overview

This product is manufactured by Analog Devices Inc.. The product can operate at a maximum temperature of SMD/SMT. TSSOP-20 package/case type is utilized by this product. This product is equipped with 8 Channel for efficient performance. The sampling rate of this product is 14 kS/s. Pseudo-Differential/Single-Ended input type SAR architecture Internal is the reference type. This product requires an 5 V for proper operation. Tube packaging for easy dispensing This device belongs to the Precision type. Analog Devices is a trusted brand for quality electronics This product does not have a Shutdown feature, ensuring continuous operation. DC1337A is a versatile development platform for hardware and software The 0.35 LSB, ensuring accurate and precise analog-to-digital conversion. 64 LSB is 0.2%. INL is within 0.45 LSB 1.5 mW ADCs - Analog to Digital Converters product type 74 of 100 Data Converter ICs as subcategory THD is as low as - 88 dB. 1. 0.009524 oz of Unit Weight

LTC2309HF#PBF Image

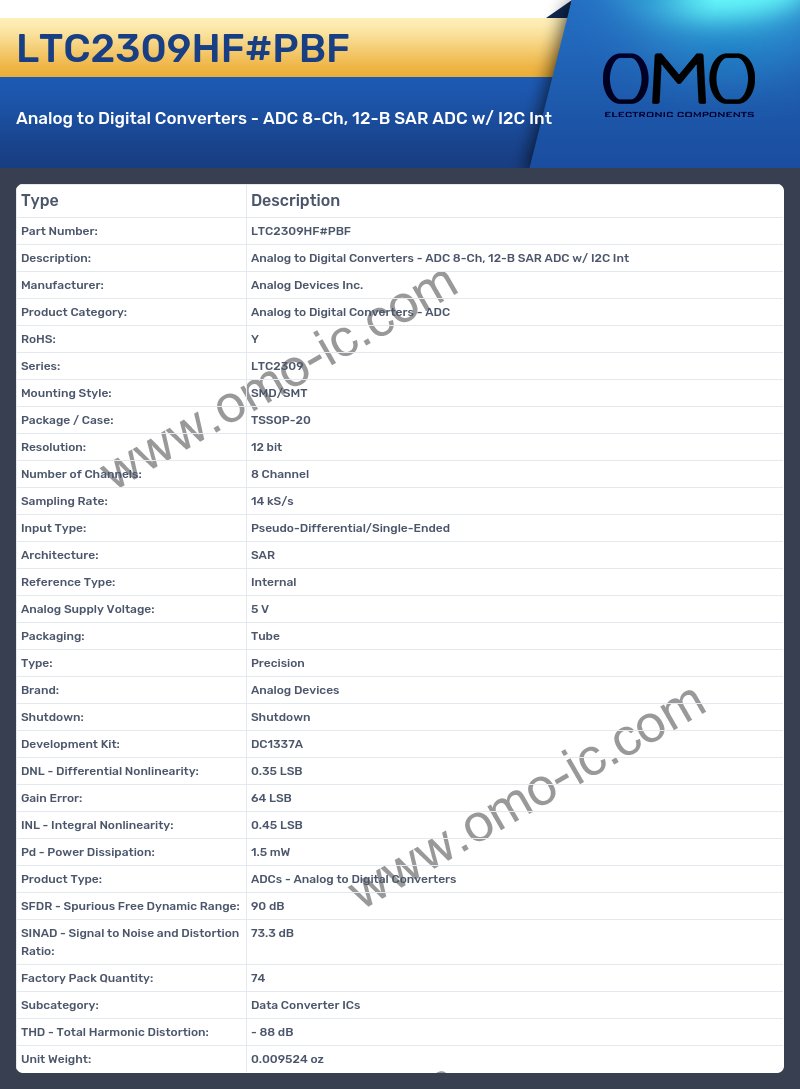

LTC2309HF#PBF Specifications

• Manufacturer: Analog Devices Inc.
• Product Category: Analog to Digital Converters - ADC
• RoHS: Y
• Series: LTC2309
• Mounting Style: SMD/SMT
• Package / Case: TSSOP-20
• Resolution: 12 bit
• Number of Channels: 8 Channel
• Sampling Rate: 14 kS/s
• Input Type: Pseudo-Differential/Single-Ended
• Architecture: SAR
• Reference Type: Internal
• Analog Supply Voltage: 5 V
• Packaging: Tube
• Type: Precision
• Brand: Analog Devices
• Shutdown: Shutdown
• Development Kit: DC1337A
• DNL - Differential Nonlinearity: 0.35 LSB
• Gain Error: 64 LSB
• INL - Integral Nonlinearity: 0.45 LSB
• Pd - Power Dissipation: 1.5 mW
• Product Type: ADCs - Analog to Digital Converters
• SFDR - Spurious Free Dynamic Range: 90 dB
• SINAD - Signal to Noise and Distortion Ratio: 73.3 dB
• Factory Pack Quantity: 74
• Subcategory: Data Converter ICs
• THD - Total Harmonic Distortion: - 88 dB
• Unit Weight: 0.009524 oz
