LTC2756AIG#PBF

LTC2756AIG#PBF Overview

This product is manufactured by Analog Devices Inc.. This product is equipped with 1 Channel for efficient performance. 2.1 us settling time Interface Type: Serial SPI External is the reference type. Supply Voltage - Max: 5.5 V Supply Voltage - Min: 2.7 V The minimum operating temperature of this product is - 40 C. The product can operate at a maximum temperature of + 85 C. The product can operate at a maximum temperature of SMD/SMT. SSOP-28 package/case type is utilized by this product. Tube packaging for easy dispensing The height of the product is 2 mm. The output type is Current. DAC - Current Output DACs This device belongs to the General Purpose type. Analog Devices is a trusted brand for quality electronics This product does not have a No Shutdown feature, ensuring continuous operation. DC1792A is a versatile development platform for hardware and software The 0.25 LSB, ensuring accurate and precise analog-to-digital conversion. 5 LSB is 0.2%. INL is within 0.5 LSB 0.0015 mW DACs - Digital to Analog Converters product type 47 of 100 Data Converter ICs as subcategory THD is as low as - 108 dB. 1. 0.015027 oz of Unit Weight

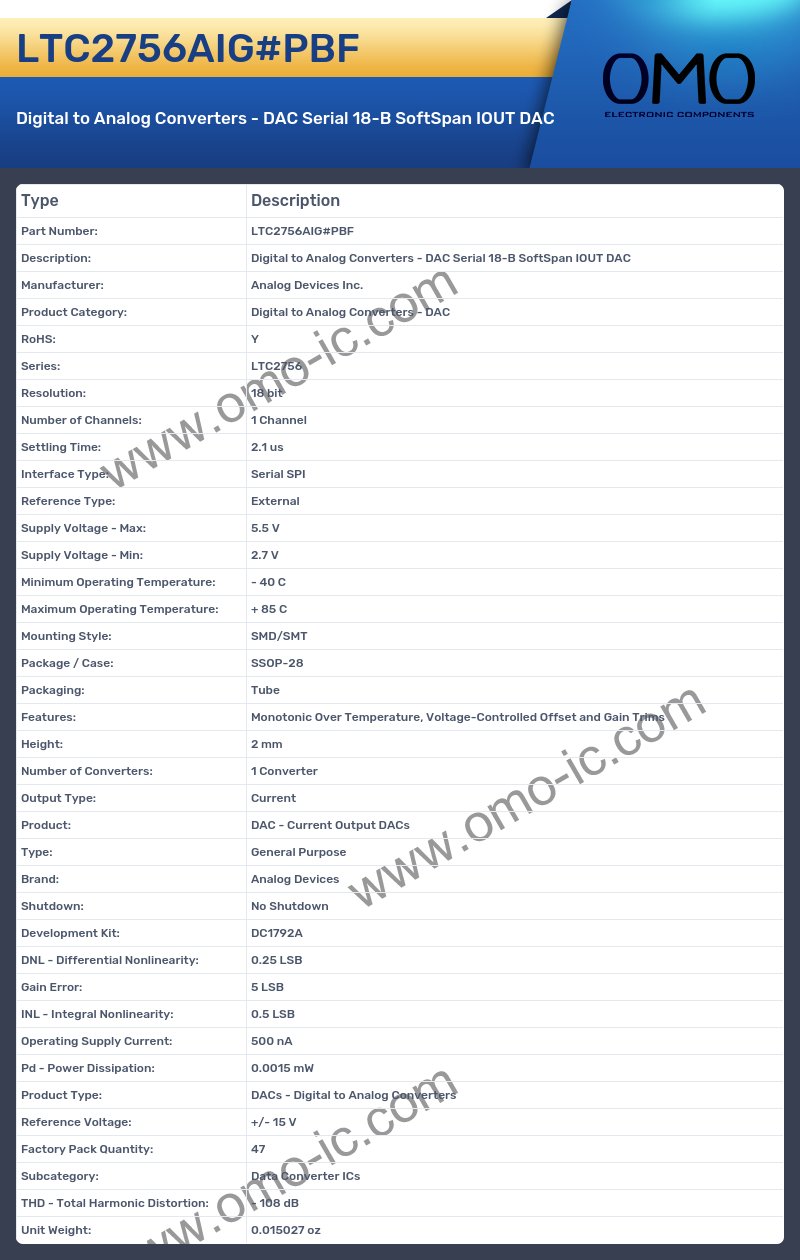

LTC2756AIG#PBF Image

LTC2756AIG#PBF Specifications

• Manufacturer: Analog Devices Inc.
• Product Category: Digital to Analog Converters - DAC
• RoHS: Y
• Series: LTC2756
• Resolution: 18 bit
• Number of Channels: 1 Channel
• Settling Time: 2.1 us
• Interface Type: Serial SPI
• Reference Type: External
• Supply Voltage - Max: 5.5 V
• Supply Voltage - Min: 2.7 V
• Minimum Operating Temperature: - 40 C
• Maximum Operating Temperature: + 85 C
• Mounting Style: SMD/SMT
• Package / Case: SSOP-28
• Packaging: Tube
• Features: Monotonic Over Temperature, Voltage-Controlled Offset and Gain Trims
• Height: 2 mm
• Number of Converters: 1 Converter
• Output Type: Current
• Product: DAC - Current Output DACs
• Type: General Purpose
• Brand: Analog Devices
• Shutdown: No Shutdown
• Development Kit: DC1792A
• DNL - Differential Nonlinearity: 0.25 LSB
• Gain Error: 5 LSB
• INL - Integral Nonlinearity: 0.5 LSB
• Operating Supply Current: 500 nA
• Pd - Power Dissipation: 0.0015 mW
• Product Type: DACs - Digital to Analog Converters
• Reference Voltage: +/- 15 V
• Factory Pack Quantity: 47
• Subcategory: Data Converter ICs
• THD - Total Harmonic Distortion: - 108 dB
• Unit Weight: 0.015027 oz
